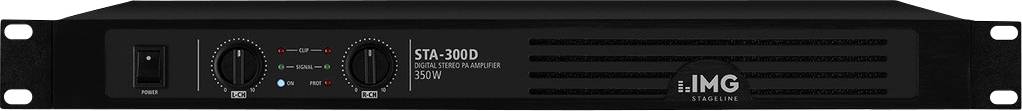

IMG Stageline STA-300D PA amplifier RMS power per channel (at 4 Ohm): 150 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 3.84 kg
- Frequency range 20-20000 Hz
- Width 482 mm
- Height: 52 mm
- Depth: 290 mm
- Ass. Operating temperature 0-40 °C
- Weight: 3.7 kg
- Gross weight: 4.75 kg
- Inputs 1 V/12 kΩ
- Distortion factor < 0.05 %
- Power supply: " 230 V/50 Hz/510 VA
- Rated power: 300 W
- Power consumption operation 510 VA
- Total output power: 350 W.

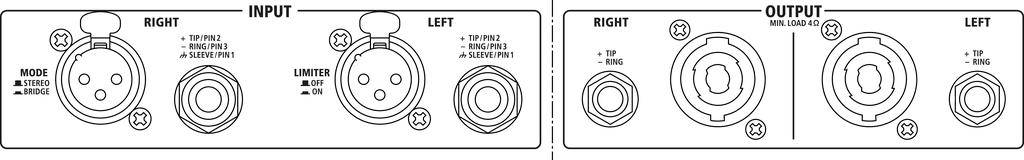

- 1 x 3-pin XLR L/R1 x 6.3 mm jack L/R1 x SPEAKER L/R
- Channels: 2
- Height units HE 1
- Power at 4 Ω 2 x 150 W
- Signal-to-noise ratio > 96 dB
- Mains voltage ~ 230 V
- Mains frequency 50 Hz
- Power at 8 Ω 2 x 100 W
- Power at 8 Ω bridge mode 1 x 300 W
- Integrated limiter: Yes
- Cross talk-attenuation > 70 dB
- Product type
PA amplifier
- Power per channel (4Ω)
150 W
- Power per channel (8Ω)
100 W
- Max. frequency
20000 Hz
- Min. frequency
20 Hz
- Interfaces
XLR in
6.3 mm jack in
- Weight
3.7 kg
- Width
48.2 cm
- Height
5.2 cm
- Length
29 cm
- Max. audio capacity
350 W
Documents & Downloads
Datasheet
Datasheet 3340721 IMG Stageline STA-300D PA amplifier RMS power per channel (at 4 Ohm): 150 W
User & Safety Instructions
User & Safety Instructions 3340721 IMG Stageline STA-300D PA amplifier RMS power per channel (at 4 Ohm): 150 W
Description
Stereo-PA-Class D amplifier
2 operating modes can be set (stereo or bridge) Limiter function can be switched 2 level regulator Temperature-controlled fan Protected against short-circuit, overheating and DC voltage overlay at the outputs through protective circuit with LED-display Pro channel LEDs for overload (clip) and signal
This text is machine translated.
2 operating modes can be set (stereo or bridge) Limiter function can be switched 2 level regulator Temperature-controlled fan Protected against short-circuit, overheating and DC voltage overlay at the outputs through protective circuit with LED-display Pro channel LEDs for overload (clip) and signal
This text is machine translated.
Features
- Output power
- Total: 350 W
- Rated power: 300 W
- Power at 4 Ω 2 x 150 W
- Power at 8 Ω 2 x 100 W
- Power at 8 Ω bridge mode 1 x 300 W
- Channels: 2
- Inputs 1 V/12 kΩ
- Frequency range 20-20000 Hz
- Integrated limiter: Yes
- Signal-to-noise ratio > 96 dB
- Cross talk-attenuation > 70 dB
- Distortion factor < 0.05 %
- Power supply: " 230 V/50 Hz/510 VA
- Mains voltage ~ 230 V
- Mains frequency 50 Hz
- Power consumption operation 510 VA
- Ass. Operating temperature 0-40 °C
- Width 482 mm
- Height: 52 mm
- Depth: 290 mm
- Height units HE 1
- Weight: 3.7 kg
- 1 x 3-pin XLR L/R;1 x 6.3 mm jack L/R;1 x SPEAKER L/R
- Packaging dimensions (W x H x L) 0.38 x 0.11 x 0.55 m
- Gross weight: 4.75 kg
- Net weight: 3.84 kg
