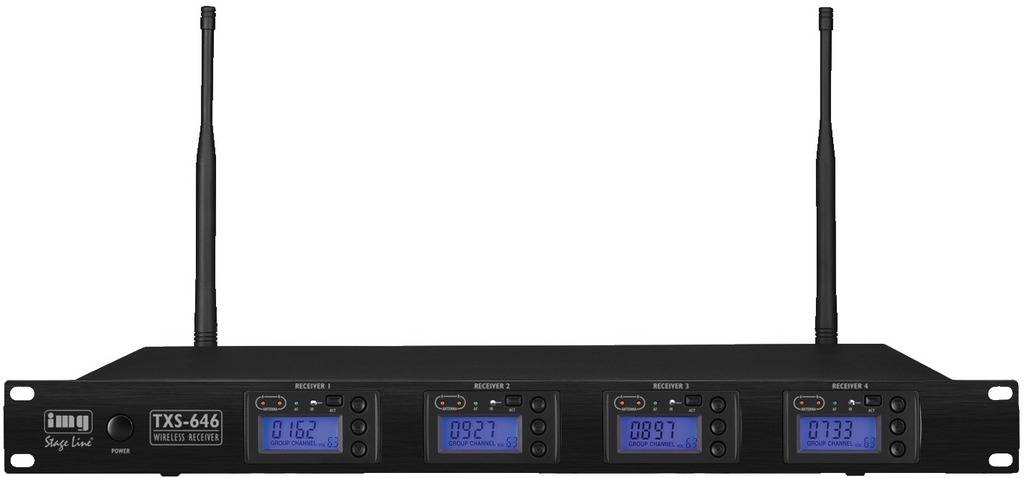

IMG Stageline TXS-646 Radio receiver
EAN:
Part number:
Item no:
Highlights & Details
IMG Stage Line TXS -646 receiver
- 1000 UHF frequencies per channel can be set (10 groups, each with 100 channels)
- ACT function to transfer the desired frequency to the pocket transmitter TXS-606 LT, TXS-606 HSE or hand-held microphone TXS-606 HT via infrared signal
- This text is machine translated.
Technical specifications
- Carrier frequency: 672,000-696 ,975 MHz
- HF-signal-to-noise ratio 105 dB
- Audio frequency range: 30 - -18000 Hz
- Distortion:< 0.5%
- Dynamic range: 120dB
- Audio output: 350 mV/600 Ohm (Jack) 25 mV/600 Ohm (XLR, balanced)
- Permissible operating temperature: 0-40°C
- Power supply: via suppl. plug power supply
- Dimensions: 482 x 45 x 310 mm
- Weighs 2.9 kg.
- Product type
Radio receiver
- Factory colour
Black
- Dim
(L x W x H) 310 x 482 x 45 mm
- Weight
2.9 kg
- Length
310 mm
- Width
482 mm
- Height
45 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332877 IMG Stageline TXS-646 Radio receiver
Information
Information 1332877 IMG Stageline TXS-646 Radio receiver
Description
Features
- 4-channel multi-frequency receiver unit with UHF PLL technology.
- 1000 UHF frequencies (672,000-696 ,975 MHz) per channel can be set (10 groups, each with 100 channels)
- ACT function to transfer the desired frequency to the pocket transmitter TXS-606 LT or hand-held microphone TXS-606 HT via infrared signal
- Automatic search function
- True Diversity System with removable antennas (BNC connection)
- Volume and squelch can be set per channel
- LCD display for group/channel, antenna A/B, RF reception level, AF audio level and additional LED display for audio signal per channel
- XLR output per channel, sym
- 6.3 mm jack output for mixed-signal
- Sturdy metal housing
- Power supply is included
- 482-mm-Rack Installation (19")
Scope of delivery
- mains adaptor.
