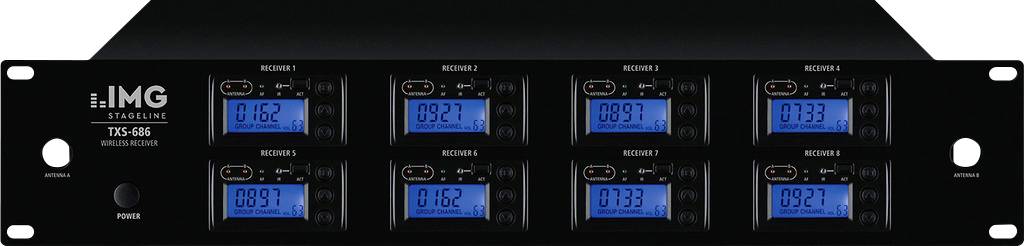

IMG Stageline TXS-686 UHF-PLL receiver
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 5.38 kg
- Ass. Operating temperature 0-40 °C
- Distortion factor < 0.5 %
- Channels: 8
- Type: Receiver unit
- Carrier frequency range 672.000 - 696.975 MHz
- Audio frequency range 30-18000 Hz
- General data: Missing value
- Recipient data: Missing Value
- Receiver power supply: Via enclosed power supply unit
- Wide receiver 482 mm
- Receiver height 90 mm
- Depth of receiver 310 mm
- Receiver weight 4.4 kg
- Dynamic 100 dB
- Audio signal receiver: 350 mV/600 Ω (jack)25 mV/600 Ω (XLR, sym.)
- Connections receiver: 8 x XLR, balanced ,1 x 6.3 mm jack, unbalanced
- 105 dB HF signal-to-noise ratio
- Product type
UHF-PLL receiver
- Dim
(W x H x D) 482 x 90 x 310 mm
- Weight
4.4 kg
- Width
482 mm
- Height
90 mm
- No. of frequencies (adjustable)
1000
- Channels
8
- Rack unit
2 U
- Depth
310 mm
- Interfaces
XLR out
- No of. XLR outputs
8 x
Documents & Downloads
Datasheet
Datasheet 3340571 IMG Stageline TXS-686 UHF-PLL receiver
User & Safety Instructions
User & Safety Instructions 3340571 IMG Stageline TXS-686 UHF-PLL receiver
Description
8-channel multi-frequency receiver unit
With UHF PLL technology
1000 UHF frequencies (672.000-696.975 MHz) can be set per channel (10 groups with 100 channels each) ACT function for the transmission of the selected frequency to the pocket transmitter TXS-606HSE/2, tie microphone transmitter TXS-606LT/2, table microphone transmitter TXS-606DT/2 or hand microphone TXS-held microphone TXS-606HT/2 via infrared signal Automatic search True-Diversity system with removable antennas (BNC connection), squelch channel display per channel, volume control, LCD display per channel NF-Audio level and additional LED-display for antenna A/B, audio signal per channel XLR-output per channel, balanced. 6.3-mm jack output for mixed signal 8-V supply voltage for active antennas or antenna amplifiers available Sturdy metal housing power supply is delivered 482-mm rack installation (19"), 2 HE
There are restrictions or requirements in the EU!
Please refer to the wireless INFORMATION in the section "IMPORTANT INFORMATION"!
This text is machine translated.
With UHF PLL technology
1000 UHF frequencies (672.000-696.975 MHz) can be set per channel (10 groups with 100 channels each) ACT function for the transmission of the selected frequency to the pocket transmitter TXS-606HSE/2, tie microphone transmitter TXS-606LT/2, table microphone transmitter TXS-606DT/2 or hand microphone TXS-held microphone TXS-606HT/2 via infrared signal Automatic search True-Diversity system with removable antennas (BNC connection), squelch channel display per channel, volume control, LCD display per channel NF-Audio level and additional LED-display for antenna A/B, audio signal per channel XLR-output per channel, balanced. 6.3-mm jack output for mixed signal 8-V supply voltage for active antennas or antenna amplifiers available Sturdy metal housing power supply is delivered 482-mm rack installation (19"), 2 HE
There are restrictions or requirements in the EU!
Please refer to the wireless INFORMATION in the section "IMPORTANT INFORMATION"!
This text is machine translated.
Features
- Type: Receiver unit
- Carrier frequency range 672.000 - 696.975 MHz
- Audio frequency range 30-18000 Hz
- Channels: 8
- Distortion factor < 0.5 %
- Dynamic 100 dB
- 105 dB HF signal-to-noise ratio
- Ass. Operating temperature 0-40 °C
- Audio signal receiver 350 mV/600 Ω (jack);25 mV/600 Ω (XLR
- sym.)
- Power supply receiver: Via included;power supply unit
- Wide receiver 482 mm
- Receiver height 90 mm
- Depth of receiver 310 mm
- Receiver weight 4.4 kg
- Receiver connections 8 x XLR
- Bal.,;1 x 6.3-mm jack
- /unbalanced
