IMG Stageline WAVE-08A Active PA speaker 20 cm 8 inch 80 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

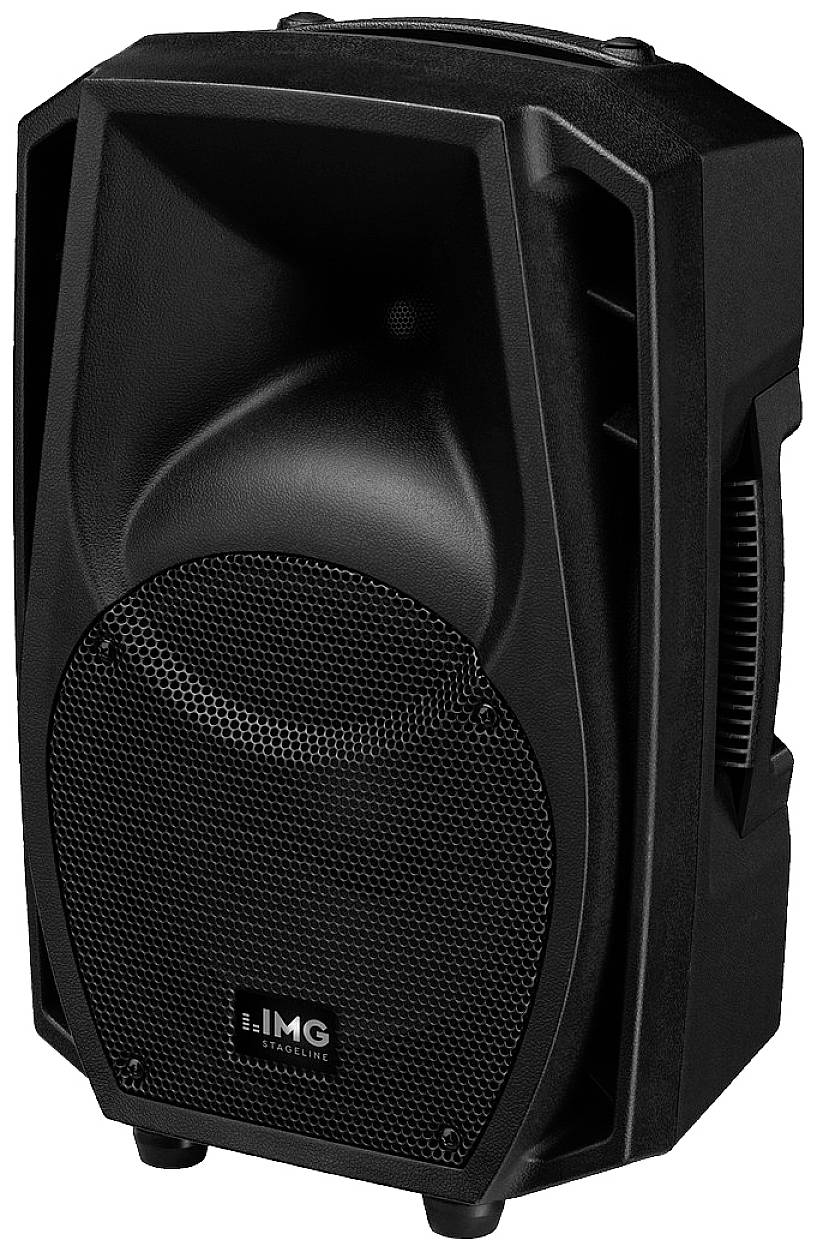

IMG Stageline WAVE-08A active full-range loudspeaker box, 150 W.
- RMS power:80 W
- Max. power:150 W
- 8 inch
- 116 dB
Technical specifications

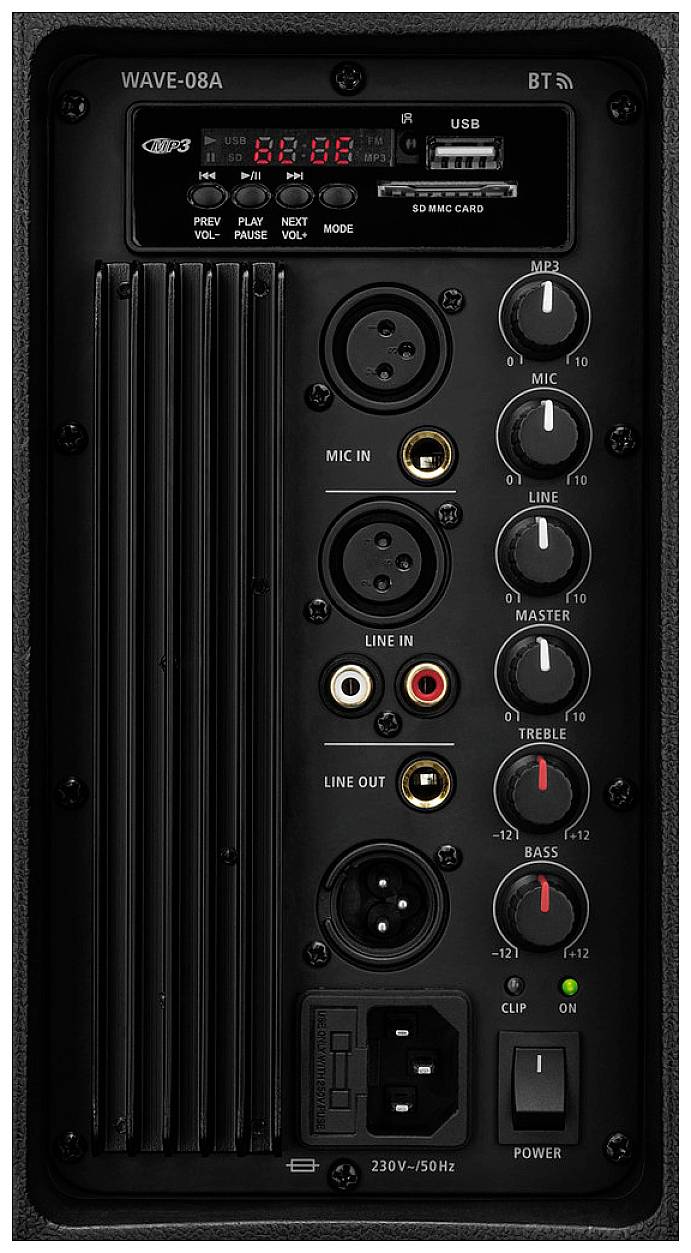

- Input signal: 250 mV/7 kΩ (Line, XLR, bal.), 150 mV/16 kΩ (Line, RCA), 9.5 mV/0.8 kΩ (Mic, XLR, bal.), 9.5 mV/0.8 kΩ (Mic, 6.3 mm jack)System: 8/2-full range bass reflexWoofer : 20 cm woofer (8")Tweeter : 25 mm horn tweeter (1")Number of built-in LS chassis: 2Sound pressure 95 dB/W/mHorizontal angle of radiation 90°Vertical beam angle 60°Housing material : PlasticMounting device: M8 threaded inserts, stand sleevePower supply : ~ 230 V/50 Hz/160 VAInputs : XLR or RCA L/R (Line), XLR or 6.3 mm jack (Mic)Outputs : XLR, bal. (Parallel line-out)
- Product type
Active PA speaker
- Type
Active, wired + wireless (Bluetooth)
- RMS power
80 W
- Max. power
150 W
- Speaker size (cm)
20 cm
- Speaker size (inch)
8 inch
- Max. sound pressure
116 dB
- Interfaces
XLR out
XLR in
- Features
Bluetooth
- Dim
(W x H x D) 260 x 420 x 210 mm
- Frequency range
65 - 20000 Hz
- Weight
7.3 kg
- Content
1 pc(s)
- Width
260 mm
- Height
420 mm
- Depth
210 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2584168 IMG Stageline WAVE-08A Active PA speaker 20 cm 8 inch 80 W 1 pc(s)
Description
The Wave series PA speaker boxes are impressive with good sound and an attractive price. They are the ideal starting equipment for the DJ and are suitable for small to medium-sized function rooms. The modern plastic housing is also light and easy to handle, ideal for mobile use.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x WAVE-08A active full-range loudspeaker box
