IMG Stageline WAVE-10A Active PA speaker 25 cm 10 inch 150 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
IMG Stageline WAVE-10A active full-range loudspeaker box, 300 W.
- RMS power:150 W
- Max. power:300 W
- 10 inch
- 119 dB
Technical specifications

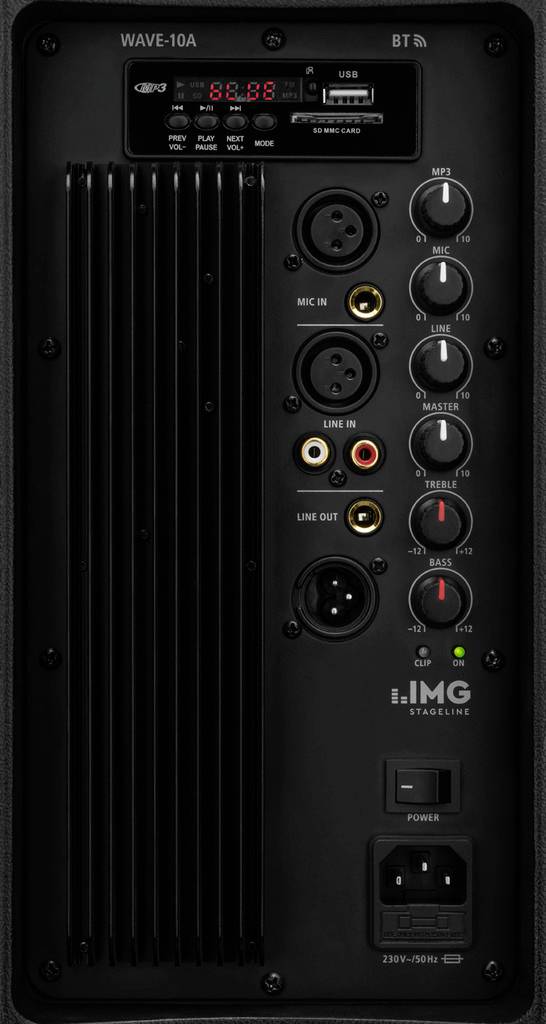

- Input signal: 250 mV/7 kΩ (Line, XLR, bal.), 150 mV/16 kΩ (Line, RCA), 9.5 mV/0.8 kΩ (Mic, XLR, bal.), 9.5 mV/0.8 kΩ (Mic, 6.3 mm jack)System : 10/2-full range bass reflexWoofer : 25 cm woofer (10")Tweeter : 25 mm horn tweeter (1")Number of built-in LS chassis: 2Sound pressure 95 dB/W/mHorizontal angle of radiation 90°Vertical beam angle 60°Housing material : PlasticMounting device: M8 threaded inserts, stand sleevePower supply : ~ 230 V/50 Hz/270 VAInputs : XLR or RCA L/R (Line), XLR or 6.3 mm jack (Mic)Outputs : XLR, bal. (Parallel line-out)
- Product type
Active PA speaker
- Type
Active, wired + wireless (Bluetooth)
- RMS power
150 W
- Max. power
300 W
- Speaker size (cm)
25 cm
- Speaker size (inch)
10 inch
- Max. sound pressure
119 dB
- Interfaces
XLR out
XLR in
- Features
Bluetooth
- Dim
(W x H x D) 300 x 510 x 250 mm
- Frequency range
60 - 20000 Hz
- Weight
9.4 kg
- Content
1 pc(s)
- Width
300 mm
- Height
510 mm
- Depth
250 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2584169 IMG Stageline WAVE-10A Active PA speaker 25 cm 10 inch 150 W 1 pc(s)
Description
The Wave series PA speaker boxes are impressive with good sound and an attractive price. They are the ideal starting equipment for the DJ and are suitable for small to medium-sized function rooms. The modern plastic housing is also light and easy to handle, ideal for mobile use.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x WAVE-10A active full-range loudspeaker box
