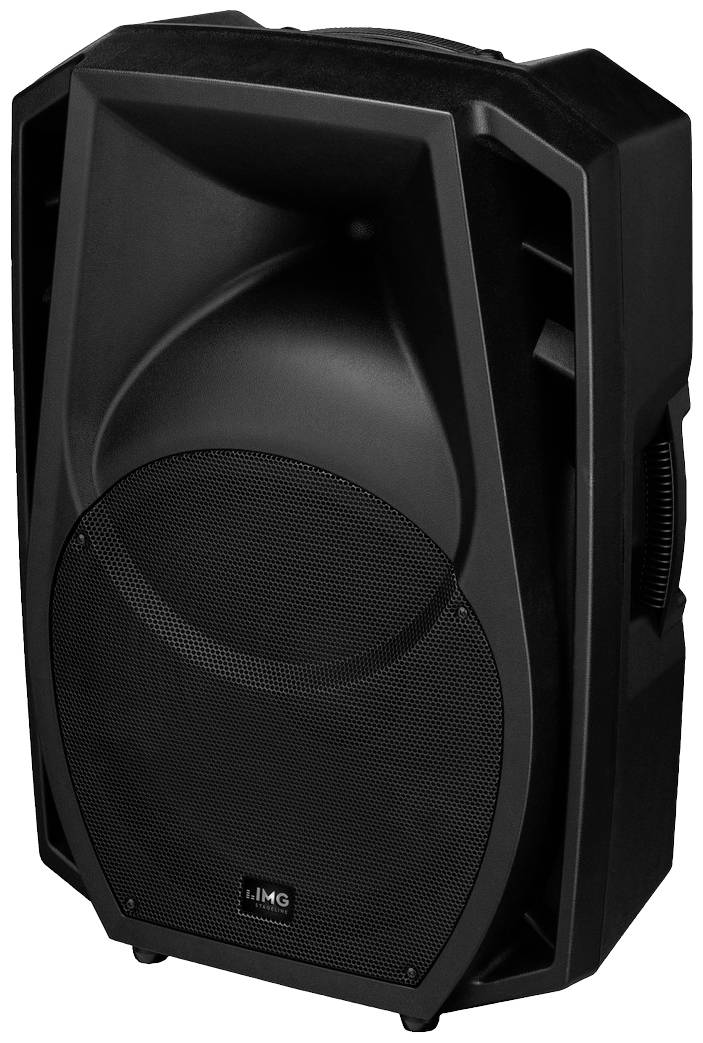

IMG Stageline WAVE-15A Active PA speaker 38 cm 15 inch 250 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
IMG Stageline WAVE-15A active full-range loudspeaker box, 400 W.
- RMS power:250 W
- Max. power:400 W
- 15 inch
- 120 dB
Technical specifications
- Input signal: 250 mV/7 kΩ (Line, XLR, bal.), 150 mV/16 kΩ (Line, RCA), 9.5 mV/0.8 kΩ (Mic, XLR, bal.), 9.5 mV/0.8 kΩ (Mic, 6.3 mm jack)System : 15/2-full range bass reflexWoofer : 38 cm woofer (15")Tweeter : 25 mm horn tweeter (1")Number of built-in LS chassis: 2Sound pressure 95 dB/W/mHorizontal angle of radiation 90°Vertical beam angle 60°Housing material : PlasticMounting device: M8 threaded inserts, stand sleevePower supply : ~ 230 V/50 Hz/410 VAInputs : XLR or RCA L/R (Line), XLR or 6.3 mm jack (Mic)Outputs : XLR, bal. (Parallel line-out)
- Product type
Active PA speaker
- Type
Active, wired + wireless (Bluetooth)
- RMS power
250 W
- Max. power
400 W
- Speaker size (cm)
38 cm
- Speaker size (inch)
15 inch
- Max. sound pressure
120 dB
- Interfaces
XLR out
XLR in
- Features
Bluetooth
- Dim
(W x H x D) 460 x 710 x 380 mm
- Frequency range
50 - 20000 Hz
- Weight
18.6 kg
- Content
1 pc(s)
- Width
460 mm
- Height
710 mm
- Depth
380 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2584171 IMG Stageline WAVE-15A Active PA speaker 38 cm 15 inch 250 W 1 pc(s)
Description
The Wave series PA speaker boxes are impressive with good sound and an attractive price. They are the ideal starting equipment for the DJ and are suitable for small to medium-sized function rooms. The modern plastic housing is also light and easy to handle, ideal for mobile use.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x WAVE-15A active full-range loudspeaker box
