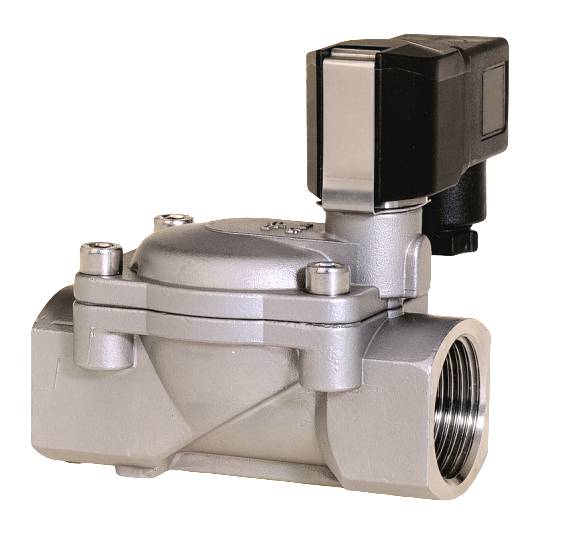

IMI NORGREN Magnetic valve 8273200.9101.02400 24 V DC G 1/2 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
14-day return policy included
Technical specifications
- Product type
Magnetic valve
- Operating voltage
24 V DC
- Max. operating pressure
16 bar
- Enclosure material
Stainless steel
- Connection
G 1/2
- Operating temperature
-10 °C (min)
- Media temperature (range)
-10 up to +90 °C
- Manufacturer part #
8273200.9101.02400
- Operating pressure (min.)
0.1 bar
- Min. operating temperature
-10 °C
- Max. media temperature
+90 °C
- Media temperature (min.)
-10 °C
- Width
81 mm
- Height
70 mm
- Length
44 mm
IP65
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-10 °C
- Flow (max.)
3.8 m³/h
Documents & Downloads
Datasheet
Datasheet 3296998 IMI NORGREN Magnetic valve 8273200.9101.02400 24 V DC G 1/2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3296998 IMI NORGREN Magnetic valve 8273200.9101.02400 24 V DC G 1/2 1 pc(s)
Description
Magnetic valve with stainless steel differential pressure in G1/2
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
