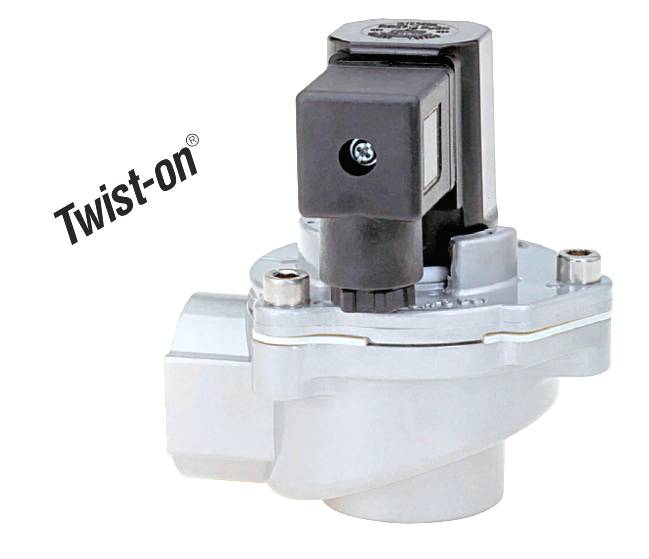

IMI NORGREN Magnetic valve 8296400.8176.02400 24 V DC G 1 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
14-day return policy included
Technical specifications
- Product type
Magnetic valve
- Operating voltage
24 V DC
- Max. operating pressure
8 bar
- Enclosure material
Aluminium (die-cast)
- Connection
G 1
- Operating temperature
-20 °C (min)
- Media temperature (range)
-20 up to +85 °C
- Manufacturer part #
8296400.8176.02400
- Operating pressure (min.)
0.4 bar
- Min. operating temperature
-20 °C
- Max. media temperature
+85 °C
- Media temperature (min.)
-20 °C
- Width
105 mm
- Height
95 mm
- Length
80 mm
IP65
- Max. ambient temperature
+85 °C
- Min. ambient temperature
-20 °C
- Flow (max.)
22 m³/h
Documents & Downloads
Datasheet
Datasheet 3297001 IMI NORGREN Magnetic valve 8296400.8176.02400 24 V DC G 1 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3297001 IMI NORGREN Magnetic valve 8296400.8176.02400 24 V DC G 1 1 pc(s)
Description
Magnetically actuated dust filter valve made of aluminum in G1
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
