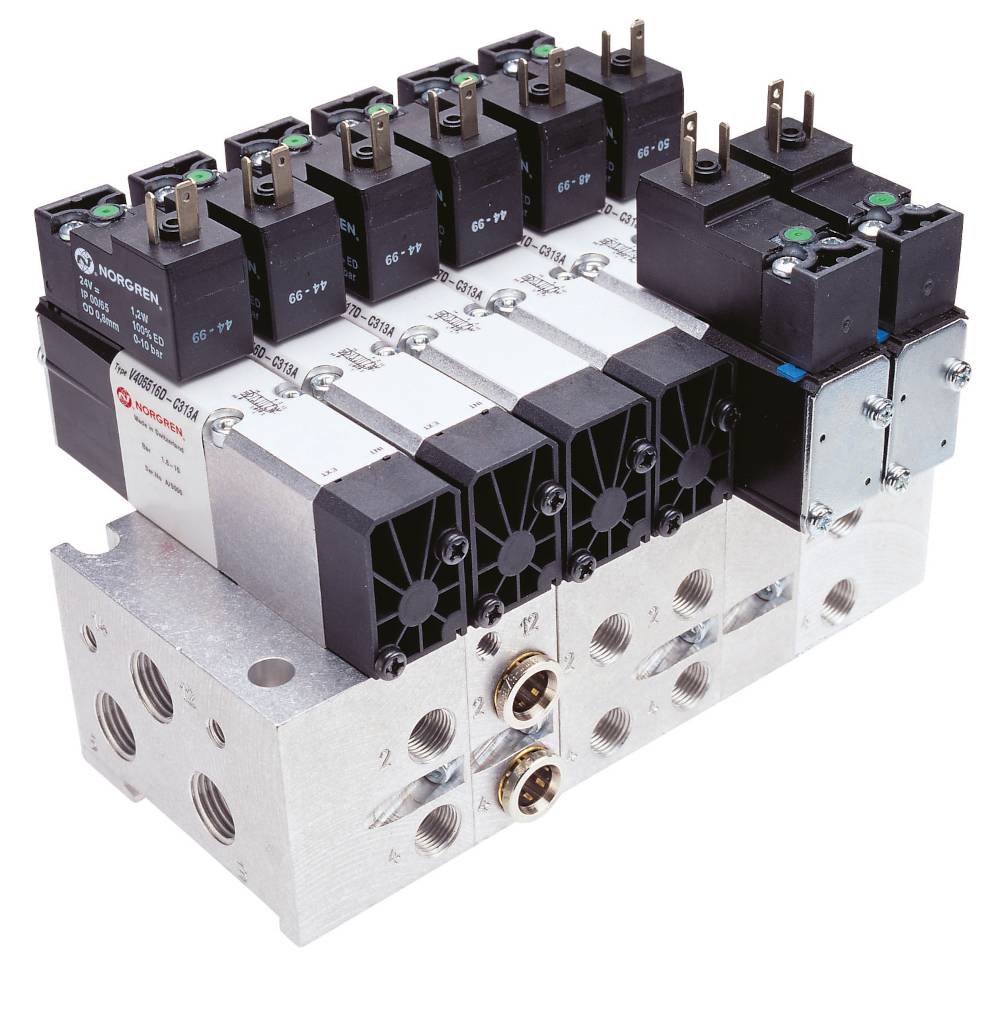

Image similar
Image similar
IMI NORGREN Magnetic valve V415A11D-C313A 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 142.85 / piece)
€ 142.85
plus VAT.
14-day return policy included
Technical specifications
- Product type
Magnetic valve
- Operating voltage
24 V DC
- Max. operating pressure
10 bar
- Enclosure material
Aluminium (die-cast)
- Operating temperature
-15 °C (min)
- Manufacturer part #
V415A11D-C313A
- Operating pressure (min.)
2.5 bar
- Min. operating temperature
-15 °C
- Width
18.5 mm
- Height
77.5 mm
- Length
115 mm
IP65
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-15 °C
- Flow (max.)
610 l/min
Documents & Downloads
Datasheet
Datasheet 3297037 IMI NORGREN Magnetic valve V415A11D-C313A 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3297037 IMI NORGREN Magnetic valve V415A11D-C313A 24 V DC 1 pc(s)
Description
Mini ISO valve
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
