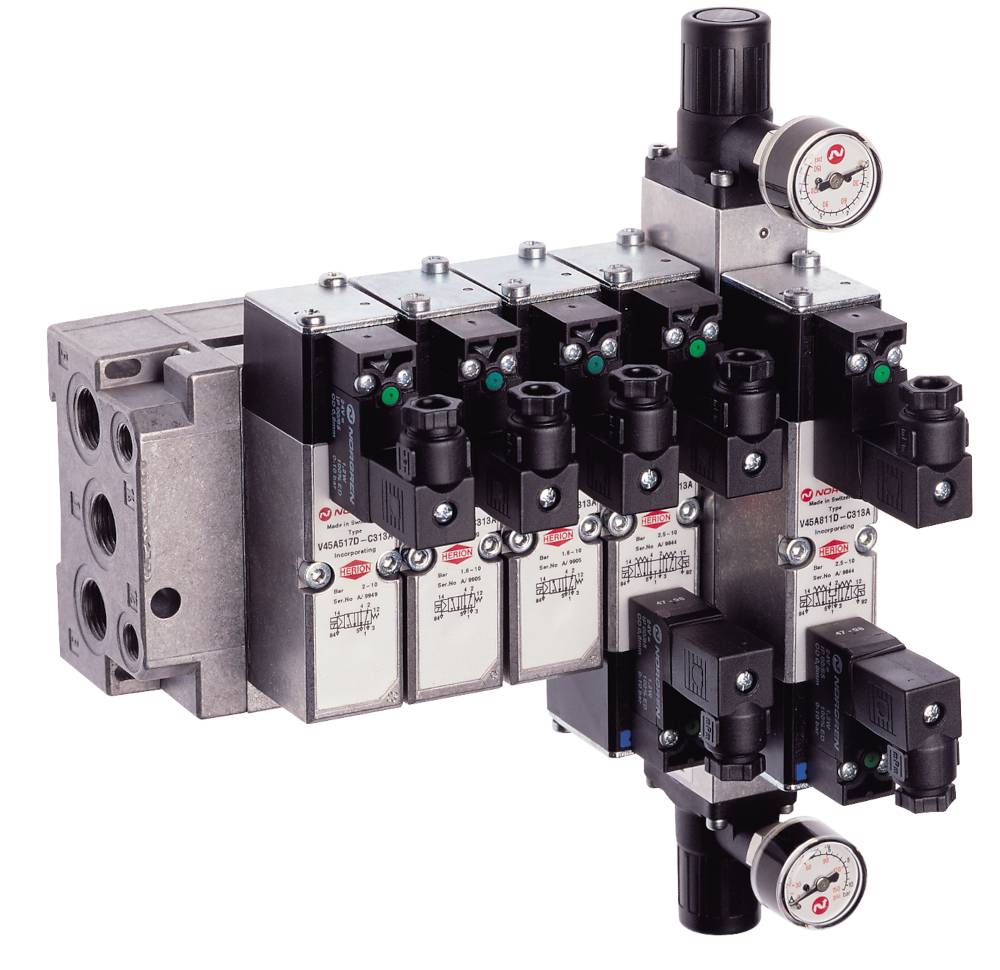

Image similar
Image similar
IMI NORGREN Magnetic valve V44A533A-X0020 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
14-day return policy included
Technical specifications
- Product type
Magnetic valve
- Max. operating pressure
16 bar
- Enclosure material
Aluminium (die-cast)
- Manufacturer part #
V44A533A-X0020
- Operating pressure (min.)
0.9 bar
- Width
26.7 mm
- Height
39 mm
- Length
130 mm
IP65
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-15 °C
- Flow (max.)
900 l/min
Documents & Downloads
Datasheet
Datasheet 3297047 IMI NORGREN Magnetic valve V44A533A-X0020 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3297047 IMI NORGREN Magnetic valve V44A533A-X0020 1 pc(s)
Description
Mini ISO valve
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
