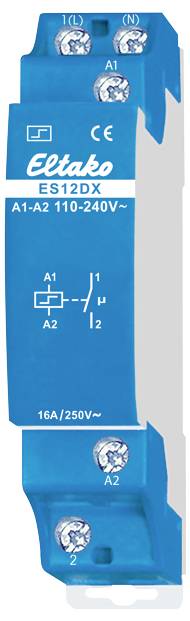

Impulse changeover switch DIN rail Eltako ES12DX/110-240V 1 maker 16 A 2000 W Piece 1 pc(s)

1 closer potential-free 16A/250V AC, 230V-LED-lamps up to 600W, bulbs 2000W. No standby loss. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18 mm wide, 58 mm deep. With the patented Eltako duplex technology (DX) the normally floating contacts can still switch to zero point when switching from 230V alternating voltage 50Hz and thus reduce the wear and tear drastically. Simply connect the N conductor to terminal (N) and L to 1(L). This results in a standby loss of only 0.1 watts. If the contact is used to control switching devices which do not switch in the zero-crossing mode, (N) should not be connected, as the additional closing delay otherwise causes the opposite. Control voltage 110V AC - 240V AC at control input A1/A2. Very low switching noise. No continuous power supply is required, so no loss in standby mode. Most modern hybrid technology combines the advantages of wear-free electronic control with the high output of special relays. The use of a bi-stable relay means that even when switched on, there is no coil power loss and no heat up through it. The relay contact can be open or closed upon commissioning and is synchronized upon first operation. The terminal assignment is identical to the electromechanical surge switch S12-100-. If this surge current switch is located in a circuit which is monitored by a field isolator FR12-230V, no additional base load is required. However, the monitoring voltage of the FR12-230V must be set to max and the control is only performed via A1-A2.

This text is machine translated.
