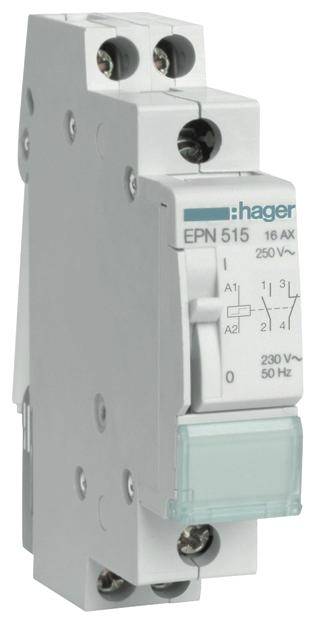

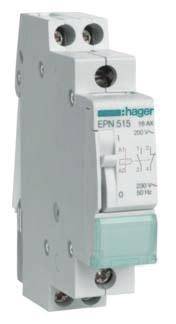

Impulse changeover switch DIN rail Hager EPN515 1 maker, 1 breaker 230 V AC, 110 V DC 16 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Impulse changeover switch
Operating voltage
230 V AC
110 V DC
Contact type
1 maker
1 breaker
Switching voltage (max.)
230 V AC
110 V DC
Switching current (max.)
16 A
Datasheet (PDF)
Technical specifications
- Product type
Impulse changeover switch
- Type
EPN515
- Operating voltage
230 V AC
110 V DC
- Contact type
1 maker
1 breaker
- Switching voltage (max.)
230 V AC
110 V DC
- Switching current (max.)
16 A
- Mounting type
DIN rail
- Content
1 pc(s)
- Weight
0.15
DIN rail
Mechanical switch
63 mm
17.5
AC
1
1
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194181 Impulse changeover switch DIN rail Hager EPN515 1 maker, 1 breaker 230 V AC, 110 V DC 16 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194181 Impulse changeover switch DIN rail Hager EPN515 1 maker, 1 breaker 230 V AC, 110 V DC 16 A 1 pc(s)
Description
Remote switch 1 closer and 1 opener 230V AC 110V DC 16A 1PLE. Remote switch as per DIN EN 60669-1 (VDE 0632-1) and DIN EN 60669-2-2 (VDE 0632-2-2) for pulse control with display of contact position, manual control, label option directly on the device and suitable for subsequent installation of additional equipment.
