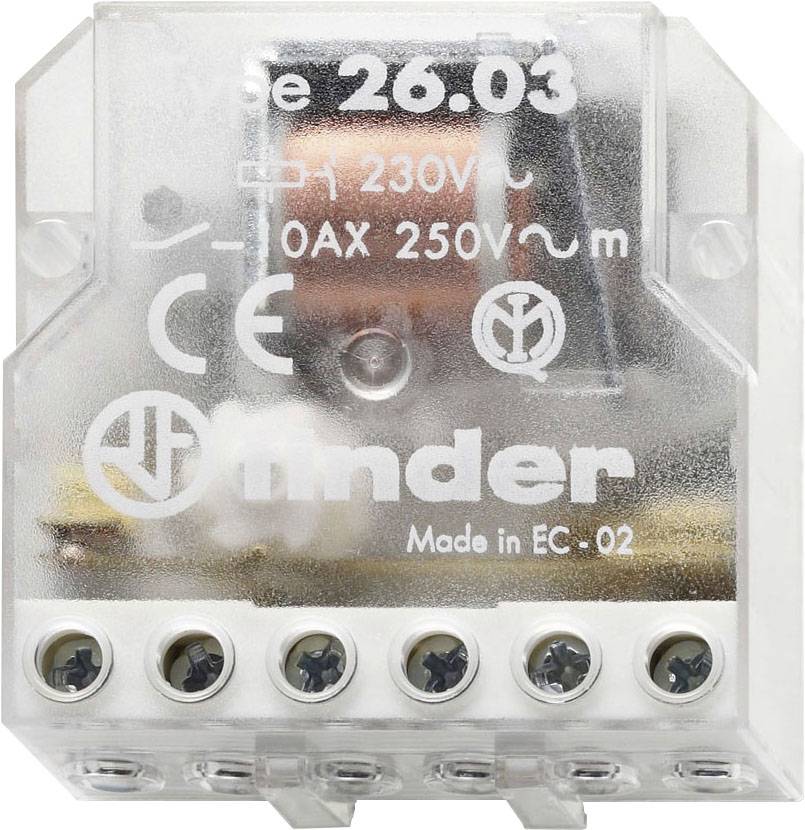

Impulse changeover switch Flush mount Finder 26.03.8.110.0000 1 breaker, 1 maker 110 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Impulse changeover switch
Operating voltage
110 V AC
Contact type
1 breaker
1 maker
Mounting type
Flush mount
Type
26.03.8.110.0000
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Technical specifications
- Function: Mechanical switch
- Mounting depth: 22 mm
- Frequency of control voltage: 50 Hz
- Max. Switching current (cos phi = 0.6): 5 A.
- Max. Incandescent lamp load 800 W.
- Max. Fluorescent lamp load 400 VA
- Max. Fluorescent lamp load (Duo-circuit): 400 VA
- Max. Fluorescent lamp load (compensated in parallel): 360 VA
- Product type
Impulse changeover switch
- Type
26.03.8.110.0000
- Operating voltage
110 V AC
- Permanent current (max.)
10 A
- Contact type
1 breaker
1 maker
- Mounting type
Flush mount
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2474753 Impulse changeover switch Flush mount Finder 26.03.8.110.0000 1 breaker, 1 maker 110 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2474753 Impulse changeover switch Flush mount Finder 26.03.8.110.0000 1 breaker, 1 maker 110 V AC 1 pc(s)
Description
Surge current switch for mounting in flush-mounted socket or on chassis, 1 NO contact and 1 NC contact for 10 A / 250 V AC, max. switching power at 230 V AC: AC1 2500 VA, AC15 500 VA, incandescent and halogen lamps 800 W, compensated fluorescent lamps 360 W, uncompensated fluorescent lamps 400 W, energy-saving lamps 200 W, LED (230 V AC) 200 W, NV halogen lamps or LED with EVG 200 W, NV halogen lamps or LED with KVG 400 W, switching sequence: Off on/off, contact material AgNi, coil data 110 V AC, 4.5 VA, 1500 Ohm, relay protection type IP 20
