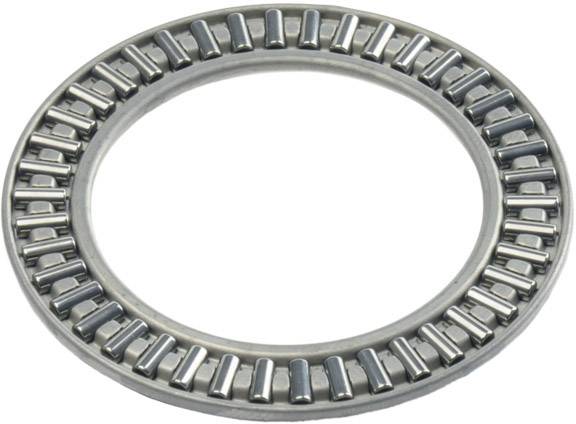

INA Axial bearing cages AXK3552-A/0-10
EAN:
Part number:
Item no:
Product type
Axial bearing cages
Bore Ø
52 mm
Outside Ø
35 mm
Type
AXK3552-A/0-10
Manufacturer part #
AXK3552-A/0-10
Technical specifications
- Type
AXK3552-A/0-10
- Product type
Axial bearing cages
- Manufacturer part #
AXK3552-A/0-10
- Bore Ø
52 mm
- Outside Ø
35 mm
- Dim
(Ø x L) 35 mm x 35 mm
- Rotational speed (max.)
6500 U/min
- Width
2 mm
- Length
35 mm
- (Ø)
35 mm
- Dynamic load rating (axial)
17800 N
- Static load rating (axial)
81000 N
- Inside diameter
52 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1890324 INA Axial bearing cages AXK3552-A/0-10
Description
AXK axial bearing cages, according to DIN 5 405-2
AXK Axial needle cages are made of plastic or metal axial cages with integrated needle rollers and have a very low axial height. The cages support high axial forces in one direction. Radial loads must be recorded separately. Axial needle cages assume that hardened and ground start-up areas as career can be used.
Suffix: TV = plastic cage · A = Standard.
This text is machine translated.
AXK Axial needle cages are made of plastic or metal axial cages with integrated needle rollers and have a very low axial height. The cages support high axial forces in one direction. Radial loads must be recorded separately. Axial needle cages assume that hardened and ground start-up areas as career can be used.
Suffix: TV = plastic cage · A = Standard.
This text is machine translated.
