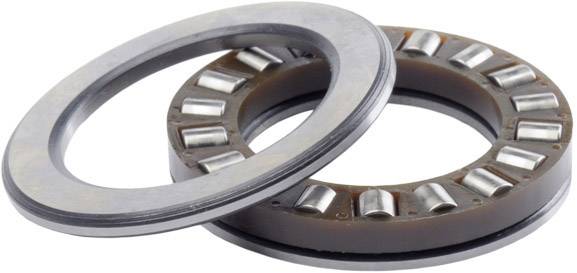

INA Axial cylindrical roller bearing 89318-M
EAN:
Part number:
Item no:
Product type
Axial cylindrical roller bearing
Bore Ø
155 mm
Outside Ø
90 mm
Type
89318-M
Manufacturer part #
89318-M
Technical specifications
- Type
89318-M
- Product type
Axial cylindrical roller bearing
- Manufacturer part #
89318-M
- Bore Ø
155 mm
- Outside Ø
90 mm
- Dim
(Ø x L) 90 mm x 90 mm
- Rotational speed (max.)
2310 U/min
- Weight
1.683 kg
- Width
39 mm
- Length
90 mm
- (Ø)
90 mm
- Dynamic load rating (axial)
335000 N
- Static load rating (axial)
1200000 N
- Inside diameter
155 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1890276 INA Axial cylindrical roller bearing 89318-M
Description
Axial cylindrical roller bearing, single direction, according to DIN 616/ISO 104. Axial cylindrical roller bearings consist of axial cylindrical roller and cage assemblies K, Housing locating washers GS and Wave Washers WS.
Do you have a particularly low axial height, axial in one direction and have a high stiffness.
The bearings of the series 894 are equipped as standard with a two-row and plastic cage.
Suffix:
TV = plastic cage
M = brass cage
This text is machine translated.
Do you have a particularly low axial height, axial in one direction and have a high stiffness.
The bearings of the series 894 are equipped as standard with a two-row and plastic cage.
Suffix:
TV = plastic cage
M = brass cage
This text is machine translated.
