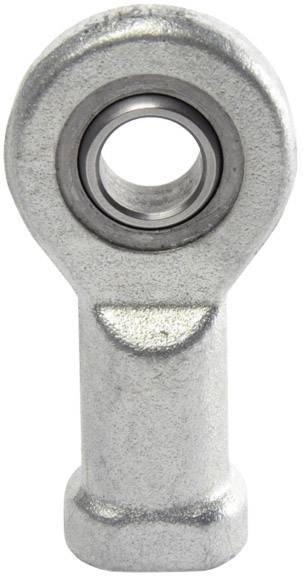

Image similar
Image similar
INA GAR17-UK Swivel head Composite materials Bore diameter 17 mm
EAN:
Part number:
Item no:
Enclosure material
Composite materials
External thread
M16
Bore Ø
17 mm
Product type
Swivel head
Type
GAR17-UK
Technical specifications
- Maintenance-free, right-handed thread
- Type
GAR17-UK
- Dim
(Ø x L) 46 mm x 92 mm
- Weight
0.21 kg
- (Ø)
46 mm
- Length
92 mm
- Width
46 mm
- Dimensions
17x46x92 mm
- Inside diameter
17 mm
- Enclosure material
Composite materials
- External thread
M16
- Bore Ø
17 mm
- Dynamic load rating (radial)
22400 N
- Outside Ø
46 mm
- Radial load rating
56500 N
- UKCA
yes
- Product type
Swivel head
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1850997 INA GAR17-UK Swivel head Composite materials Bore diameter 17 mm
Description
Swivel heads with external thread, maintenance-free according to DIN ISO 12 240-4, right-handed thread
The different versions are marked by so-called suffix: UK = PTFE-composite material
This text is machine translated.
The different versions are marked by so-called suffix: UK = PTFE-composite material
This text is machine translated.
Hints
Similar product shown
