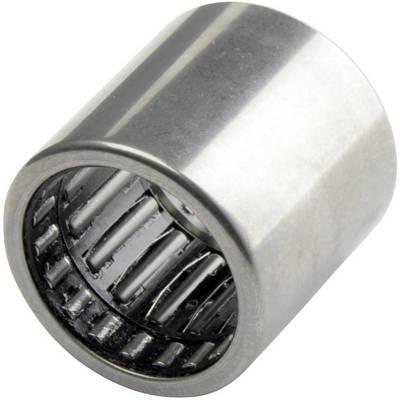

INA HK1015-B Cup needle roller bearing 10 mm 14 mm 15 mm
EAN:
Part number:
Item no:
Technical specifications
- 24300 rpm
- Product type
Cup needle roller bearing
- Inside diameter
10 mm
- Width
15 mm
- Outside Ø
14 mm
- Content
1 pc(s)
- Length
15 mm
- Bore Ø
10 mm
- Dynamic load rating (radial)
6800 N
- Radial load rating
8800 N
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1849038 INA HK1015-B Cup needle roller bearing 10 mm 14 mm 15 mm
Description
HK needle roller bearings according to DIN 618-1/ISO 3 245
Needle roller bearings and needle sockets are needle minimum radial height. They consist of formed, thin-walled outer sleeve and needle roller and cage assemblies, which together form an assembly.
These bearings allow particularly space-saving and easy-to-install bearings with high radial load carrying capacity.
Needle roller bearings are on both sides open and are supplied with needle roller and cage assemblies or vollnadelig. Bearings with needle roller and cage assemblies to vollnadeligen versions higher speeds.
Vollnadelige needle roller bearings have the maximum number of needle rollers highest load capacity in the smallest space. Your use at high speeds is however limited.
This text is machine translated.
Needle roller bearings and needle sockets are needle minimum radial height. They consist of formed, thin-walled outer sleeve and needle roller and cage assemblies, which together form an assembly.
These bearings allow particularly space-saving and easy-to-install bearings with high radial load carrying capacity.
Needle roller bearings are on both sides open and are supplied with needle roller and cage assemblies or vollnadelig. Bearings with needle roller and cage assemblies to vollnadeligen versions higher speeds.
Vollnadelige needle roller bearings have the maximum number of needle rollers highest load capacity in the smallest space. Your use at high speeds is however limited.
This text is machine translated.
