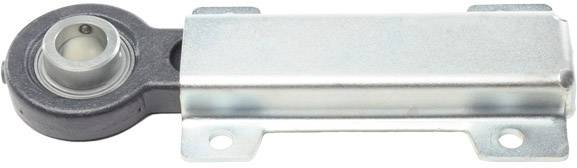

INA Housed bearing unit PHUSE30
EAN:
Part number:
Item no:
Product type
Housed bearing unit
Bore Ø
30 mm
Outside Ø
103 mm
Type
PHUSE30
Manufacturer part #
PHUSE30
Technical specifications
- Gray cast iron and steel housing, bearing with eccentric clamping ring, P-sealing
- Type
PHUSE30
- Product type
Housed bearing unit
- Manufacturer part #
PHUSE30
- Bore Ø
30 mm
- Outside Ø
103 mm
- Dim
(Ø x L) 35.7 mm x 187 mm
- Weight
2220 g
- Width
88 mm
- Length
187 mm
- (Ø)
35.7 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1849991 INA Housed bearing unit PHUSE30
Description
INA housing units are available as plummer block, flanged bearing and clamping housing units.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
PHUSE series are bearing housing units made of cast iron and steel sheet with eccentric clamping ring and P-sealing the lifetime lubricated.
Suffix: N = groove inst oak in housing for protective caps
This text is machine translated.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
PHUSE series are bearing housing units made of cast iron and steel sheet with eccentric clamping ring and P-sealing the lifetime lubricated.
Suffix: N = groove inst oak in housing for protective caps
This text is machine translated.
