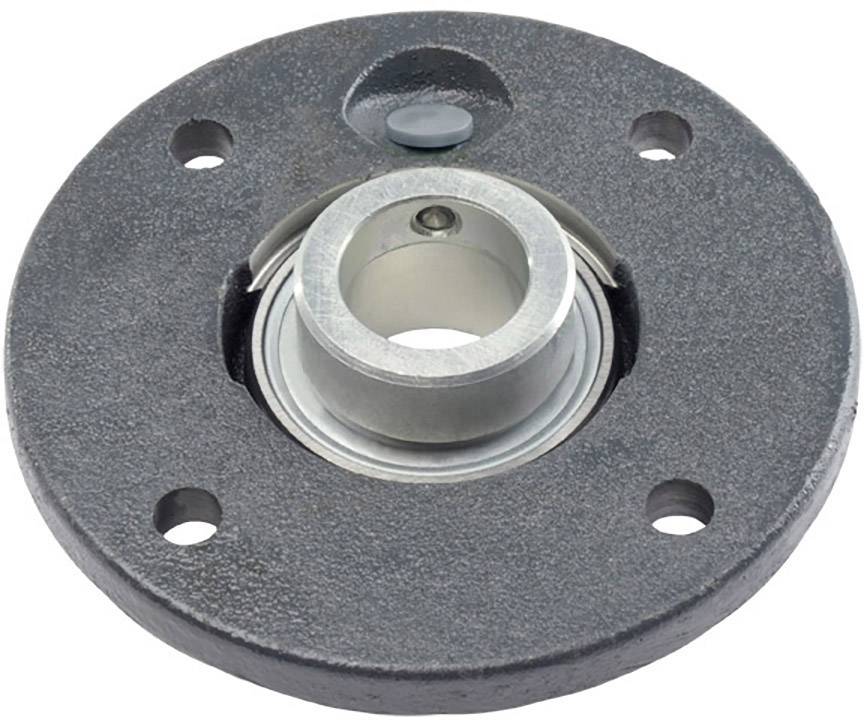

INA Housed bearing unit PMEY25-N
EAN:
Part number:
Item no:
Product type
Housed bearing unit
Bore Ø
25 mm
Type
PMEY25-N
Manufacturer part #
PMEY25-N
Dim
(Ø x L) 27 mm x 115 mm
Technical specifications
- Four hole flange bearing housing units, gray cast iron, centering approach, threaded pins in the inner ring, P-seal
- Type
PMEY25-N
- Product type
Housed bearing unit
- Manufacturer part #
PMEY25-N
- Bore Ø
25 mm
- Dim
(Ø x L) 27 mm x 115 mm
- Enclosure material
Grey iron
- Weight
710 g
- Width
115 mm
- Length
115 mm
- (Ø)
27 mm
- Material
Grey iron
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1851386 INA Housed bearing unit PMEY25-N
Description
INA housing units are available as plummer block, flanged bearing and clamping housing units.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
PMEY series are four hole flange bearing housing units made of cast iron with centring approach, threaded pin in the inner ring and T-sealing the lifetime lubricated.
Suffix: N = groove inst oak in housing for protective caps
