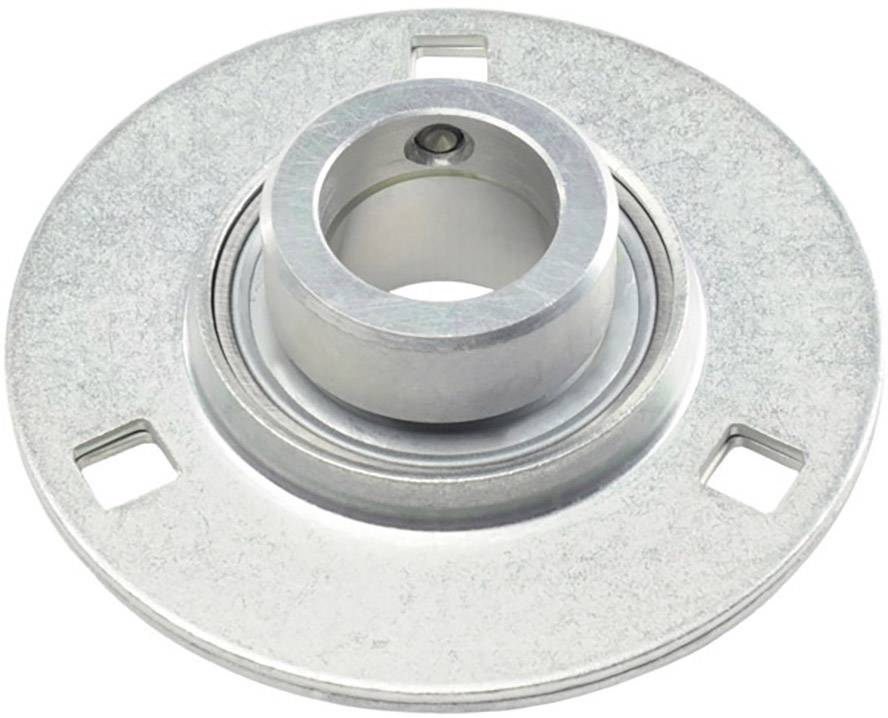

INA Housed bearing unit RA17
EAN:
Part number:
Item no:
Product type
Housed bearing unit
Bore Ø
17 mm
Type
RA17
Manufacturer part #
RA17
Dim
(Ø x L) 28.6 mm x 81 mm
Technical specifications
- Three hole flange bearing housing units, steel plate, eccentric clamping ring, P-sealing
- Type
RA17
- Product type
Housed bearing unit
- Manufacturer part #
RA17
- Bore Ø
17 mm
- Dim
(Ø x L) 28.6 mm x 81 mm
- Enclosure material
Steel
- Weight
230 g
- Width
81 mm
- Length
81 mm
- (Ø)
28.6 mm
- Material
Steel
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1849806 INA Housed bearing unit RA17
Description
INA housing units are available as plummer block, flanged bearing and clamping housing units.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
Series RA are four hole flange bearing housing units made of cast iron with eccentric clamping ring and P-sealing the lifetime lubricated.
Suffix FA 125 = Corrotect coated housing.
This text is machine translated.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
Series RA are four hole flange bearing housing units made of cast iron with eccentric clamping ring and P-sealing the lifetime lubricated.
Suffix FA 125 = Corrotect coated housing.
This text is machine translated.
