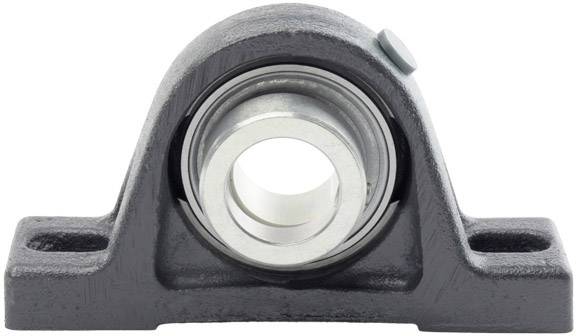

INA Housed bearing unit RASEY50-TV-VA-HLA
EAN:
Part number:
Item no:
Product type
Housed bearing unit
Bore Ø
50 mm
Outside Ø
23 mm
Type
RASEY50-TV-VA-HLA
Manufacturer part #
RASEY50-TV-VA-HLA
Technical specifications
- Pedestal bearing, bearing with threaded pin in the inner ring, in VA-design, R-sealing
- Type
RASEY50-TV-VA-HLA
- Product type
Housed bearing unit
- Manufacturer part #
RASEY50-TV-VA-HLA
- Bore Ø
50 mm
- Outside Ø
23 mm
- Dim
(L x W) 206 mm x 17 mm
- Enclosure material
Grey iron
- Features
Stainless
- Dimensions
ID 19mm AD 23mm Breite17mm mm
- Width
17 mm
- Length
206 mm
- Dynamic load rating (radial)
33500 N
- Radial load rating
22100 N
- Inside diameter
50 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1890220 INA Housed bearing unit RASEY50-TV-VA-HLA
Description
INA housing units are available as plummer block, flanged bearing and clamping housing units.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
RASEY series are bearing housing units made of cast iron with grub screws in inner ring and R-sealing the lifetime lubricated.
Suffix:
N = groove inst oak in housing for protective caps
This text is machine translated.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
RASEY series are bearing housing units made of cast iron with grub screws in inner ring and R-sealing the lifetime lubricated.
Suffix:
N = groove inst oak in housing for protective caps
This text is machine translated.
