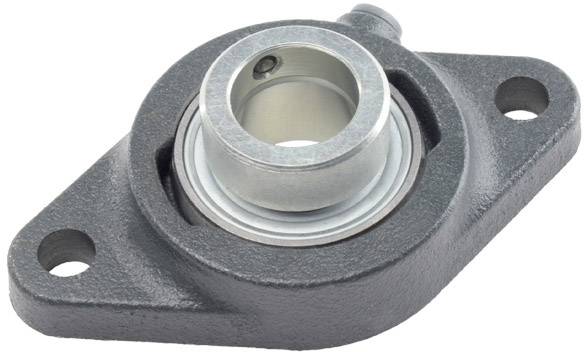

INA Housed bearing unit RCJTY20-TV-VA-HLA
EAN:
Part number:
Item no:
Product type
Housed bearing unit
Bore Ø
20 mm
Outside Ø
90 mm
Type
RCJTY20-TV-VA-HLA
Manufacturer part #
RCJTY20-TV-VA-HLA
Technical specifications
- Two-hole flange bearings, bearing with threaded pin in the inner ring, in VA-design, R-sealing
- Type
RCJTY20-TV-VA-HLA
- Product type
Housed bearing unit
- Manufacturer part #
RCJTY20-TV-VA-HLA
- Bore Ø
20 mm
- Outside Ø
90 mm
- Dim
(L x W) 114 mm x 61 mm
- Enclosure material
Grey iron
- Weight
1.942 kg
- Features
Flange
- Width
61 mm
- Length
114 mm
- Dynamic load rating (radial)
12300 N
- Radial load rating
6300 N
- Inside diameter
20 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1890272 INA Housed bearing unit RCJTY20-TV-VA-HLA
Description
INA housing units are available as plummer block, flanged bearing and clamping housing units.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
RCJTY series are two-hole flange bearing housing units made of cast iron with threaded pin in the inner ring and R-sealing the lifetime lubricated.
Suffix: N = groove inst oak in housing for protective caps
This text is machine translated.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
RCJTY series are two-hole flange bearing housing units made of cast iron with threaded pin in the inner ring and R-sealing the lifetime lubricated.
Suffix: N = groove inst oak in housing for protective caps
This text is machine translated.
