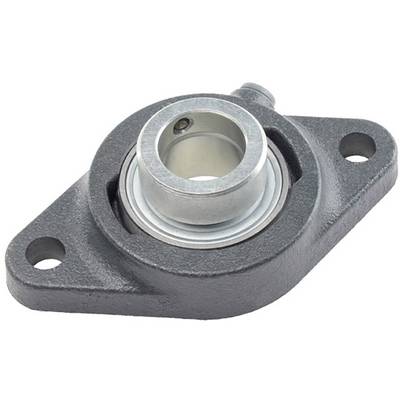

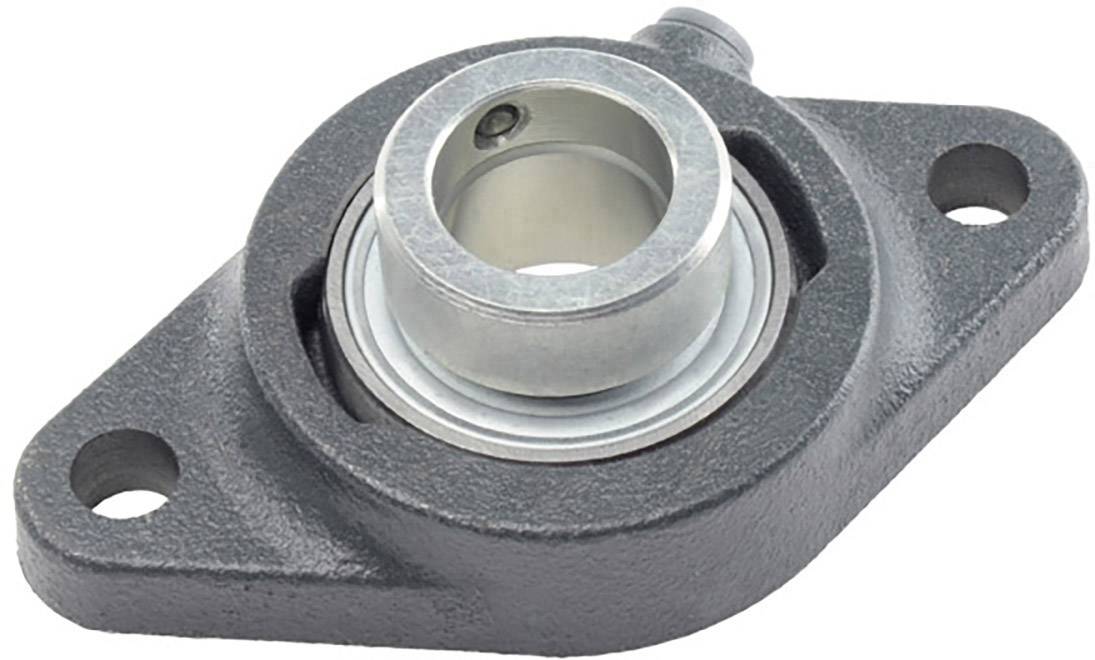

INA Housed bearing unit RCJTY30-N
EAN:
Part number:
Item no:
Product type
Housed bearing unit
Bore Ø
30 mm
Type
RCJTY30-N
Manufacturer part #
RCJTY30-N
Dim
(Ø x L) 42.2 mm x 80 mm
Technical specifications
- Two-hole flange bearing housing units, gray cast iron, Thread Pins in the inner ring, R-sealing
- Type
RCJTY30-N
- Product type
Housed bearing unit
- Manufacturer part #
RCJTY30-N
- Bore Ø
30 mm
- Dim
(Ø x L) 42.2 mm x 80 mm
- Enclosure material
Grey iron
- Weight
880 g
- Width
142 mm
- Length
80 mm
- (Ø)
42.2 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1851378 INA Housed bearing unit RCJTY30-N
Description
INA housing units are available as plummer block, flanged bearing and clamping housing units.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
RCJTY series are two-hole flange bearing housing units made of cast iron with threaded pin in the inner ring and R-sealing the lifetime lubricated.
Suffix: N = groove inst oak in housing for protective caps
