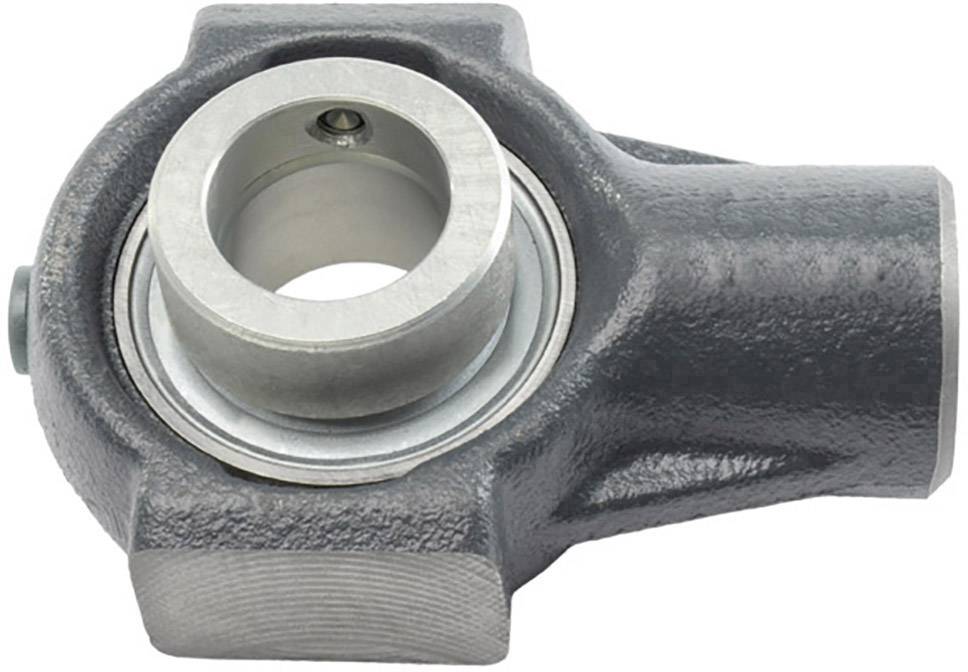

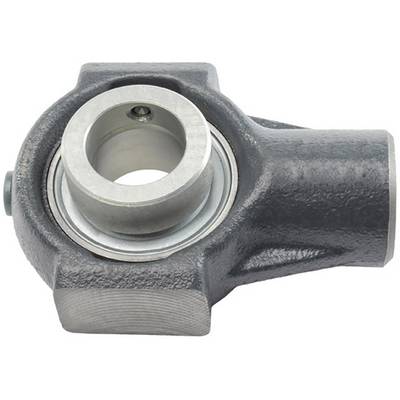

INA Housed bearing unit RHE20
EAN:
Part number:
Item no:
Product type
Housed bearing unit
Bore Ø
20 mm
Type
RHE20
Manufacturer part #
RHE20
Dim
(Ø x L) 25 mm x 65 mm
Technical specifications
- Cast-iron casing, bearing with eccentric clamping ring, R-sealing
- Type
RHE20
- Product type
Housed bearing unit
- Manufacturer part #
RHE20
- Bore Ø
20 mm
- Dim
(Ø x L) 25 mm x 65 mm
- Enclosure material
Grey iron
- Weight
610 g
- Dimensions
20x91x65 mm
- Width
91 mm
- Length
65 mm
- (Ø)
25 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1851420 INA Housed bearing unit RHE20
Description
INA housing units are available as plummer block, flanged bearing and clamping housing units.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
Series RHE are made of cast iron with eccentric clamping ring clamping housing units and R-sealing the lifetime lubricated.
This text is machine translated.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
Series RHE are made of cast iron with eccentric clamping ring clamping housing units and R-sealing the lifetime lubricated.
This text is machine translated.
