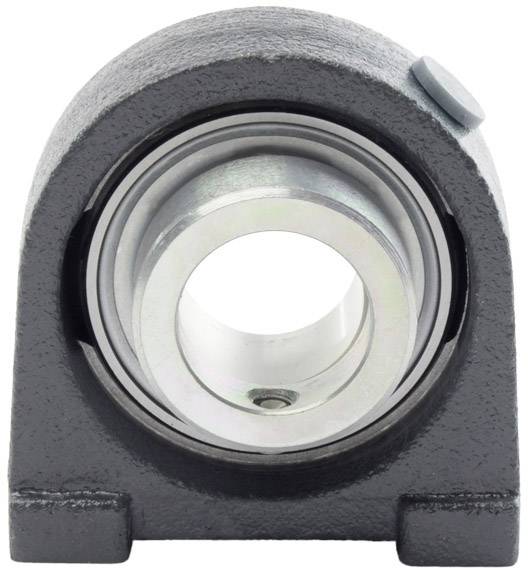

INA Housed bearing unit RSHEY20-TV-VA-HLA
EAN:
Part number:
Item no:
Product type
Housed bearing unit
Bore Ø
20 mm
Outside Ø
20 mm
Type
RSHEY20-TV-VA-HLA
Manufacturer part #
RSHEY20-TV-VA-HLA
Technical specifications
- Pedestal bearing, bearing with threaded pin in the inner ring, in VA-design, R-sealing
- Type
RSHEY20-TV-VA-HLA
- Product type
Housed bearing unit
- Manufacturer part #
RSHEY20-TV-VA-HLA
- Bore Ø
20 mm
- Outside Ø
20 mm
- Dim
(Ø) 76 mm
- Enclosure material
Grey iron
- Features
Stainless
- (Ø)
76 mm
- Dynamic load rating (radial)
12300 N
- Radial load rating
6300 N
- Inside diameter
20 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1890237 INA Housed bearing unit RSHEY20-TV-VA-HLA
Description
INA housing units are available as plummer block, flanged bearing and clamping housing units.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
PSHEY series are bearing housing units made of cast iron with gewindetsiften in inner ring and R-sealing the lifetime lubricated.
Suffix: N = groove inst oak in housing for protective caps
This text is machine translated.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
PSHEY series are bearing housing units made of cast iron with gewindetsiften in inner ring and R-sealing the lifetime lubricated.
Suffix: N = groove inst oak in housing for protective caps
This text is machine translated.
