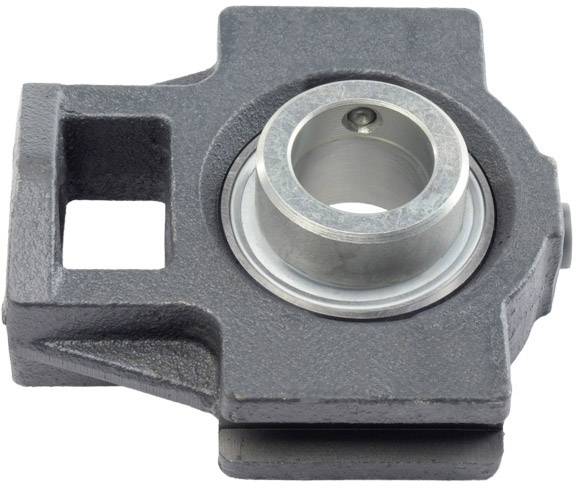

INA Housed bearing unit RTUEY40-TV-VA-HLA
EAN:
Part number:
Item no:
Product type
Housed bearing unit
Bore Ø
40 mm
Type
RTUEY40-TV-VA-HLA
Manufacturer part #
RTUEY40-TV-VA-HLA
Dim
(L x W) 114 mm x 140 mm
Technical specifications
- Ball bearing with threaded pin in the inner ring, in VA-design, R-sealing
- Type
RTUEY40-TV-VA-HLA
- Product type
Housed bearing unit
- Manufacturer part #
RTUEY40-TV-VA-HLA
- Bore Ø
40 mm
- Dim
(L x W) 114 mm x 140 mm
- Enclosure material
Grey iron
- Weight
0.79 kg
- Width
140 mm
- Length
114 mm
- Dynamic load rating (radial)
31500 N
- Radial load rating
18900 N
- Inside diameter
40 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1890348 INA Housed bearing unit RTUEY40-TV-VA-HLA
Description
INA housing units are available as plummer block, flanged bearing and clamping housing units.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
RTUE series are bearing housing units made of cast iron with eccentric clamping ring and R-sealing the lifetime lubricated.
This text is machine translated.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other.
RTUE series are bearing housing units made of cast iron with eccentric clamping ring and R-sealing the lifetime lubricated.
This text is machine translated.
