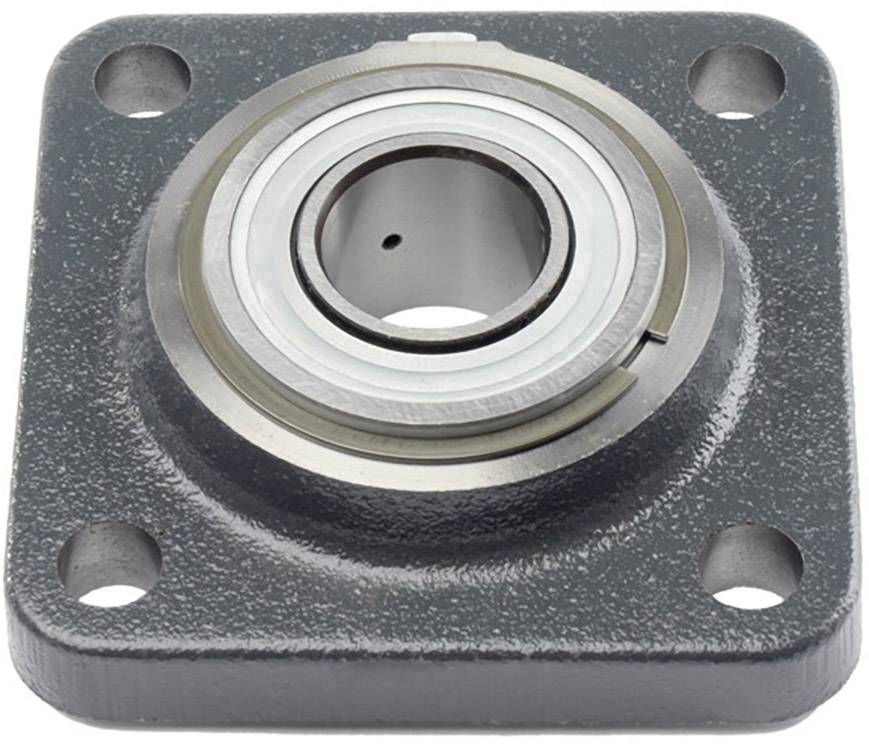

INA Housed bearing unit TCJ20-N
EAN:
Part number:
Item no:
Product type
Housed bearing unit
Bore Ø
20 mm
Type
TCJ20-N
Manufacturer part #
TCJ20-N
Dim
(Ø x L) 45.6 mm x 86 mm
Technical specifications
- Four hole flange bearing housing units, gray cast iron, eccentric clamping ring, T-seal
- Type
TCJ20-N
- Product type
Housed bearing unit
- Manufacturer part #
TCJ20-N
- Bore Ø
20 mm
- Dim
(Ø x L) 45.6 mm x 86 mm
- Enclosure material
Grey iron
- Weight
650 g
- Width
86 mm
- Length
86 mm
- (Ø)
45.6 mm
- Material
Grey iron
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1849803 INA Housed bearing unit TCJ20-N
Description
INA housing units are available as plummer block, flanged bearing and clamping housing units.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other. TCJ series are four hole flange bearing housing units made of cast iron with threaded pin in the inner ring and R-sealing the lifetime lubricated.
Suffix N = groove inst oak in housing for protective caps.
This text is machine translated.
The units are ready for mounting. In order to guarantee function and safety are bearing and housing aligned with each other. TCJ series are four hole flange bearing housing units made of cast iron with threaded pin in the inner ring and R-sealing the lifetime lubricated.
Suffix N = groove inst oak in housing for protective caps.
This text is machine translated.
