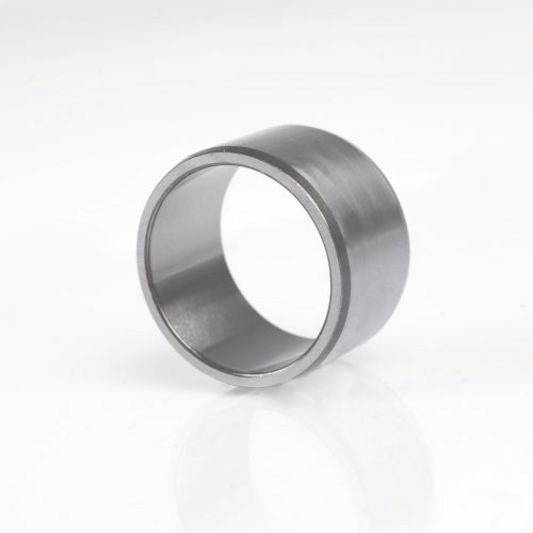

INA Inner race IR25X30X30
EAN:
Part number:
Item no:
Product type
Inner race
Bore Ø
25 mm
Outside Ø
30 mm
Type
IR25X30X30
Manufacturer part #
IR25X30X30
Datasheet (PDF)
Technical specifications
- Micro-processed
- Type
IR25X30X30
- Product type
Inner race
- Manufacturer part #
IR25X30X30
- Bore Ø
25 mm
- Outside Ø
30 mm
- Dim
(Ø x L) 30 mm x 30 mm
- Enclosure material
Ball bearing steel
- Weight
53 g
- Width
30 mm
- Length
30 mm
- (Ø)
30 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1849429 INA Inner race IR25X30X30
User & Safety Instructions
User & Safety Instructions 1849429 INA Inner race IR25X30X30
Description
IR inner rings, fine processed according to DIN 620
Inner rings are made of hardened rolling bearing steel and have fine-machined or ground careers. Inner rings are used for needle roller bearings, needle sockets and needle roller and cage assemblies required if the shaft is not as a career can be used. Chamfer on the front side enable an easy imports into the bearing and prevent the sealing lips of the bearing may be damaged.
This text is machine translated.
Inner rings are made of hardened rolling bearing steel and have fine-machined or ground careers. Inner rings are used for needle roller bearings, needle sockets and needle roller and cage assemblies required if the shaft is not as a career can be used. Chamfer on the front side enable an easy imports into the bearing and prevent the sealing lips of the bearing may be damaged.
