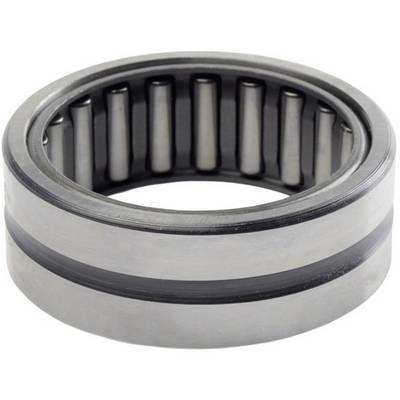

INA Needle bearing RNA4902-2RSR-XL Bore diameter 20 mm
EAN:
Part number:
Item no:
Product type
Needle bearing
Bore Ø
20 mm
Outside Ø
28 mm
Type
RNA4902-2RSR-XL
Manufacturer part #
RNA4902-2RSR-XL
Technical specifications
- Needle bearing dimension series 49, 1-row, with banks, without inner ring, with two-sided lip seal.
- Type
RNA4902-2RSR-XL
- Product type
Needle bearing
- Manufacturer part #
RNA4902-2RSR-XL
- Bore Ø
20 mm
- Outside Ø
28 mm
- Dim
(Ø x L) 28 mm x 28 mm
- Rotational speed (max.)
10000 U/min
- Features
Bilateral lip seal
- Dimensions
20 mm
- Width
13 mm
- Length
28 mm
- (Ø)
28 mm
- Dynamic load rating (radial)
9700 N
- Radial load rating
10300 N
- Inside diameter
20 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1890256 INA Needle bearing RNA4902-2RSR-XL Bore diameter 20 mm
Description
According to DIN 619/ISO 1206 needle bearing RNA
Nail bearing with banks, without inner rings, particularly space-saving radial. For the application you need but a ground and hardened shaft.
Suffix:
XL = Standard
ZW = two-row, depending on size
RSR = One-sided slipping seal
2 RSR = on both sides sharpened seal
This text is machine translated.
Nail bearing with banks, without inner rings, particularly space-saving radial. For the application you need but a ground and hardened shaft.
Suffix:
XL = Standard
ZW = two-row, depending on size
RSR = One-sided slipping seal
2 RSR = on both sides sharpened seal
This text is machine translated.
