inateck 2D wireless barcode scanner Bluetooth®, Radio 2D Imager Black, Yellow Hand-held USB
EAN:
Part number:
Item no:
Number
Total (€ 33.99 / piece)
€ 33.99
incl. VAT
14-day return policy included
Highlights & Details
Barcode Scanner
- Supports 1D and 2D barcodes, CMOS image sensor
- 3 connection methods: USB, Bluetooth, 2.4 GHz wireless
- Battery capacity 2600 mAh
- Decoding angle: Roll 360°, pitch 65°, Yaw 65°
- Size: 9.09 cm \* 6.83 cm \* 16.51 cm, weight: 205 g
- Signalling mode: Buzzer, warning light, vibration
- Supports APP, SDK, detection of damaged and dirty barcodes, automatic scanning mode, inventory mode, duplicate recognition, 1-to-many transmission
- Supported barcodes:
- 2D: QR Code, Data Matrix, PDF417, Aztec Code
- 1D: CODE 128, EAN-13, EAN-8, UPC-A, UPC-E, code 39, code 93, Codabar, Interleaved 2 of 5, standard 2 of 5, industrial 2 of 5, matrix 2 of 5, MSI, code 11, ISBN, ISSN, FedEx, USPS
Technical specifications
- MATERIAL PC ABS TPU
- Colour, black
- Display LEDs (two): Green + Blue + Yellow + Red
- Processor 32-bit
- Light source: Red LED
- USB-C® interface
- Battery capacity 2000 mAh
- Supply voltage 5 V
- Operating current: 190 mA
- Operating/storage temperature 0 to 50 °C/32 to 122 °F.
- Supported code types: Codabar, Code 11, Code 128, Code 39, Code 93, EAN-8, EAN-13, ISBN, ISSN, MSI, UPC-A, UPC-E, IATA 25, Industrial 25 / Standard 25, Interleaved 25, Matrix 25, China Postal Code, FedEx, USPS QR Code, Data Matrix, PDF417, Aztec, Maxi Code
- Supported operating systems: Windows XP/Win7/Win8/Win10, MAC OS, Google Android, Linux
- Transmission range 100 m (2.4G)
- Image sensor 640×480 CMOS
- Scanning speed: 100 per second
- Minimum resolution 4 mil
- Depth of field scanning range: 4 to 40 cm
- Scan width 300 mm @ 400 mm
- Scan mode: Image scan
- Scan method: Manual/automatic
- Minimum bar code contrast: 25%
- Bar code angle: Rotation angle 30°, lift angle ±55°, tilt angle ±65°
- Transfer modes: USB-C®, Bluetooth, 2.4G receiver
- Feedback: Tone, LED, vibration
- Shock resistance: Drop height up to 1.5 m.
- Product type
2D wireless barcode scanner
- Type
BCST-23_black
- Type
Hand-held
- Scanning technology
Imager
- Readable code types
2D
- Cordless scanning
Bluetooth®
Radio
100 m
- Factory colour
Black
Yellow
- Interfaces
USB
- Cable length
0 cm
- Width
68.3 mm
- Height
165.1 mm
- Depth
90.9 mm
- Weight
205 g
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3779537 inateck 2D wireless barcode scanner Bluetooth®, Radio 2D Imager Black, Yellow Hand-held USB
Description
The Inateck BCST-23 2D wireless barcode scanner uses advanced CMOS technology for the fast recording of 1D and 2D barcodes. It is designed for cross-platform use under Windows, MacOS, Linux, Android and iOS in the commercial field.
Reliable decoding
A 300,000-pixel module also detects dirty, wrinkled or poorly printed barcodes under different lighting conditions. The acquisition of inverted DM bar codes is not supported by this model.
System integration and APP control
Support for the Inteck SDK for multiple programming languages (e.g. Python, Java, C#) facilitates the connection to existing ERP systems. The Inateck APP enables the simple configuration and monitoring of battery status.

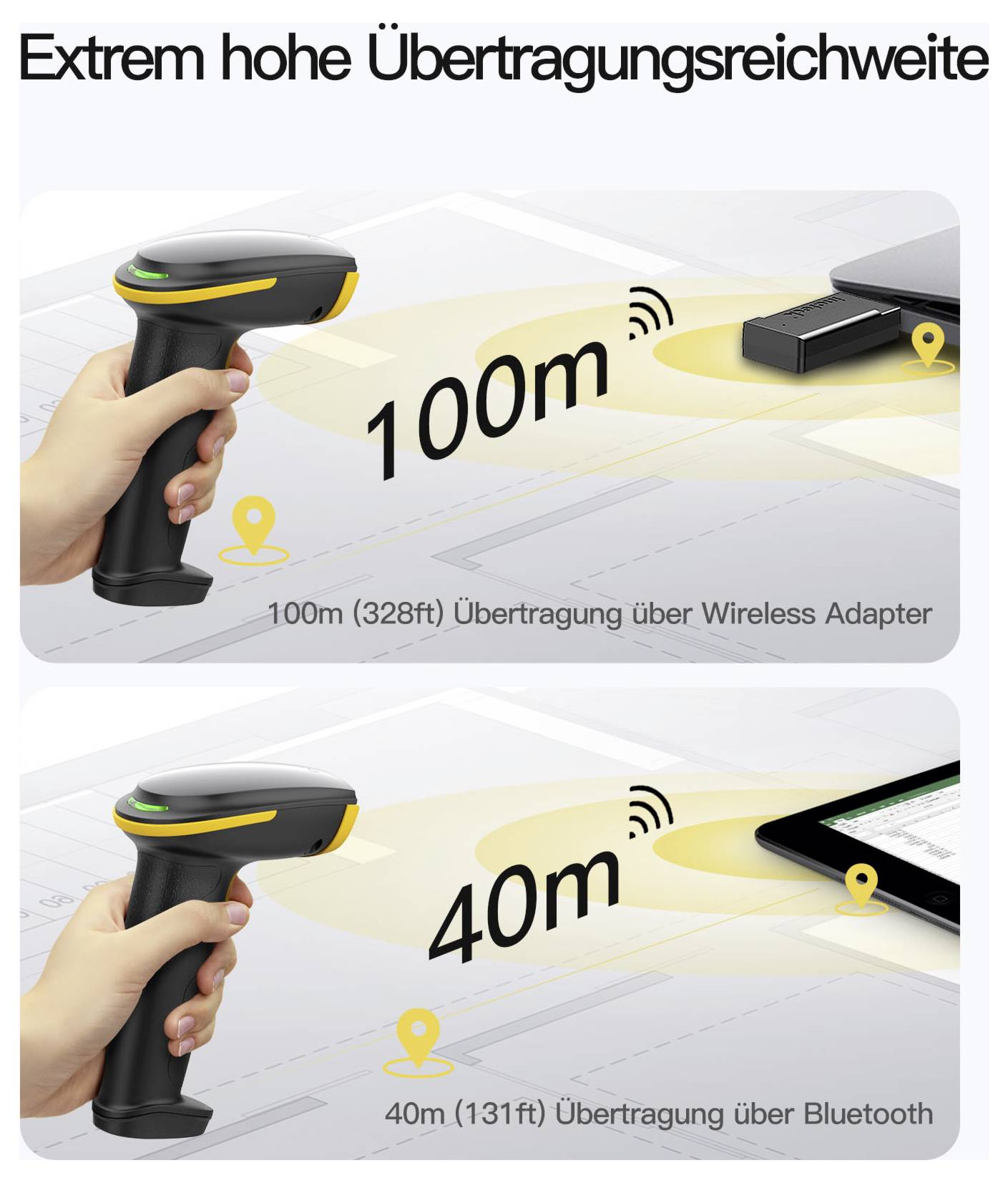

Versatile transmission paths
The device supports the wireless data transmission via 2.4 GHz radio (up to 100 m) as well as connections via Bluetooth® and USB-C®. Feedback from the scanning process is done via vibration, sound and an LED display.
This text is machine translated.
Reliable decoding
A 300,000-pixel module also detects dirty, wrinkled or poorly printed barcodes under different lighting conditions. The acquisition of inverted DM bar codes is not supported by this model.
System integration and APP control
Support for the Inteck SDK for multiple programming languages (e.g. Python, Java, C#) facilitates the connection to existing ERP systems. The Inateck APP enables the simple configuration and monitoring of battery status.
Versatile transmission paths
The device supports the wireless data transmission via 2.4 GHz radio (up to 100 m) as well as connections via Bluetooth® and USB-C®. Feedback from the scanning process is done via vibration, sound and an LED display.
This text is machine translated.
Features
- Advanced CMOS technology provides for fast and precise reading of 1D and 2D barcodes.

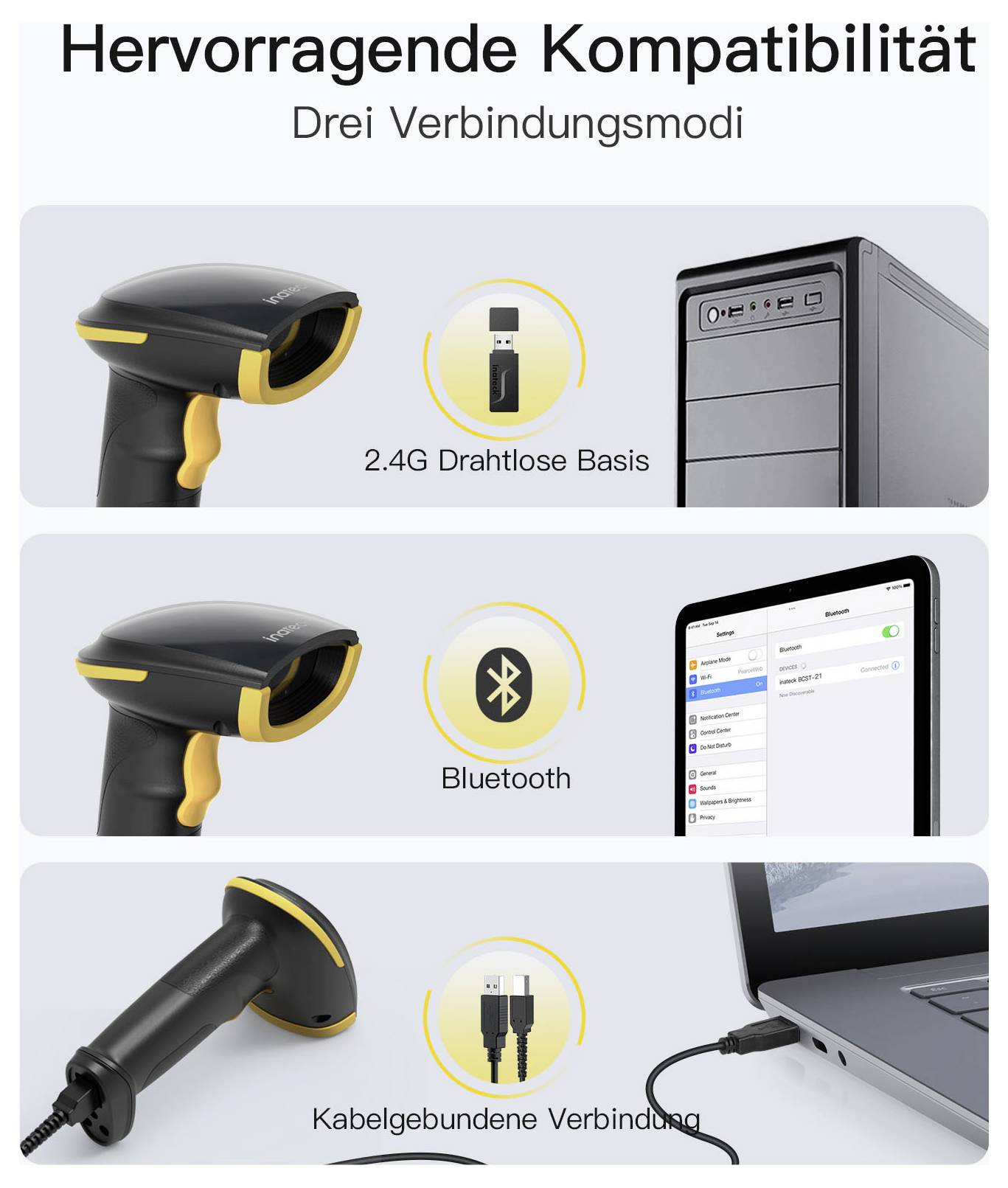

- Versatile triple-mode connectivity supports 2.4 GHz wireless, Bluetooth and USB cable connections for maximum flexibility.
- Scanning dirty and damaged codes effectively reads damaged, dirty or poorly printed barcodes.
- Outstanding decoding capability uses a 300,000-pixel 2D module to quickly capture fuzzy, wrinkled, or distorted barcodes in both strong and low light conditions (inverted DM bar codes are not supported).
- Support for the Inateck SDK enables seamless integration with your ERP system to streamline operations and increase productivity.
- Wide development compatibility supports multiple programming languages (including Python, Kotlin, Java, C/C++, C#, JavaScript/TypeScript, Objective-C and Swift), operating systems (Windows, Android, Mac OS/iOS) and frameworks (Ionic, React, React Native).
- The Inteck Hyper-series offers an extraordinary longevity with advanced battery algorithms that minimize power consumption; a single charging lasts for up to 3 months with normal use and 1 month with intensive use.
- Universal compatibility ensures seamless operation with Windows, Mac OS, iOS, Android, iPad OS and Linux systems.
- The support of Inteck APP enables an effortless configuration, monitoring of the battery status, adjustment of notifications and barcode management directly from your device.
- Supported 2D bar codes: QR Code, Data Matrix, PDF417, Aztec Code.
- Supported 1D barcodes: Code 128, EAN-13, EAN-8, UPC-A, UPC-E, code 39, code 93, Codabar, Interleaved 2 of 5, standard 2 of 5, industrial 2 of 5, matrix 2 of 5, MSI, code 11, ISBN, ISSN, FedEx, USPS

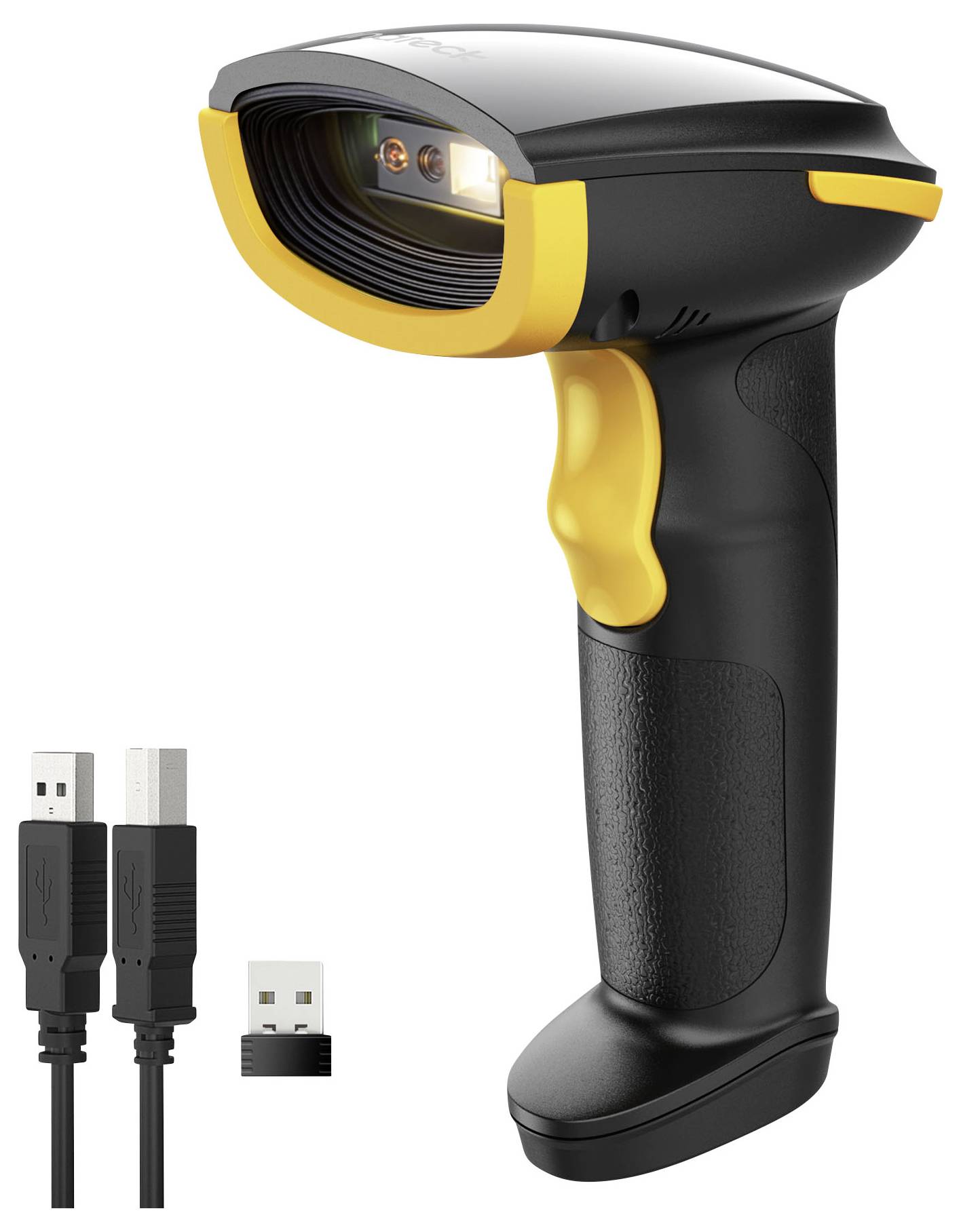

Scope of delivery
- BCST-23
- USB cable
- User manual
