inLine 26608O Mains PSU (adjustable voltage) 1200 mA 12 W Surge protection
EAN:
Part number:
Item no:
Technical specifications
- Black
- Product type
Mains PSU (adjustable voltage)
- Max. output current
1200 mA
- Output current (max.) - rounded
1.2 A
- PSU features
Surge protection
12 W
- Dim
(L x W x H) 7.00 x 4.00 x 7.00 cm
- Connection
5.5/2.1 coaxial connector
- Weight
0.125 kg
- Width
4.00 cm
- Height
7.00 cm
- Length
7.00 cm
- Type
26608O
- Factory colour
Black
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3739644 inLine 26608O Mains PSU (adjustable voltage) 1200 mA 12 W Surge protection
Description

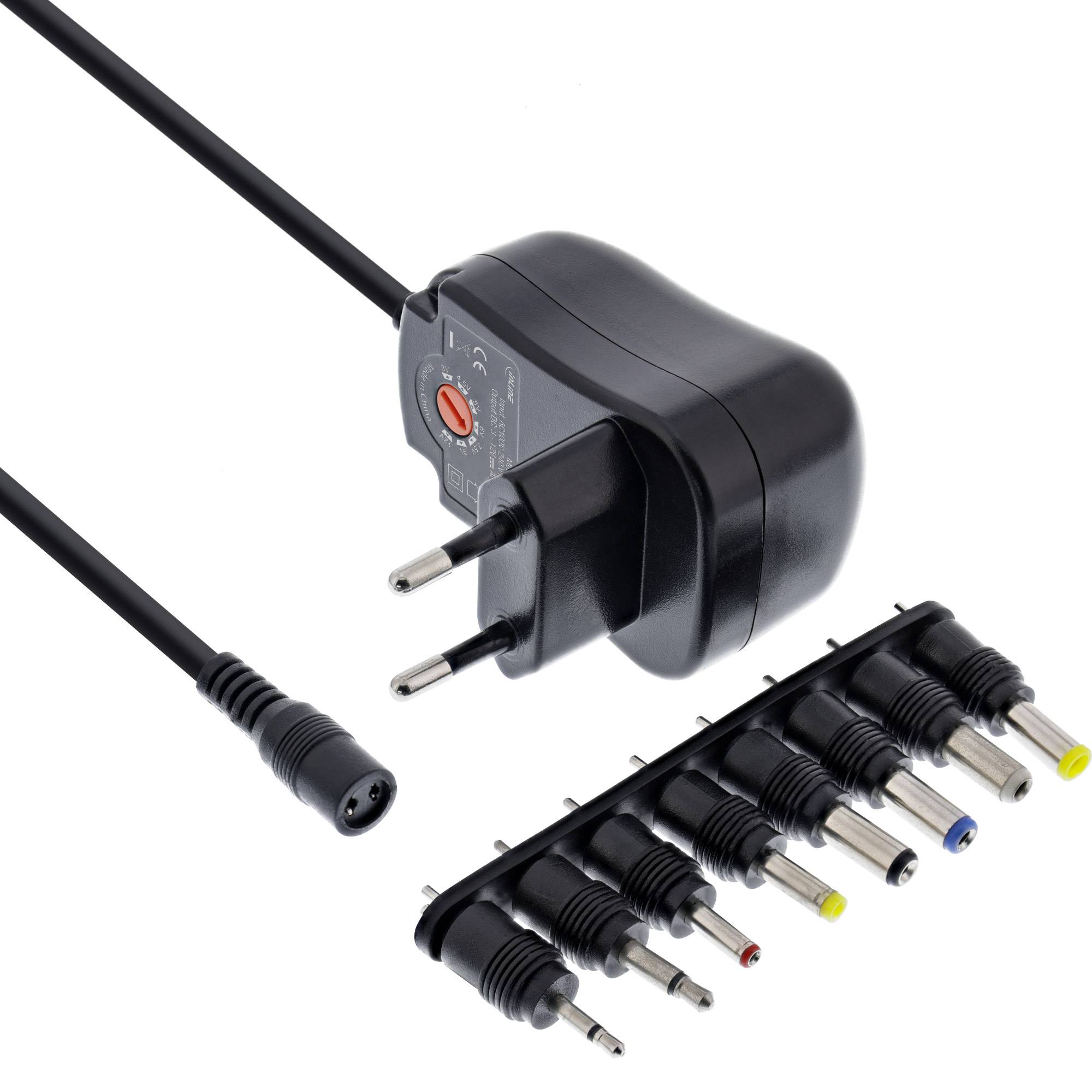

Universal switching power supply as main power supply for small electronic products with 7 output voltages of 3-12V and 8 DC current plugs.

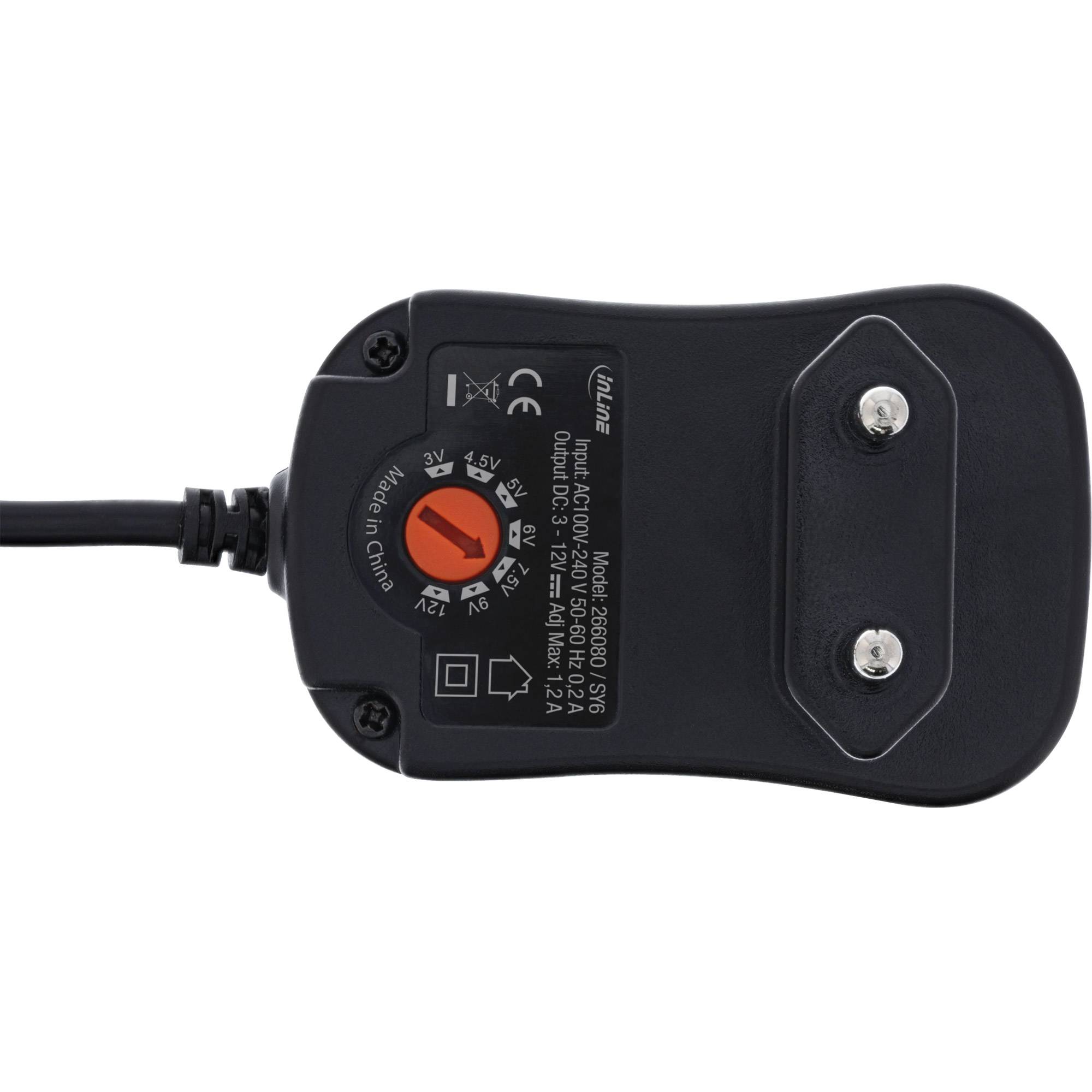

Output voltage DC: 7 selectable voltages: 3V/4.5V/5V/6V/7.5V/9V/12V
Output current max. 1200mA (1000mA at 12V)
Output power max. 12 Watt
Input AC:110-240V/47-63Hz
With safety functions: Overload protection, short-circuit protection

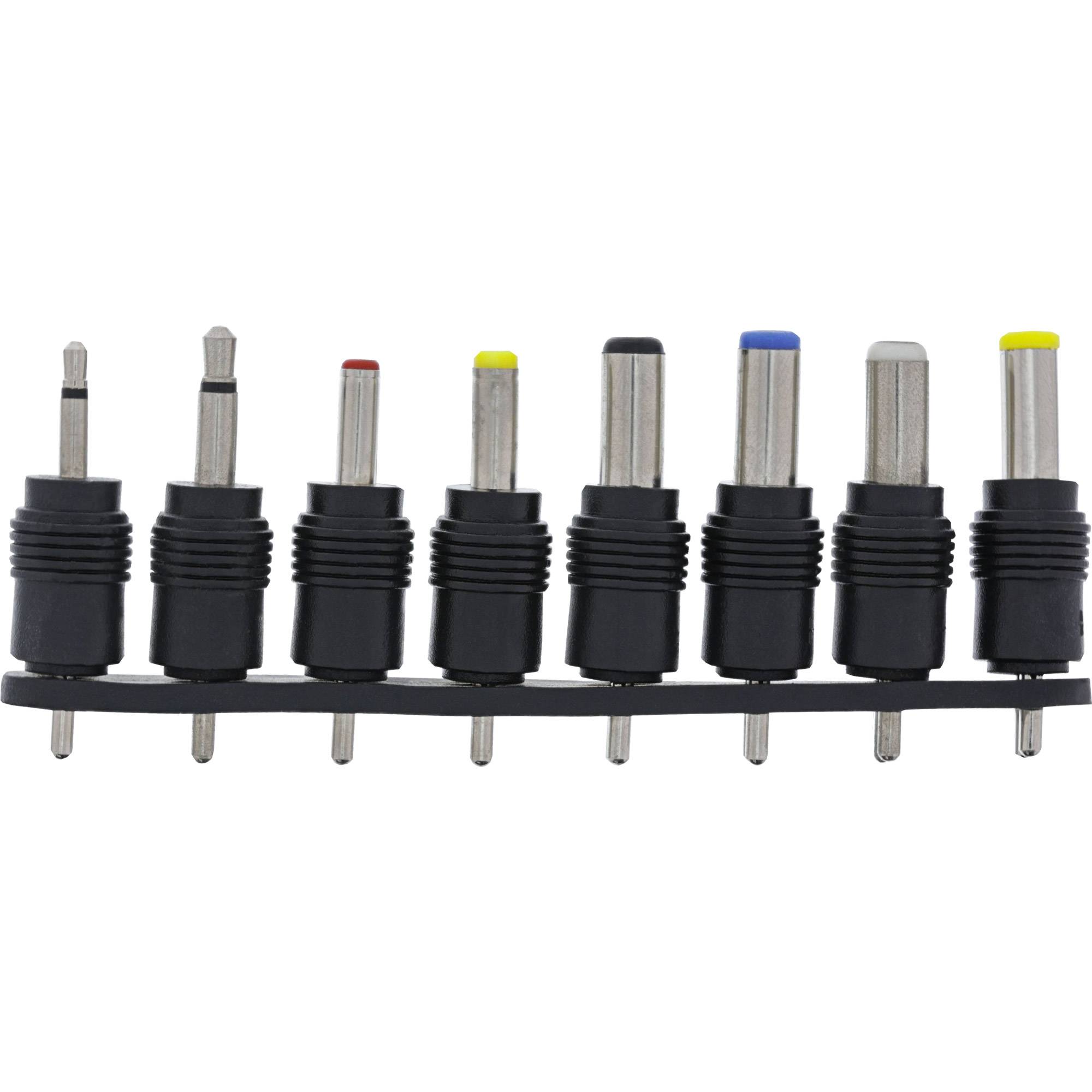

With 8 connection tips, suitable for many electronic small devices: 2.5mm jack, 3.5mm jack, 3.5x1.35mm, 4x1.7mm, 5.5x1.7mm, 5.5 x 2.1mm, 5.5x2.5 mm, 5x3.3mm (with 1 mm inner pin)
Select the output voltage matching the device and ensure that the polarity of the connection tips is correct before use (plus=inside, minus=outside).

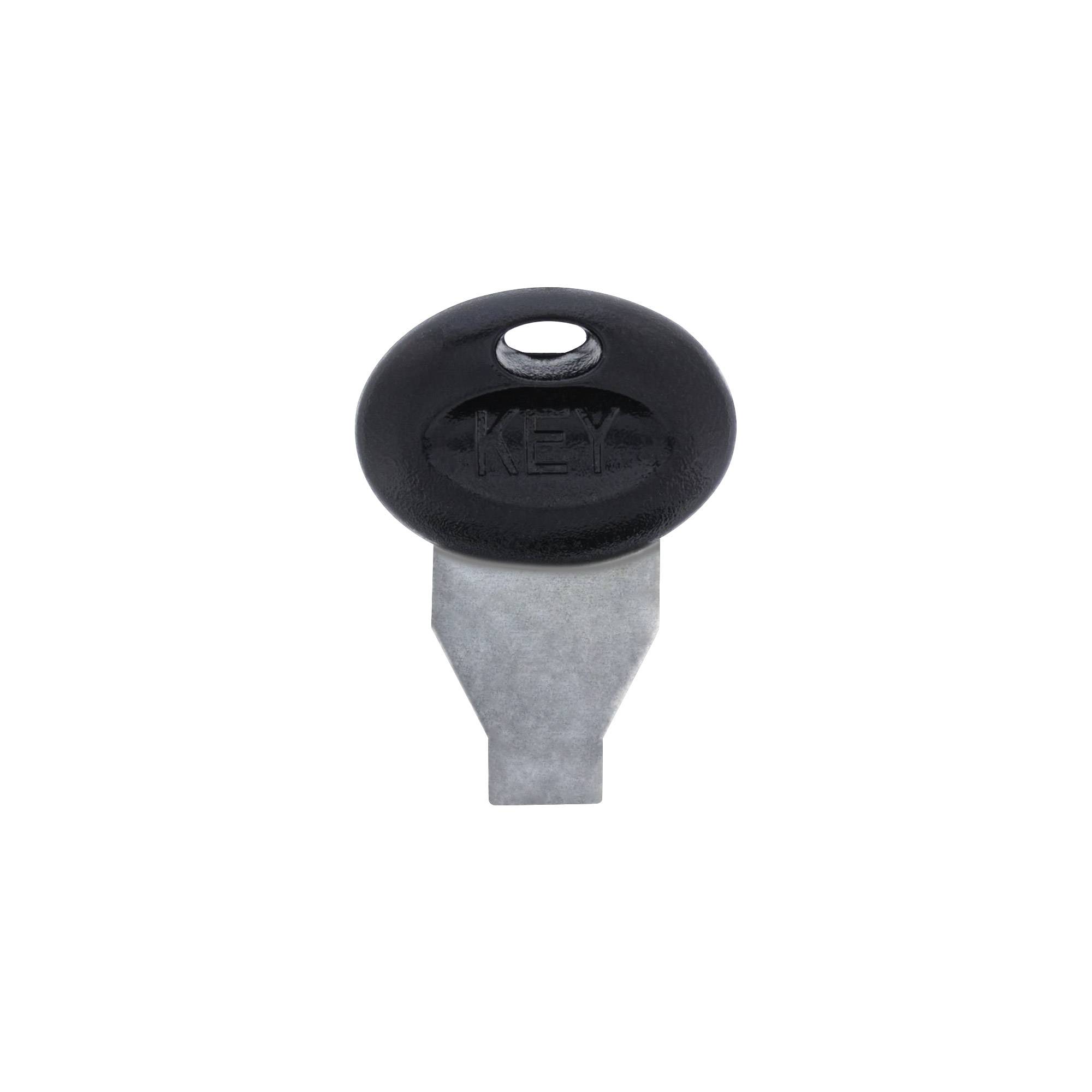

Included in delivery: 1x universal power supply, 8x DC power plug, 1x tool for voltage switching, 1x user manual
This text is machine translated.
Output voltage DC: 7 selectable voltages: 3V/4.5V/5V/6V/7.5V/9V/12V
Output current max. 1200mA (1000mA at 12V)
Output power max. 12 Watt
Input AC:110-240V/47-63Hz
With safety functions: Overload protection, short-circuit protection
With 8 connection tips, suitable for many electronic small devices: 2.5mm jack, 3.5mm jack, 3.5x1.35mm, 4x1.7mm, 5.5x1.7mm, 5.5 x 2.1mm, 5.5x2.5 mm, 5x3.3mm (with 1 mm inner pin)
Select the output voltage matching the device and ensure that the polarity of the connection tips is correct before use (plus=inside, minus=outside).
Included in delivery: 1x universal power supply, 8x DC power plug, 1x tool for voltage switching, 1x user manual
This text is machine translated.
Features
- inLine - power supply - 12 watt
- Device type : Power supply - external
- Input voltage : 110-240 V AC
- Output voltage : DC 3 / 4.5 / 5 / 6 / 7.5 / 9 / 12 V.
- Power capacity : 12 watts
- Output terminals : 1 x DC plugs 2.5 mm
- 1 x DC power plug 3.5 mm
- 1 x DC plug 3.5 mm (ID 1.35 mm)
- 1 x DC plug 4.0 mm (ID 1.7 mm)
- 1 x DC plug 5.5 mm (ID 1.7 mm)
- 1 x DC plug 5.5 mm (ID 2.1 mm)
- 1 x DC plug 5.5 mm (ID 2.5 mm)
- 1 x DC connection 5.0 mm (inner diameter 3.3 mm)
- Accessories supplied : 8 output plugs, voltage switching device
- Colour: black
