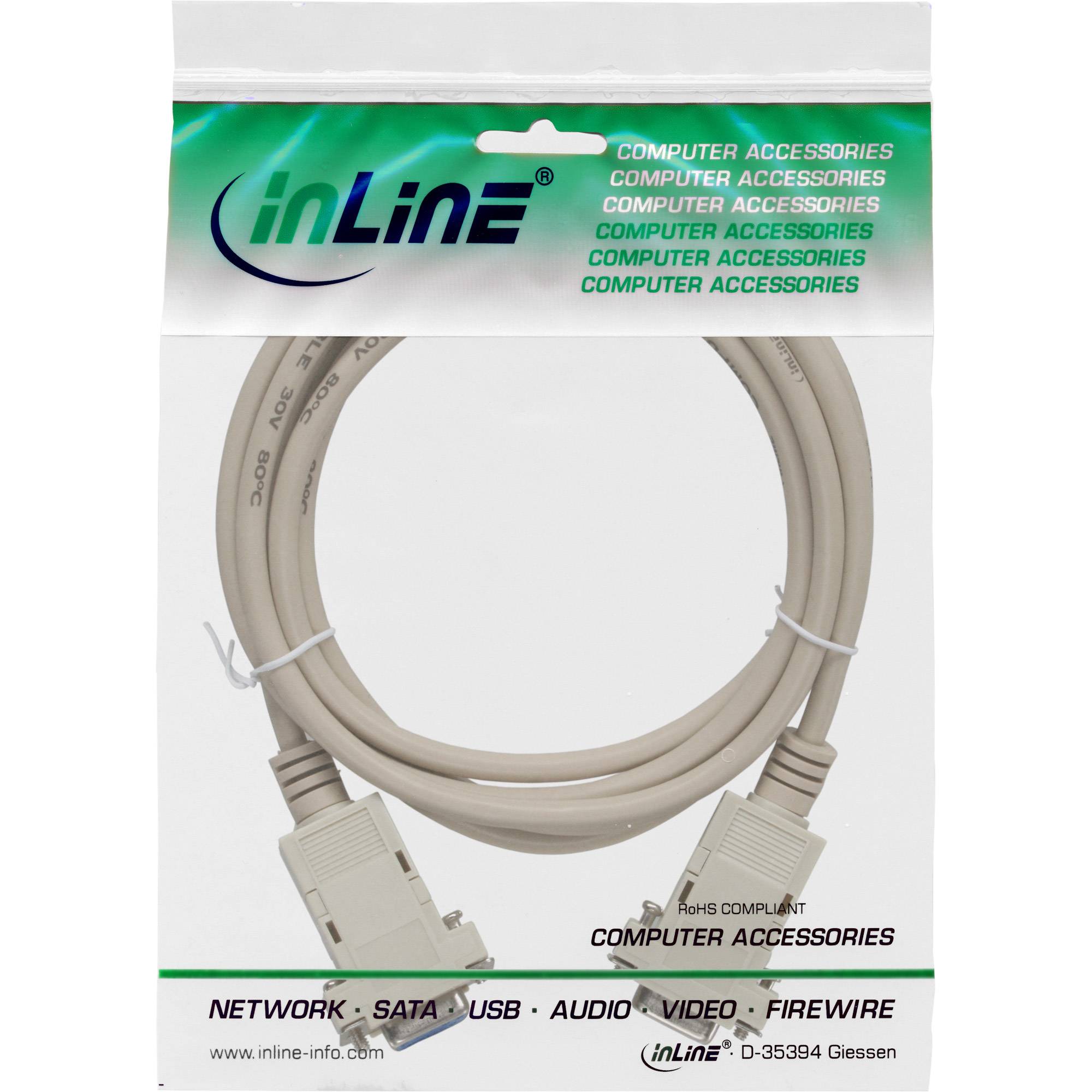

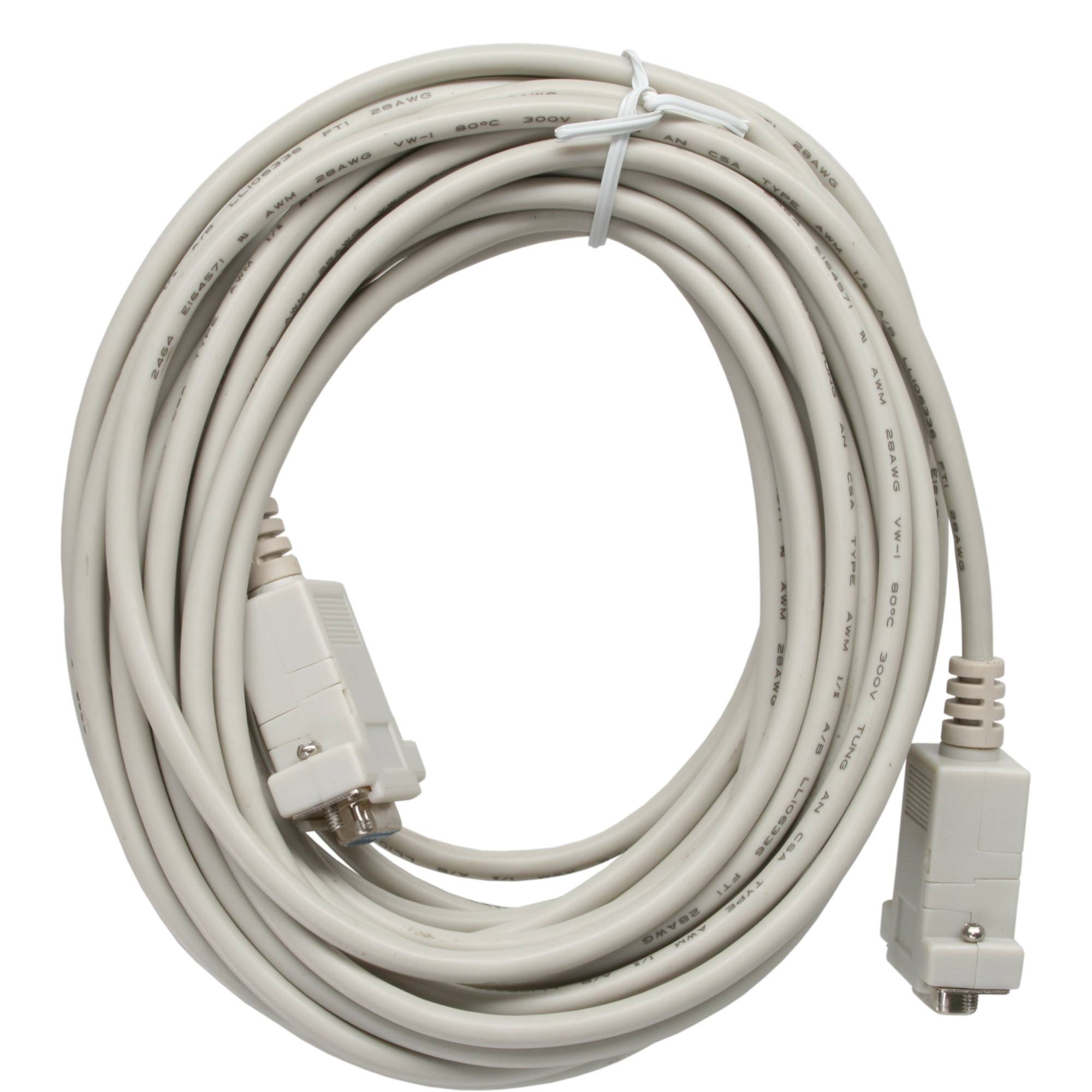

inLine Series Cable 10 m Beige
EAN:
Part number:
Item no:
Technical specifications
- 10 m - thumb screws - beige
- Product type
Series Cable
- Connection type
Series
- Type A
D-SUB socket 9-pin
- Type B
D-SUB socket 9-pin
- Cable length
10 m
- Factory colour
Beige
- Cable use
Series
- Version
Cable
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3739879 inLine Series Cable 10 m Beige
Description
inLine® null modem cable for data transfer between two PCs/notebooks or servers via the respective serial COM ports.
NOTE: Pay attention to the PIN assignment.

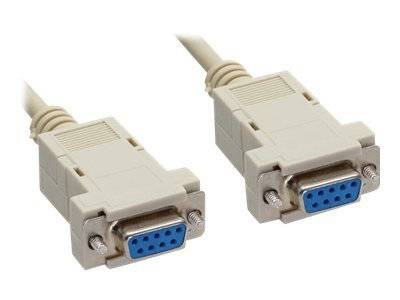

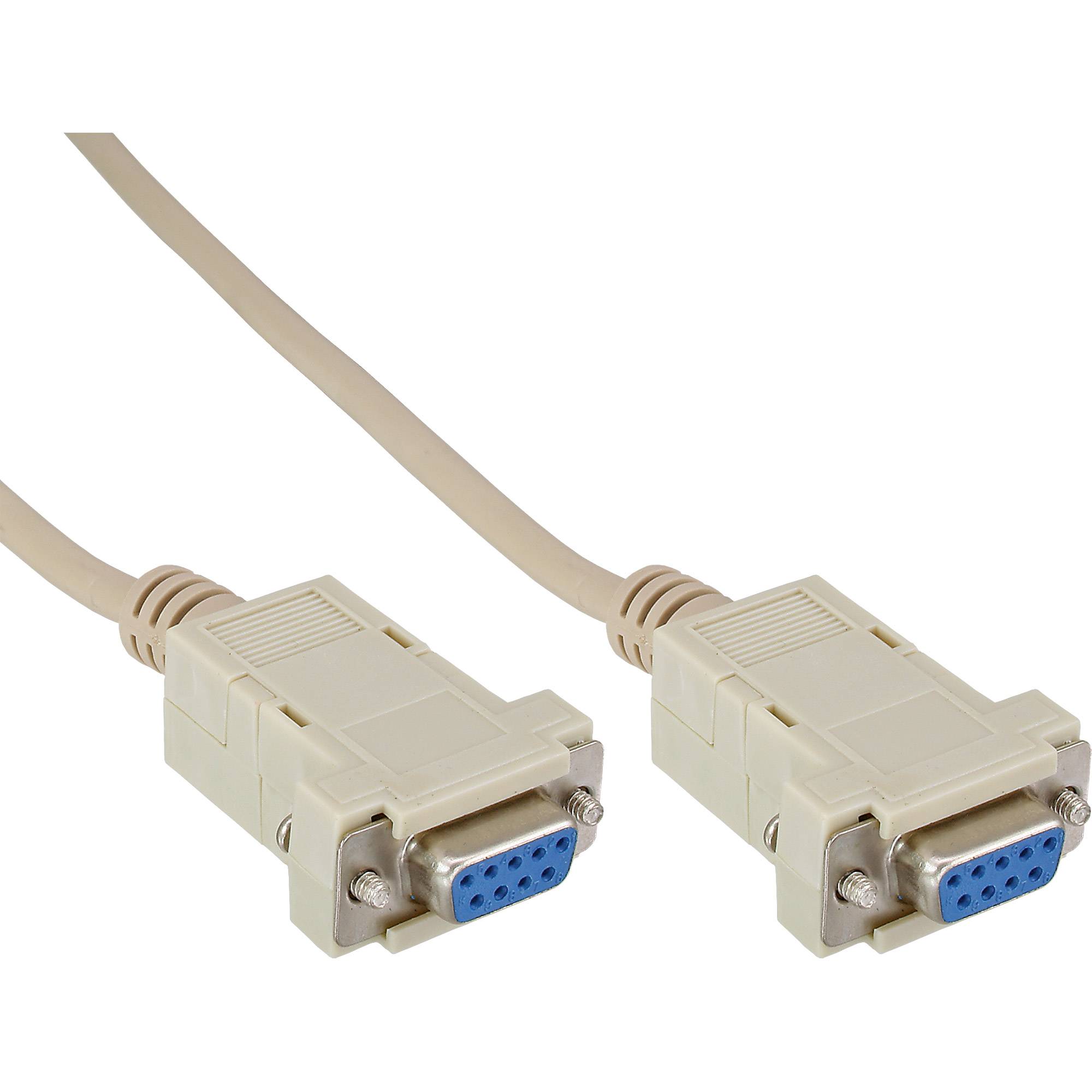

Sub-D 9-pin socket to D-Sub 9-pin socket
Plug connector: Removable
Null modem configuration Pin 1+6-4, 2-3, 3-2, 4-1+6, 5-5, 7-8, 8-7, screen shield
Sheath color: Beige
For connecting/extending/adapting RS232, RS422, RS485 and similar interfaces
This text is machine translated.
NOTE: Pay attention to the PIN assignment.
Sub-D 9-pin socket to D-Sub 9-pin socket
Plug connector: Removable
Null modem configuration Pin 1+6-4, 2-3, 3-2, 4-1+6, 5-5, 7-8, 8-7, screen shield
Sheath color: Beige
For connecting/extending/adapting RS232, RS422, RS485 and similar interfaces
This text is machine translated.
Features
- inLine - Zero modem cable - DB-9 to DB-9 - 10 m.
- Type : null modem cable
- Special features: Thumb screws
- Length: 10 m
- Connection : D-Sub (DB-9), 9-pin - female
- Plug (second end) : D-Sub (DB-9), 9-pin - female
- Colour: Beige
