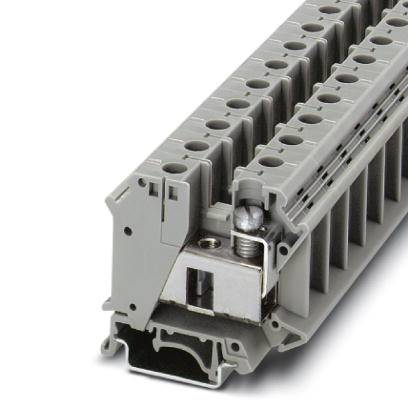

Installation terminal block UTI 35 3074088 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
125 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 4.96 / piece)
€ 247.90
plus VAT.
14-day return policy included
Highlights & Details
Installation terminal block UTI 35
- UTI 35
Technical specifications
- Product type
Serial continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.75 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
0.75 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
18
- AWG max.
2
- Clamp width
15.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Nominal voltage
800 V
- Stripping length (max.)
16 mm
- Manufacturer part #
3074088
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UTI 35
- Dim
(L x W x H) 55 x 15.2 x 51 mm
- Width
15.2 mm
- Height
51 mm
- Length
55 mm
- Flammability rating
V2
Documents & Downloads
Datasheet
Datasheet 586882 Installation terminal block UTI 35 3074088 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 586882 Installation terminal block UTI 35 3074088 Phoenix Contact
Description
Installation terminal block, Screw connection, Cross section: 0.75 mm² - 35 mm², AWG: 18 - 2, Width: 15.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
