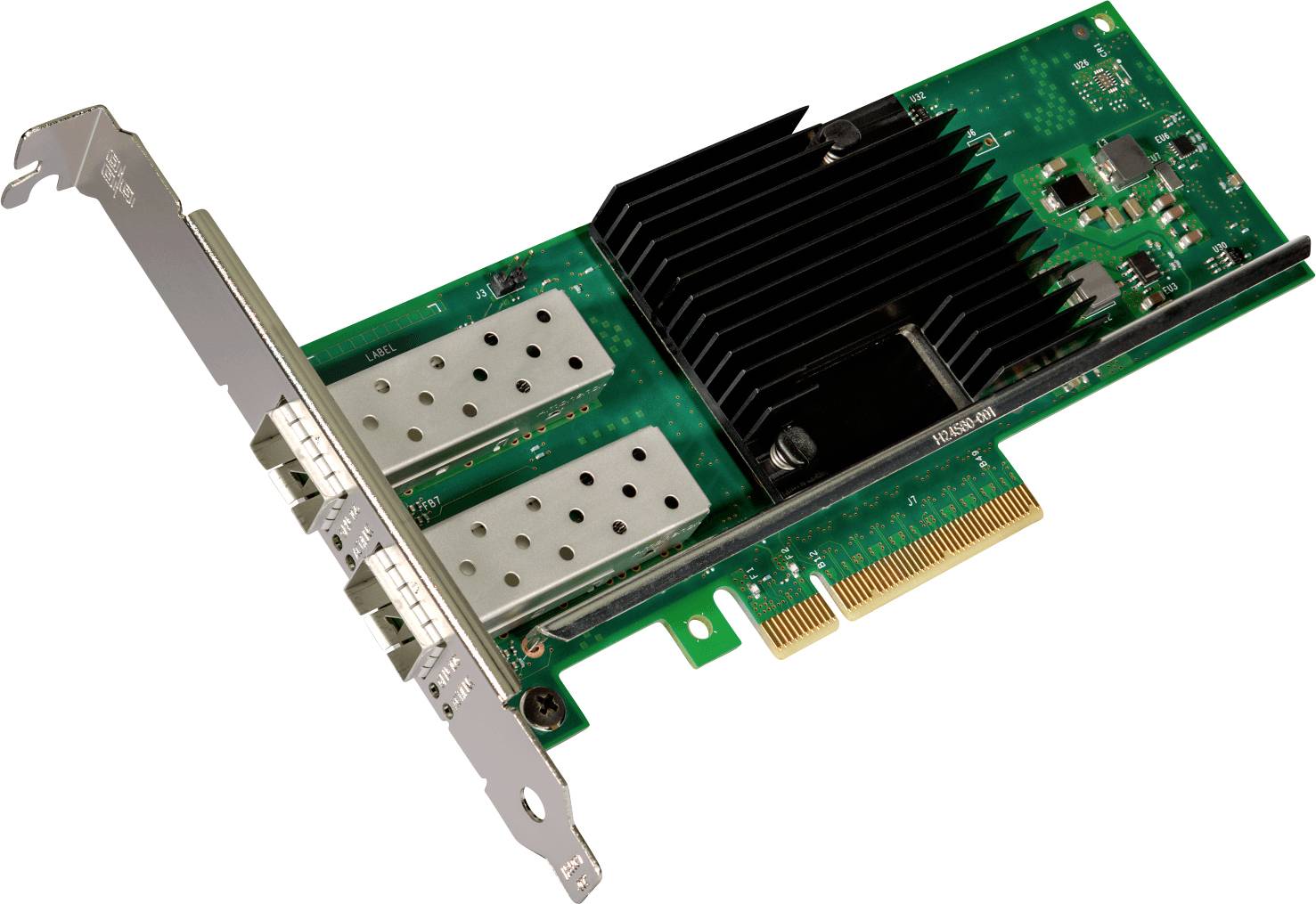

Intel INTEL X710-DA2 BLK 10GbE Server Adapter Network card 10 GBit/s SFP+
EAN:
Part number:
Item no:
Intel X710DA2BLK network card installed fiber 10000 Mbit/s
Highlights & Details
- Cable connected
- PCI Express 3.0 fiber
- 10000 Mbit/s
- built-in
Technical specifications
- Host Interface: PCI Express
- Interface: Fiber
- Optical cable type: SFP+
- Maximum data transfer rate of 10000 Mbit/s.
- Data transfer rate 8 GT/s
- Cable type: SFP+ Direct Attached twinaxial cabling up to 10m
- Target Market: Artificial Intelligence, High Performance Computing
- On-chip QoS and traffic management: Yes
- Storage over Ethernet: Yes
- Intelligent Offloads: Yes
- IWARP/RDMA: No.
- Cable channel over Ethernet: No.
- Interface: PCIe v3.0 (8.0 GT/s)
- Product type: Network Interface Card
- Processor Family: 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE)
- Start date: Q4'14
- Ethernet adapter ARK ID: 83964
- Storage over Ethernet: ISCSI, NFS
- Network interface card Copper cable medium
- Network interface card type: Server Launched
- Last modification: 64826824
- Intel 10 Gigabit server adapter product family
- Product Family: 700 Series Network Adapters (up to 40GbE)
- Product code name: Fortville
- Product type
Network card
- Interfaces
SFP+
- No. of Gigabit LANs
2 x
- No. of LAN ports
2 x
- Transfer rate
10 GBit/s
- LAN transfer rate
10000 MBit/s
- Factory colour
Black
Green
Stainless steel
- Depth
69 mm
- Width
167 mm
- 10/100/1000 Mbps ports
2 x
- Transfer type
Corded
- Weight
0.159
- UKCA
yes
- Intel Virtual Machine Device Queues (VMDq)
yes
- PCI-SIG* SR-IOV Capable
yes
- Intel Flexible Port Partitioning
yes
- Low halogen options available
no
- Intel Ethernet Power Management
yes
- Intel Data Direct I/O Technology
yes
- Intel Virtualization Technology for Connectivity (VT-c)
yes
- Operating temperature (T-T)
0 - 55 °C
- Conflict-Free
yes
- Maximum operating distance
10 m
- Quantity per pack
1 Stück(e)
- Internal
yes
- Quality of Service (QoS) support
yes
- Fiber ports quantity
2
- Operating relative humidity (H-H)
0 - 90 %
- Storage temperature (T-T)
-40 - 70 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3532543 Intel INTEL X710-DA2 BLK 10GbE Server Adapter Network card 10 GBit/s SFP+
Description
IWARP/RDMA
IWARP provides low-latency converged fabric services for data centers with Remote Direct Memory Access (RDMA) over Ethernet. The key components of iWARP that ensure low latency are kernel bypass, direct data placement, and transport acceleration.
Intel® Data Direct I/O Technology
Intel® data-direct I/O technology is a platform technology that improves the efficiency of I/O data processing for the data delivery and data use of I/O devices. With Intel data-direct I/O technology, the Intel® server adapters communicate directly with the processor cache without having to go through system memory, WAS reduces latency, increases system I/O bandwidth, and reduces power consumption.
Suitable for PCI-SIG* SR-IOV
Single root I/O virtualization involves the native (direct) sharing of a single I/O resource between multiple virtual machines. Single root I/O virtualization provides a mechanism to represent a single root function (for example, a single Ethernet port) as multiple separate physical devices.
Intel® Ethernet power management
Intel® Ethernet power management technology provides solutions for traditional power management approaches by reducing idle power consumption, reducing capacity and power consumption as a function that is on demand, operating at maximum energy efficiency whenever possible, and activating the function only when needed.
Flexible Port Partitioning
Flexible port partitioning technology leverages the industry standard PCI SIG SR-IOV to efficiently divide the physical Ethernet device into multiple virtual devices and provides quality of service by ensuring that each process is assigned to a virtual function and receives an appropriate portion of bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues is a technique designed specifically for offloading some switching operations in the virtual machine monitor to network hardware. Virtual machine device queues dramatically reduce operating costs associated with I/O switching within the virtual machine monitor, WAS significantly increases throughput and overall system performance.
This text is machine translated.
IWARP provides low-latency converged fabric services for data centers with Remote Direct Memory Access (RDMA) over Ethernet. The key components of iWARP that ensure low latency are kernel bypass, direct data placement, and transport acceleration.
Intel® Data Direct I/O Technology
Intel® data-direct I/O technology is a platform technology that improves the efficiency of I/O data processing for the data delivery and data use of I/O devices. With Intel data-direct I/O technology, the Intel® server adapters communicate directly with the processor cache without having to go through system memory, WAS reduces latency, increases system I/O bandwidth, and reduces power consumption.
Suitable for PCI-SIG* SR-IOV
Single root I/O virtualization involves the native (direct) sharing of a single I/O resource between multiple virtual machines. Single root I/O virtualization provides a mechanism to represent a single root function (for example, a single Ethernet port) as multiple separate physical devices.
Intel® Ethernet power management
Intel® Ethernet power management technology provides solutions for traditional power management approaches by reducing idle power consumption, reducing capacity and power consumption as a function that is on demand, operating at maximum energy efficiency whenever possible, and activating the function only when needed.
Flexible Port Partitioning
Flexible port partitioning technology leverages the industry standard PCI SIG SR-IOV to efficiently divide the physical Ethernet device into multiple virtual devices and provides quality of service by ensuring that each process is assigned to a virtual function and receives an appropriate portion of bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues is a technique designed specifically for offloading some switching operations in the virtual machine monitor to network hardware. Virtual machine device queues dramatically reduce operating costs associated with I/O switching within the virtual machine monitor, WAS significantly increases throughput and overall system performance.
This text is machine translated.
