Intellinet 19" Serverschrank Basic Line 36 HE 1766x600x1000mm Flatpack Traglast 600kg grau 19" server rack cabinet (W x
EAN:
Part number:
Item no:

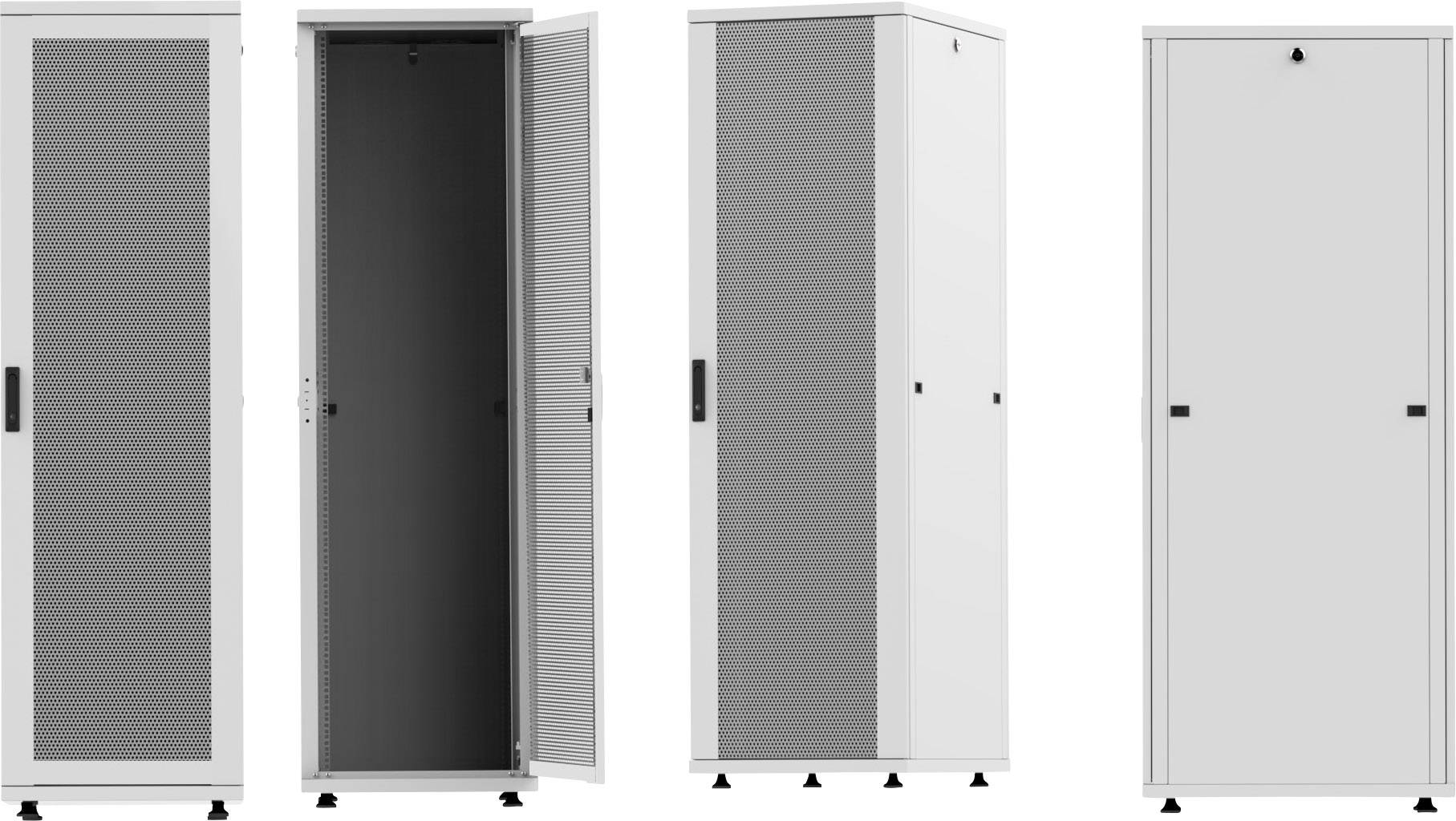

INTELLINET 19" server cabinet Basic Line 36 HE 1766 (H) x 600 (W) x 1000 (T) mm flat pack gray
Highlights & Details
- Perforated front and rear doors with perforation ratio of 65%
- Easy to remove and lockable side walls
- Lockable doors on the front and rear with handle
- Antistatic powder coating
- Supplied as a flat pack
Technical specifications
- Load capacity 600 kg
- Product type
19" server rack cabinet
- Rack unit
36 U
- Width
600 mm
- Height
1766 mm
- Depth
1000 mm
- Material
Steel
- Dim
(W x H x D) 600 x 1766 x 1000 mm
- Weight
104.9 kg
- Factory colour
Grey
- Rack size
483 mm (19")
- Product type description
Rack
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2126218 Intellinet 19" Serverschrank Basic Line 36 HE 1766x600x1000mm Flatpack Traglast 600kg grau 19" server rack cabinet (W x
Description
The Basic Line of the Intellinet server cabinets offers you a flexible, comprehensive and economical solution for server installations.
There are a number of 19" options available for the enclosures. From 26 to 42 height units, a mounting depth of 1000 mm as well as in black (RAL9005) or gray (RAL7035) we offer you suitable for every requirement. The lockable side walls and door locks with multi-point locking keep your expensive network equipment securely locked. Perforation at the front and back side also provides for optimal air circulation.
We pay attention to good quality in materials and workmanship. This includes a cold-rolled steel frame, galvanized 19” rails, antistatic powder coating on all sides and a load capacity of up to 600 kg.
This text is machine translated.
There are a number of 19" options available for the enclosures. From 26 to 42 height units, a mounting depth of 1000 mm as well as in black (RAL9005) or gray (RAL7035) we offer you suitable for every requirement. The lockable side walls and door locks with multi-point locking keep your expensive network equipment securely locked. Perforation at the front and back side also provides for optimal air circulation.
We pay attention to good quality in materials and workmanship. This includes a cold-rolled steel frame, galvanized 19” rails, antistatic powder coating on all sides and a load capacity of up to 600 kg.
This text is machine translated.
Features
- 19"
- 36 height units
- Color: Gray RAL7035
- Slots for cable entry and cooling units
Scope of delivery
- 19" server rack Basic Line
- 4 depth-adjustable mounting rails
- 4 levelling feet
- Fitting Material
