Intellinet 24-Port Cat6a Patchpanel geschirmt 1HE Kabeleinführung 90° abgewinkelt grau 24 ports Patch panel 483 mm (19")
EAN:
Part number:
Item no:

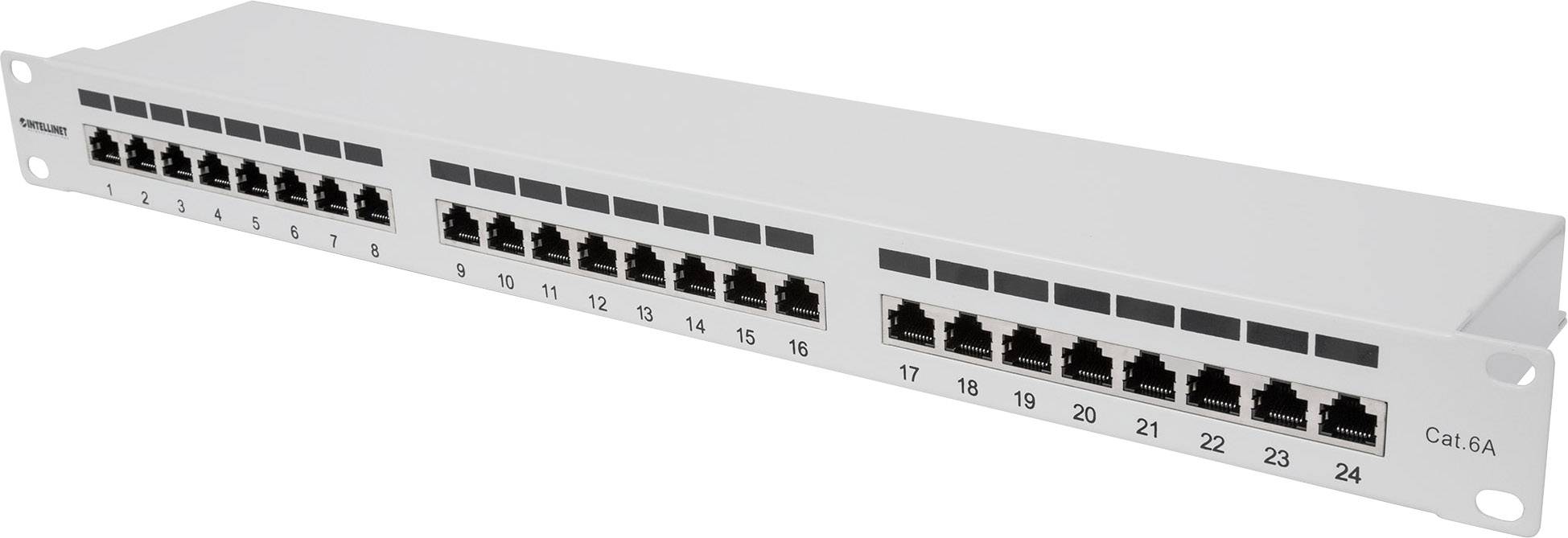

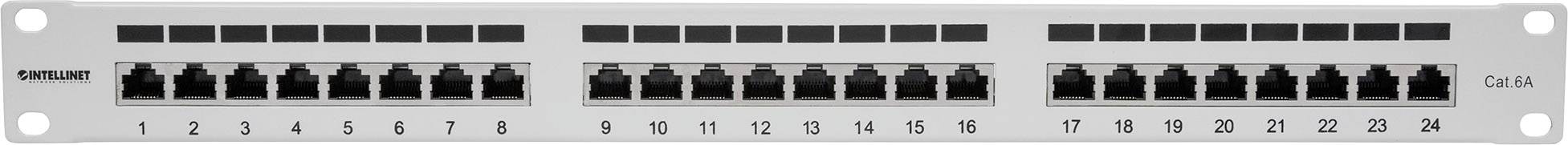

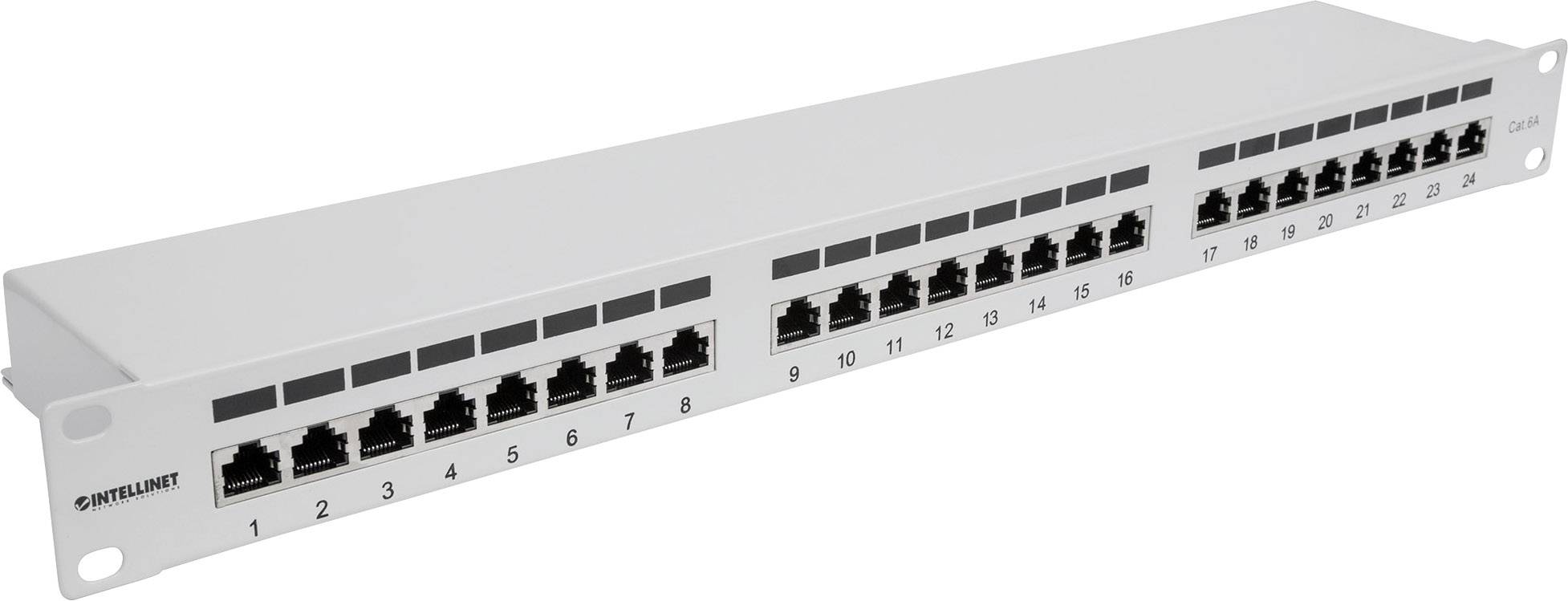

INTELLINET 24-Port Cat6a patch panel shielded FTP 1 HE terminal strips with 90 degree angled cable entries, gray
Highlights & Details
- Contacts coated with at least 3 μm gold for maximum connection quality Of your network cables
- Terminal strips with 90 degree angled cable entries for easy installation
- Suitable for Krone LSA+ insertion tools
- Suitable for stranded and solid wire cables from 22 to 24 AWG
- Suitable for shielded Cat6a network cable (FTP)
Technical specifications
- Product type
Patch panel
- Rack size
483 mm (19")
CAT 6A
- Rack unit
1 U
- Transfer rate
1 GBit/s
- Port
24 ports
- Patch panel design
Equipped
- Connection method
RJ45, auto-negotiation
- Width
482 mm
- Height
45 mm
- Depth
99 mm
- Factory colour
Grey (RAL 7035)
- Suitable for (cabinet depths)
300 mm
- Material
PBT
Plastic
- Weight
1.76
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2356839 Intellinet 24-Port Cat6a Patchpanel geschirmt 1HE Kabeleinführung 90° abgewinkelt grau 24 ports Patch panel 483 mm (19")
Description

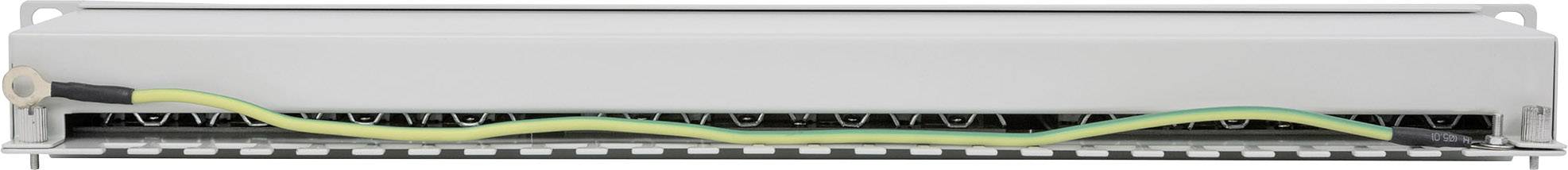

Patch panels form the backbone of your network – with this shielded 24-port Cat6a patch panel you can trust in the highest quality and reliability. Powder-coated, extra-thick steel, strong shielding and 3 μm gold-plated contacts ensure maximum signal integrity. A grounding cable is included in the delivery.
This text is machine translated.
This text is machine translated.
Features
- IEEE 802.3i 10Base-T Ethernet
- IEEE 802.3u (100Base-TX Fast Ethernet).
- IEEE 802.3ab (1000Base-T Gigabit Ethernet)
- Certificates
- UL
- RoHS
- CE
- General
- Horizontal distance between left and right mounting hole: 465 mm
- Vertical distance between upper and lower mounting hole: 32 mm
- Operating temperature: 0 - 70°C
Scope of delivery
- 24-port Cat6a patch panel
- PG cable
- Quick guide
