Intellinet 507349 SC Duplex Network media converter 1 GBit/s
EAN:
Part number:
Item no:

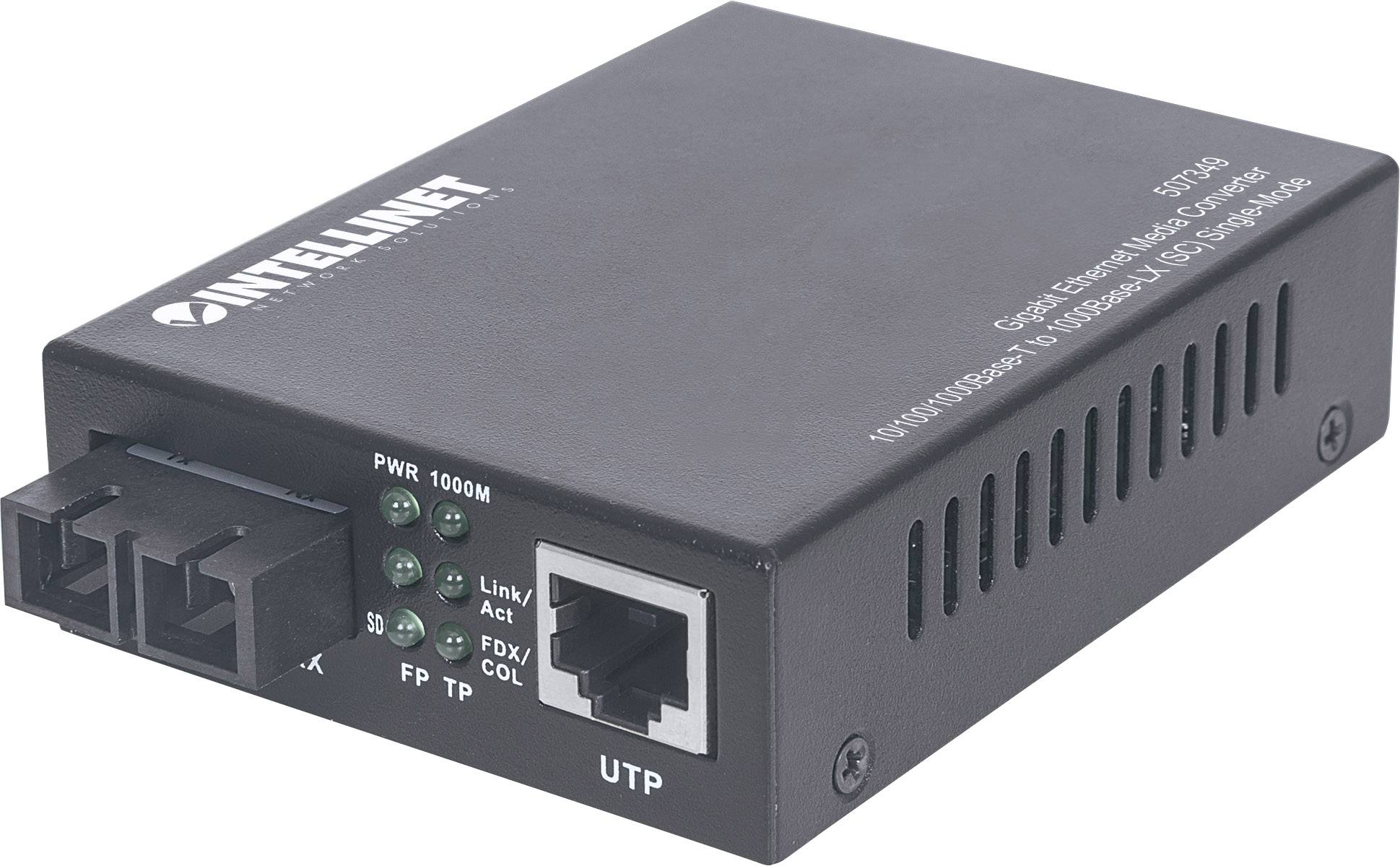

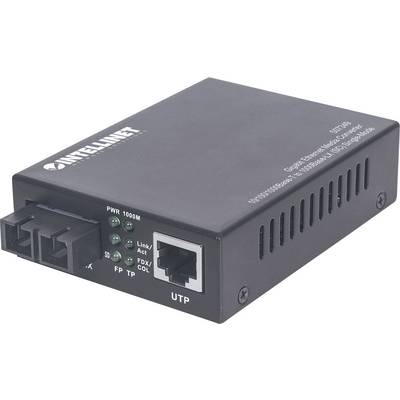

Intellinet Gigabit Ethernet Single-mode media converter
Highlights & Details
- SC port (single-mode) allows a range of up to 20 km
- Data transfer rate: 10/100/1000 Mbit/s
- 10/100/1000 Mbit/s auto-sensing Gigabit RJ45 port with Auto MDI/MDI-X support
- RJ45 port with Auto MDI/MDI-X support and auto negotiation
- 1000BASE-LX Single Mode SC duplex port
- Wavelength of 1310 nm

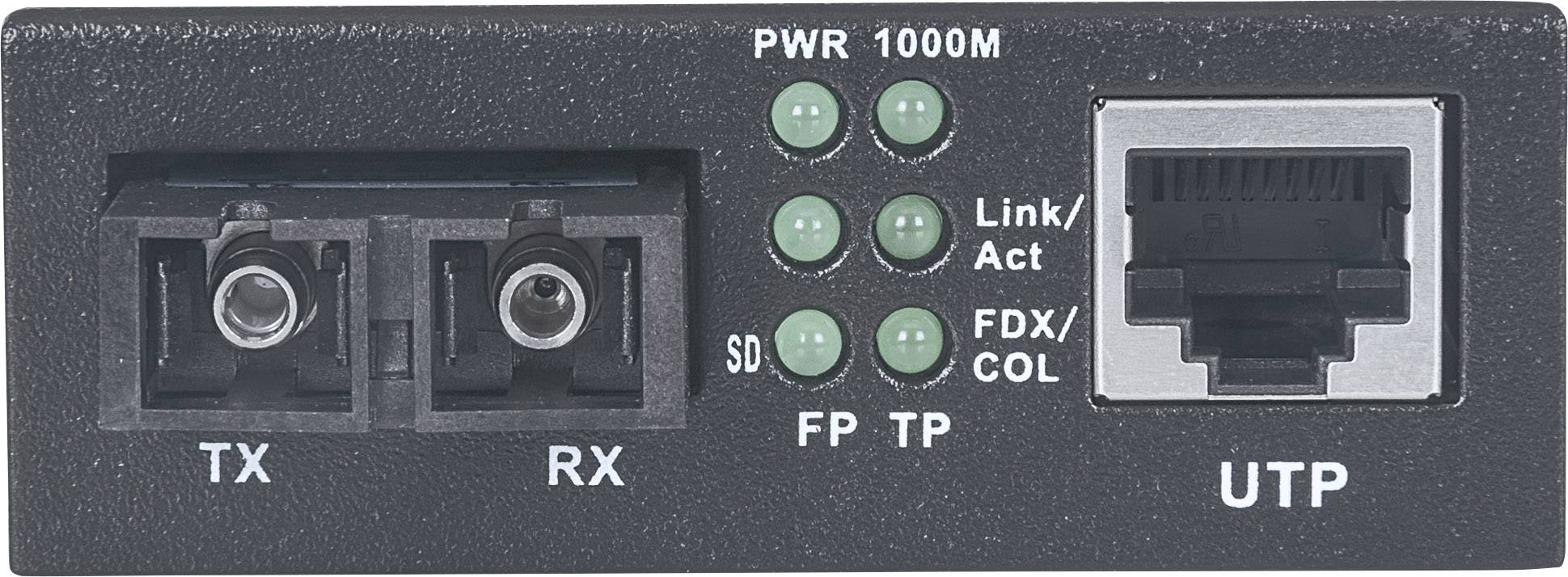

- Status LEDs for power and Link/TX for both ports

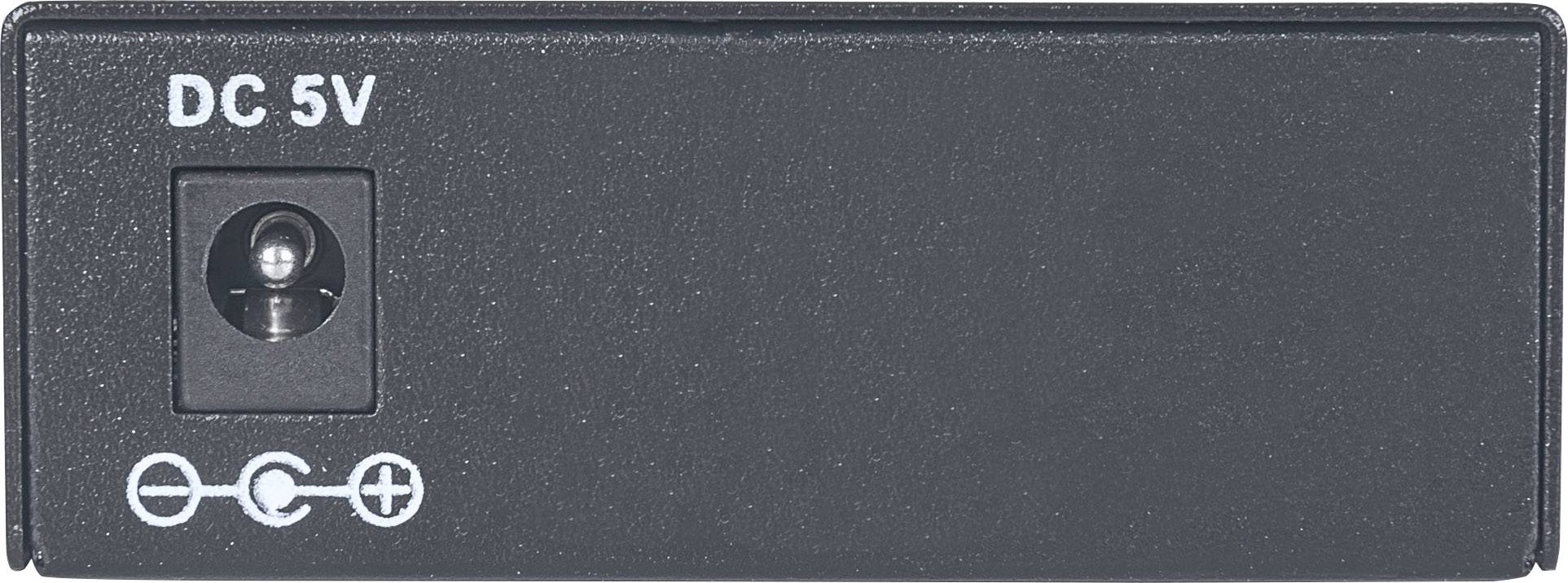

- External power supply, 5 V
- Can be used as an independent converter or with the 14-slot media converter housing, model 507356
Technical specifications
- Product type
Network media converter
- Interfaces
1x LAN (10/100/1000 Mbps)
1x SC Duplex
- Link
SC Duplex
- Transfer rate
1 GBit/s
- Length
70 mm
- Width
105 mm
- Height
26 mm
- Weight
0.18
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1437184 Intellinet 507349 SC Duplex Network media converter 1 GBit/s
Description
The Intellinet media converter integrated optical fiber cable into an existing copper cable network for a LAN upgrade with low cost and effort. He works transparent - the power and functionality remain unchanged, the network is merely the support of two media-copper and fiber-optic expanded.
Higher range
Due to the fiber-optic support, even the remotest workgroups in your network. Without the need for additional access points are easily building-to-building connections are possible.
Flexibility in the cabling
Due to its compact design, this converter in both desktop applications with limited space as well as in wall distributors can be used. Several converter can also be in a intellinet 19" Media Converter Housing.
This text is machine translated.
Higher range
Due to the fiber-optic support, even the remotest workgroups in your network. Without the need for additional access points are easily building-to-building connections are possible.
Flexibility in the cabling
Due to its compact design, this converter in both desktop applications with limited space as well as in wall distributors can be used. Several converter can also be in a intellinet 19" Media Converter Housing.
This text is machine translated.
Scope of delivery
- Gigabit Ethernet Single-mode media converter
- Power supply unit
- User manual.
