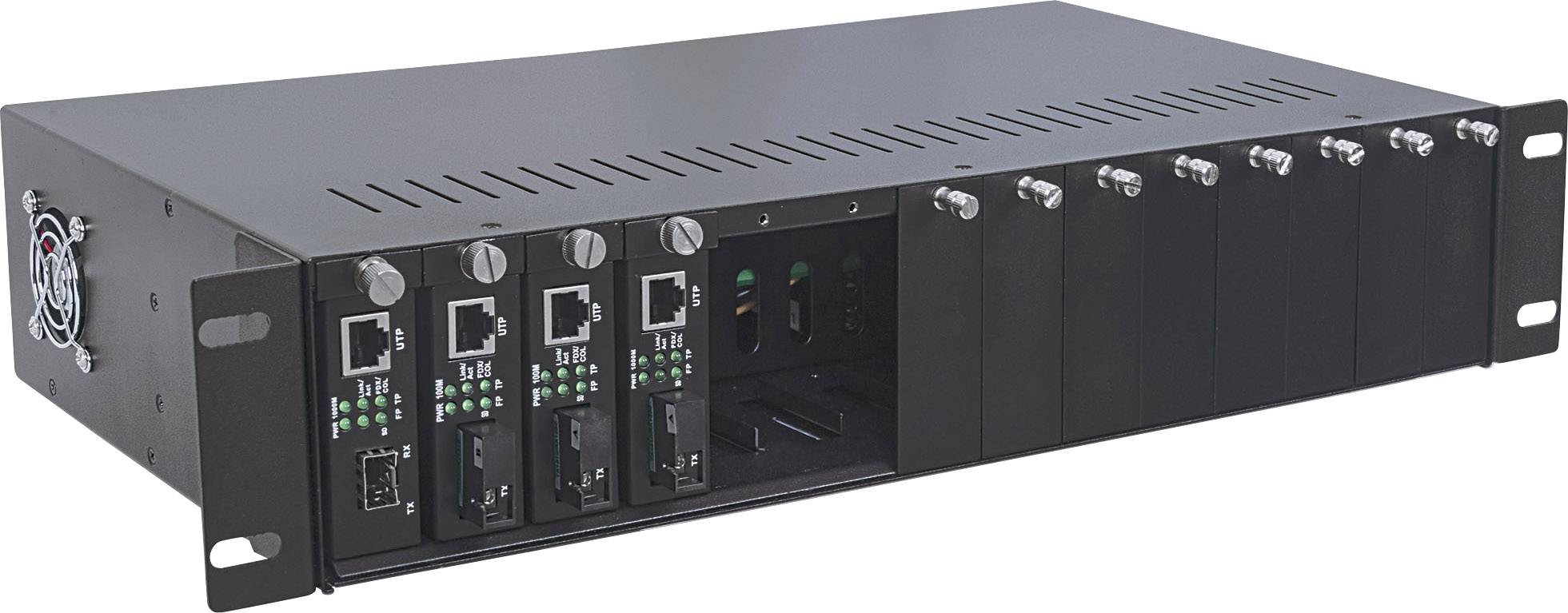

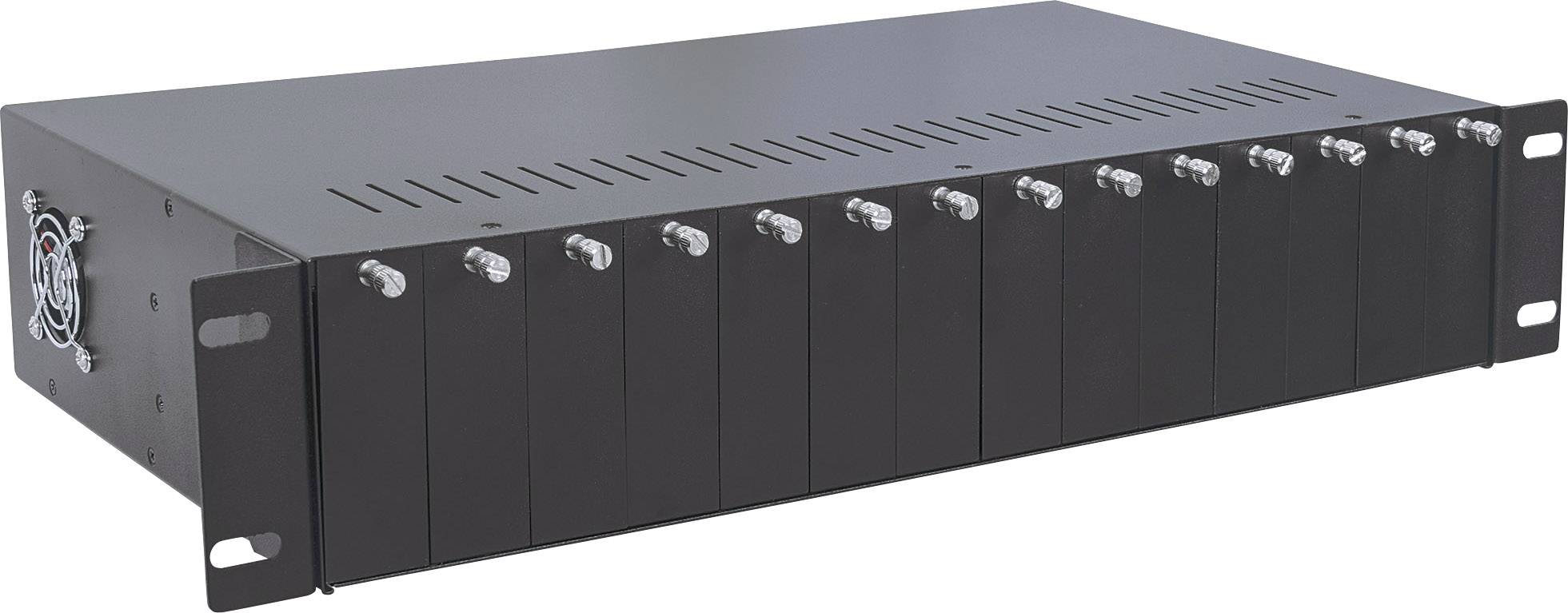

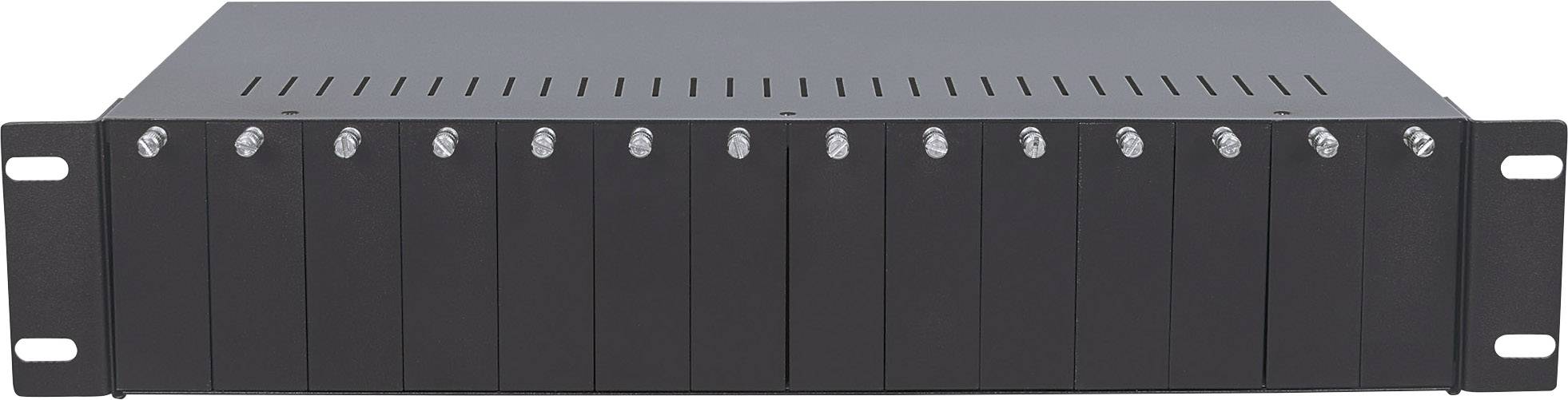

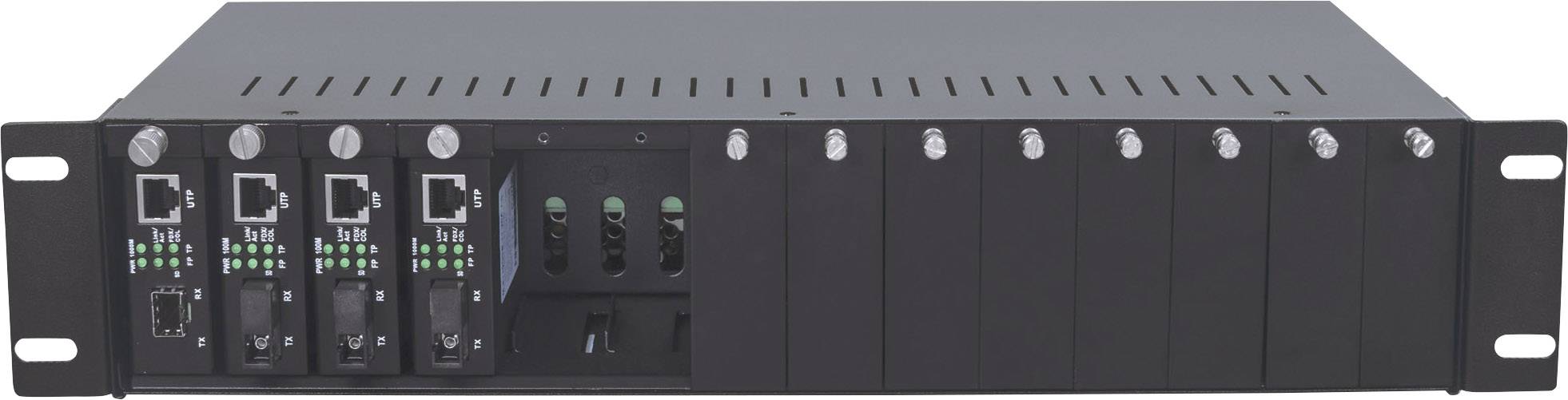

Intellinet 507356 LAN Network media converter case 10 / 100 / 1000 MBit/s
EAN:
Part number:
Item no:
INTELLINET 14-slot media converter housing 19" rack mount, 2 HE, 2 power supplies (1 redundant) included in delivery
Highlights & Details
- High-quality 19" steel housing

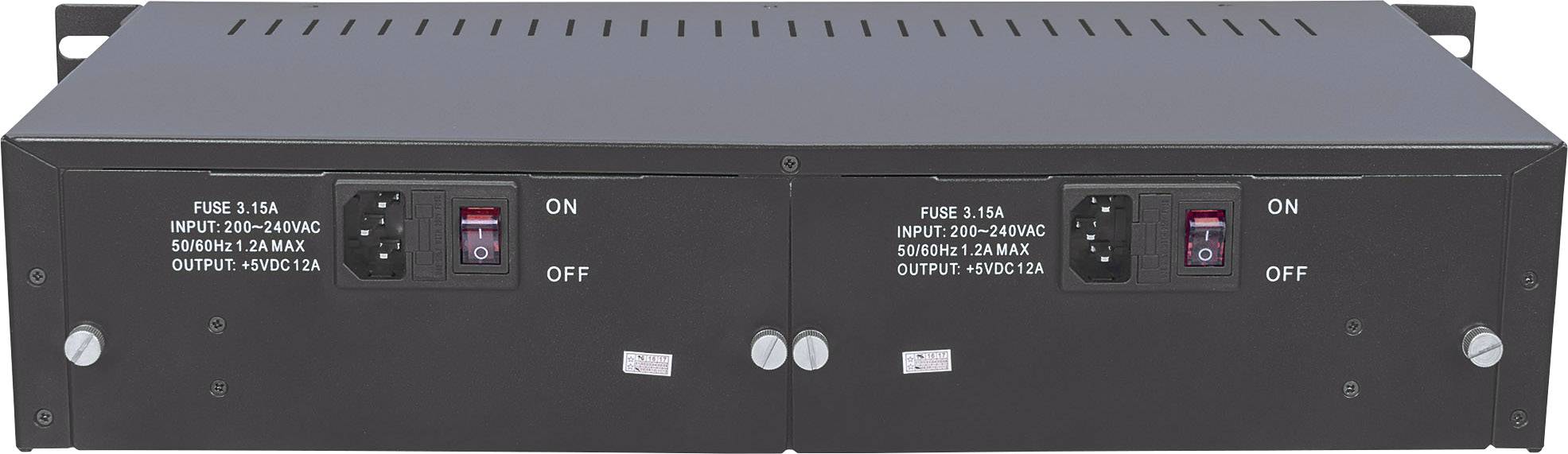

- Two internal 100 – 260V universal switching power supplies to prevent network failures and protect your converters
- Power supplies support load balancing and contain fuses to protect against overvoltage and short circuits
- Two high-performance fans provide for perfect cooling and air circulation
- Slot power insulation guarantees electrical insulation of all slots
Technical specifications
- Product type
Network media converter case
- Link
LAN
- Transfer rate
10 / 100 / 1000 MBit/s
- Length
440 mm
- Width
231 mm
- Height
90 mm
- Weight
4700 g
- Factory colour
Black
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2160700 Intellinet 507356 LAN Network media converter case 10 / 100 / 1000 MBit/s
Description
Reliable and practical, this housing enables the housing and central power supply of up to 14 media converters, saving you space and power cables. To ensure resiliency, the enclosure is equipped with a second redundant power supply. Thanks to the hot-swap function, you can exchange media converters at any time without having to switch off the housing. The two powerful fans provide for a long life of your network equipment.
This text is machine translated.
This text is machine translated.
Features
- Capacity: 14 slots for up to 14 media-verter
- Occupies two height units (2HE)
- Certificates: FCC Class A, CE
- Compatibility
- Fast Ethernet media converter 506502
- Fast Ethernet media converter 506519
- Fast Ethernet media converter 507332
- WDM Fast Ethernet Media Converter 510530
- WDM Fast Ethernet Media Converter 510547
- Gigabit Ethernet media converter 506533
- Gigabit Ethernet media converter 507349
- Gigabit Ethernet media converter 510493
- WDM Gigabit Ethernet Media Converter 545068
- WDM Gigabit Ethernet Media Converter 545075
- LED for each power supply
- Input 100 – 260 VAC
- Output: 5 VDC
- Other details
- Material: Aluminum/steel
- Operating temperature: 0 – 50°C
- Humidity: 10 – 95%
- Storage temperature: -20 – 85°C.
Scope of delivery
- 14-slot media converter chassis with 2 integrated power supplies (1 redundant)
- 14 media converter holders
- User manual
