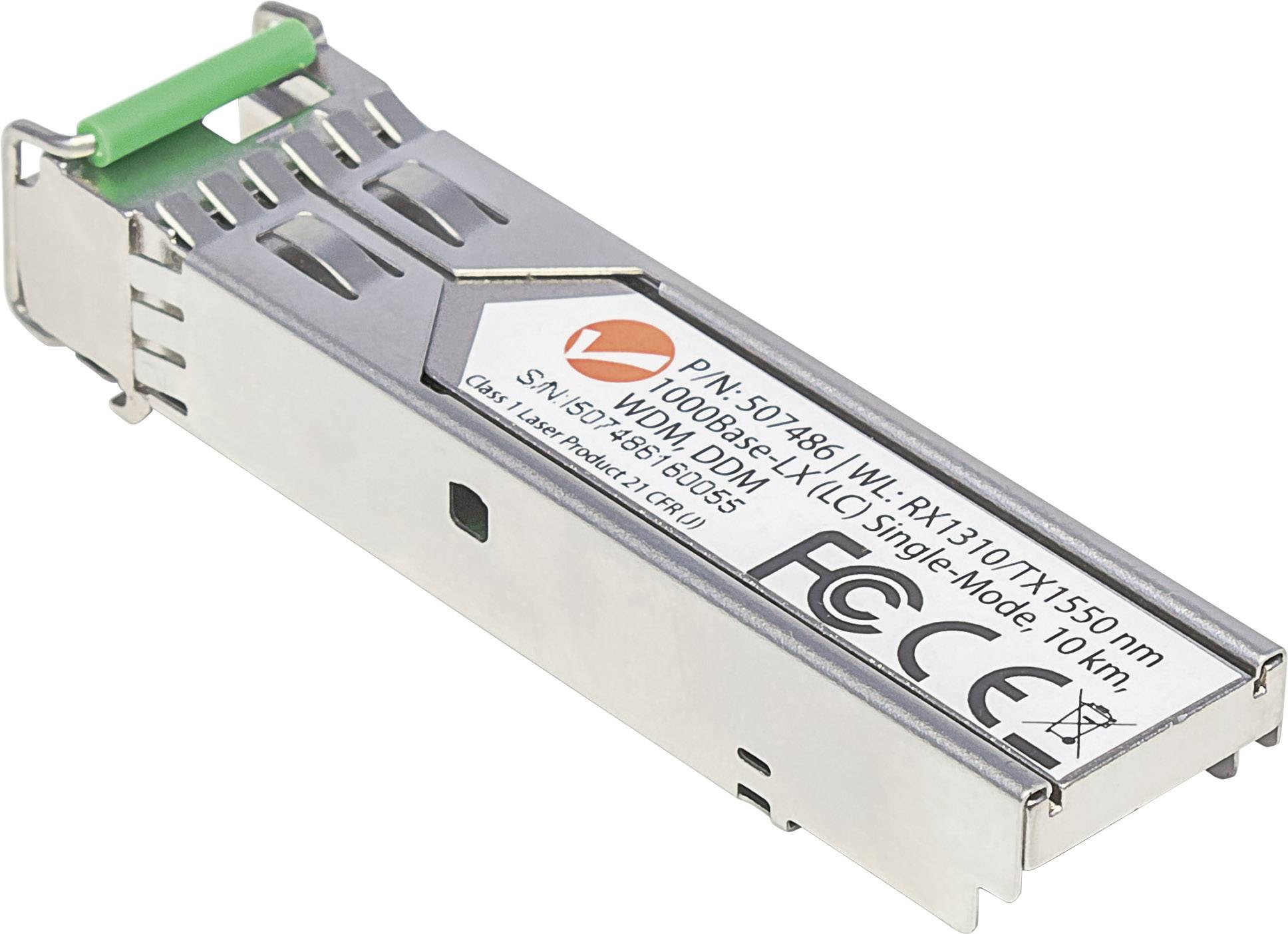

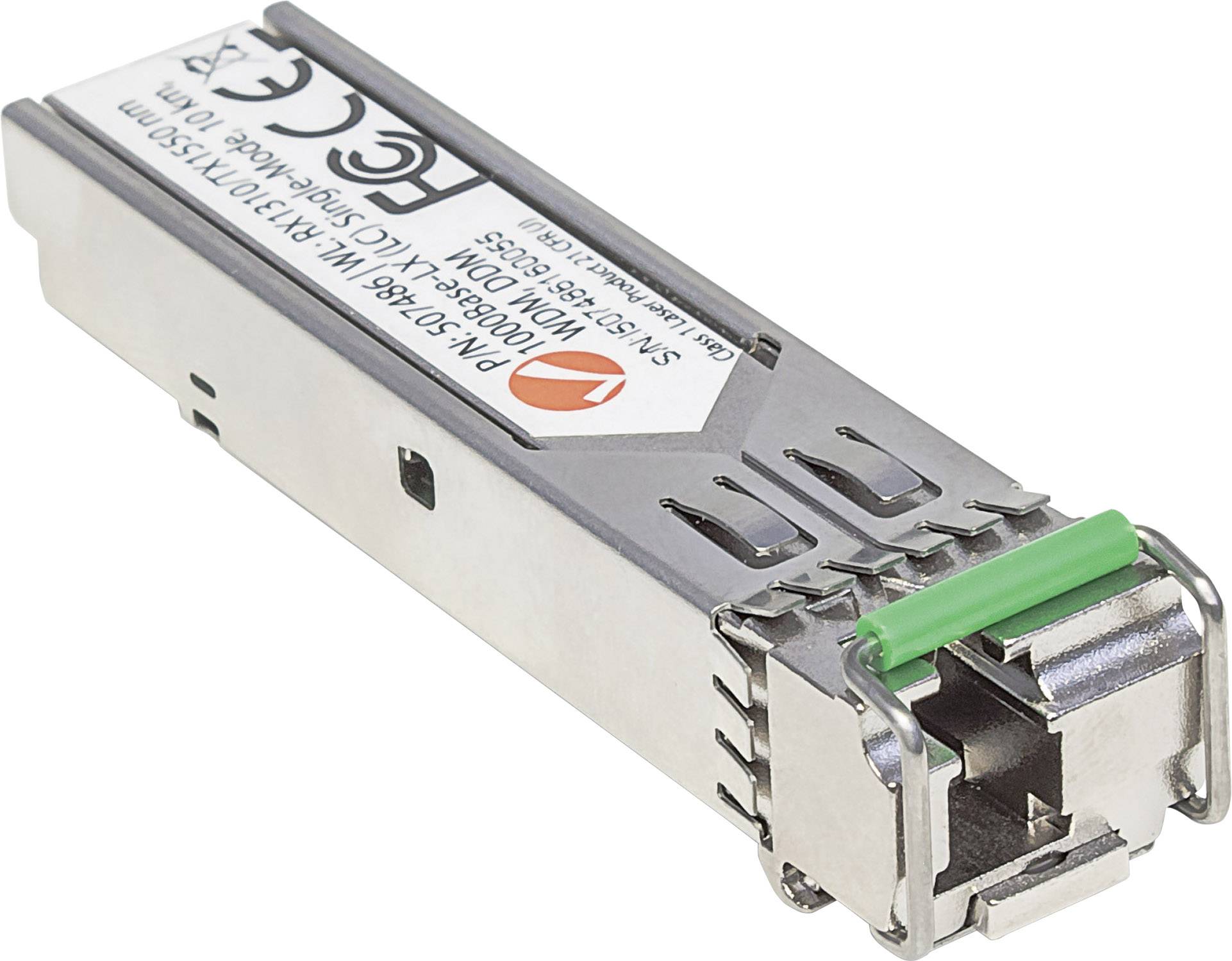

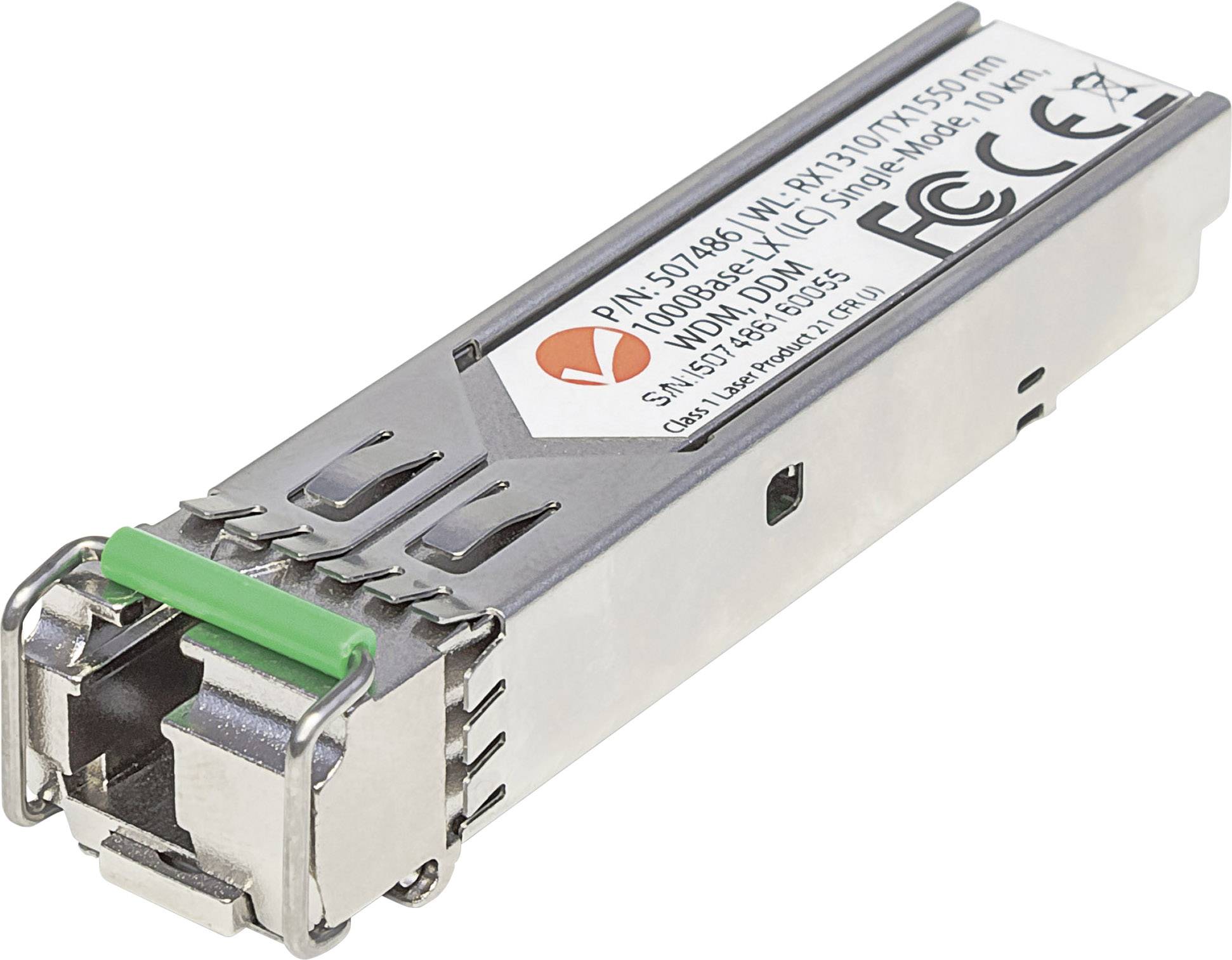

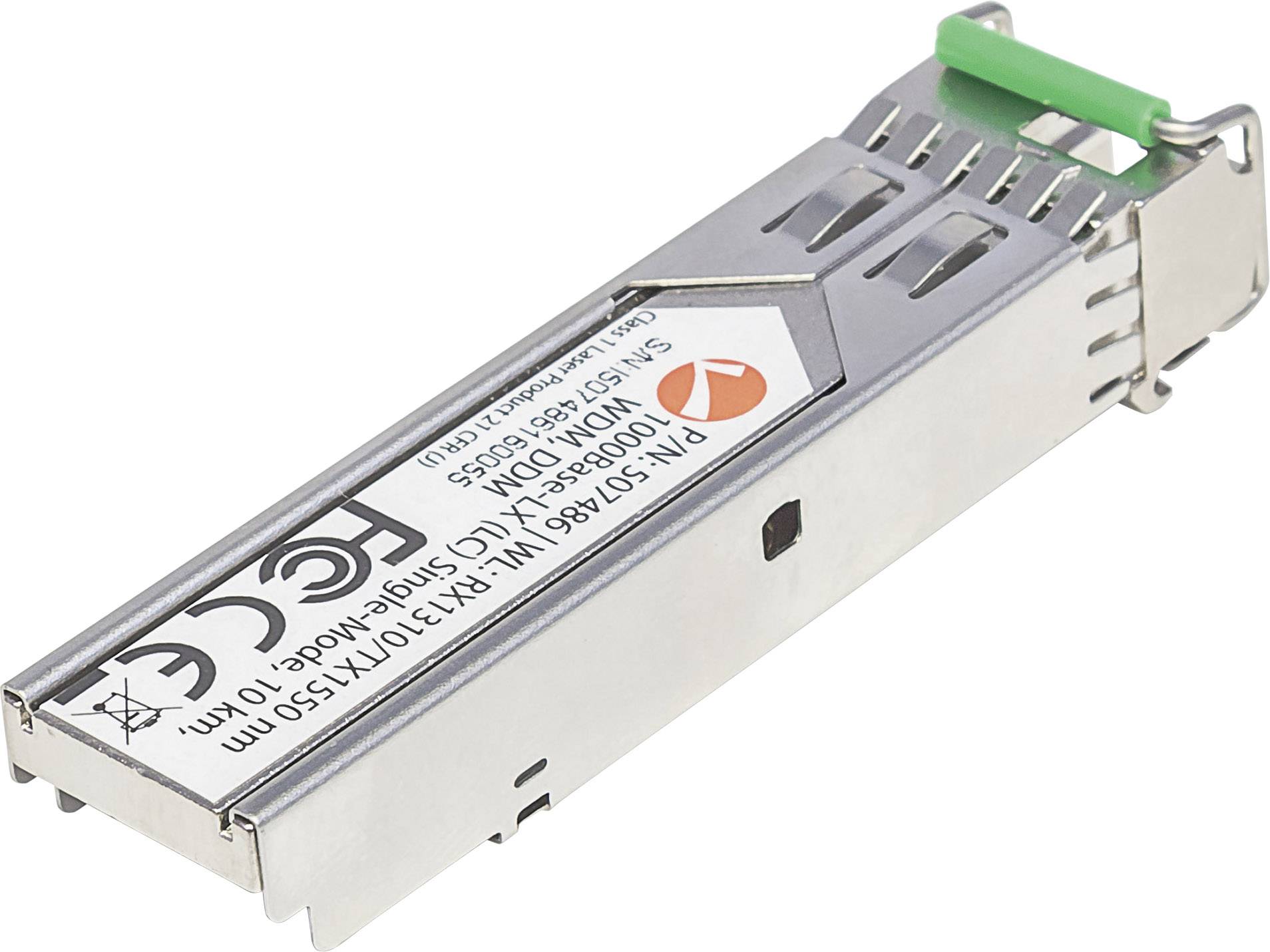

Intellinet 507486 507486 SFP transceiver module 1000 MBit/s 10 km Module type LX
EAN:
Part number:
Item no:
Datasheet (PDF)
Intellinet Gigabit SFP mini-GBIC Transceiver WDM bi-directional for FIBER OPTIC CABLE 1000BASE-LX (LC) single-mode port 10 km WDM (RX1310/TX1550)
Highlights & Details
- Universally compatible with all Intellinet Gigabit switches with SFP module ports as well as to all Cisco or MSA-compliant SFP ports
- Requires the use with bi-directional Gigabit WDM SFP transceiver model 507509 Mini-GBIC
- WDM technology (wave length division multiplexing) uses only a fiber for data transmission and reception on separate WAVELENGTHS
- Shaft lengths: Receive (RX), transmit (TX), 1550 nm 1310 nm;
- Supports Digital diagnostics monitoring (DDM)
Technical specifications
- Product type
SFP transceiver module
- Transfer rate
1000 MBit/s
- Interfaces
LC
- Module type
LX
- Distances up to
10 km
- LAN transfer rate
1000 MBit/s
- Weight
0.037
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1695589 Intellinet 507486 507486 SFP transceiver module 1000 MBit/s 10 km Module type LX
User & Safety Instructions
User & Safety Instructions 1695589 Intellinet 507486 507486 SFP transceiver module 1000 MBit/s 10 km Module type LX
Description
Flexible fiber-optic interface with full Cisco Compatibility
The Intellinet mini-GBIC transceiver offer one of the best price-performance ratios in the industry. The biggest advantage is the in networks such an important compatibility. In contrast to many other suppliers are the intellinet GBICs not only with switches the own brand compatible, but also with other MSA-compliant brands as well as universally with all Cisco switches. The physical quality is second to none - the metal casing reduces electromagnetic interference and increases the life of the product.
Compact format for fiber connections
Our Transceiver correspond to the mini-GBIC form factor, which makes them ideal for environments with fiber-optic connection requirements makes that only have limited space in server room or network cabinet.
Hot Gable
The Intellinet Gigabit SFP transceiver for mini-GBIC fiber-optic cables are completely "hot-pluggable", i.e. they can be installed without the network switch must be restarted. This will not interrupt the traffic in your company.
Digital Diagnostic Monitoring (DDM)
Our transceivers support digital diagnostics monitoring (DDM), also known as Digital Optical Monitoring (cathedral). These functions allow you to monitor the parameter of the SFP in real-time - this includes optical output power, optical input power, temperature, transceiver supply voltage and more.
This text is machine translated.
The Intellinet mini-GBIC transceiver offer one of the best price-performance ratios in the industry. The biggest advantage is the in networks such an important compatibility. In contrast to many other suppliers are the intellinet GBICs not only with switches the own brand compatible, but also with other MSA-compliant brands as well as universally with all Cisco switches. The physical quality is second to none - the metal casing reduces electromagnetic interference and increases the life of the product.
Compact format for fiber connections
Our Transceiver correspond to the mini-GBIC form factor, which makes them ideal for environments with fiber-optic connection requirements makes that only have limited space in server room or network cabinet.
Hot Gable
The Intellinet Gigabit SFP transceiver for mini-GBIC fiber-optic cables are completely "hot-pluggable", i.e. they can be installed without the network switch must be restarted. This will not interrupt the traffic in your company.
Digital Diagnostic Monitoring (DDM)
Our transceivers support digital diagnostics monitoring (DDM), also known as Digital Optical Monitoring (cathedral). These functions allow you to monitor the parameter of the SFP in real-time - this includes optical output power, optical input power, temperature, transceiver supply voltage and more.
This text is machine translated.
Features
- IEEE 802.3z (Fiber Optic Gigabit Ethernet)
- Supported Media: 1000BASE-LX single mode 9 / 125 µm fiber
- Connection: LC port, 1000BASE-LX
- Range: 10 km
- Wavelength:
- Receiver (RX): 1310 nm
- Transmission (TX): 1,550 nm
- Fiber Power Budget:
- Max. TX power: -3 dB
- Min. TX power: -8dB
- Sensitivity: -24dB
- Power Budget: 16 dB
- Design: SFP (Small Form-Factor Pluggable), 1.25 Gbps
- Voltage: 3.3 V
- Consumption: 1.0 W (max.)
- Operating temperature: 0 - 70°C
- Humidity: 10 - 85%, non-condensing
- Storage temperature: -40 °C - 85 °C
