Intellinet 507844 KVM changeover switch VGA 600 x 480 Pixel, 800 x 600 Pixel, 1024 x 720 Pixel, 1200 x 800 Pixel, 1280 x
EAN:
Part number:
Item no:
Highlights & Details

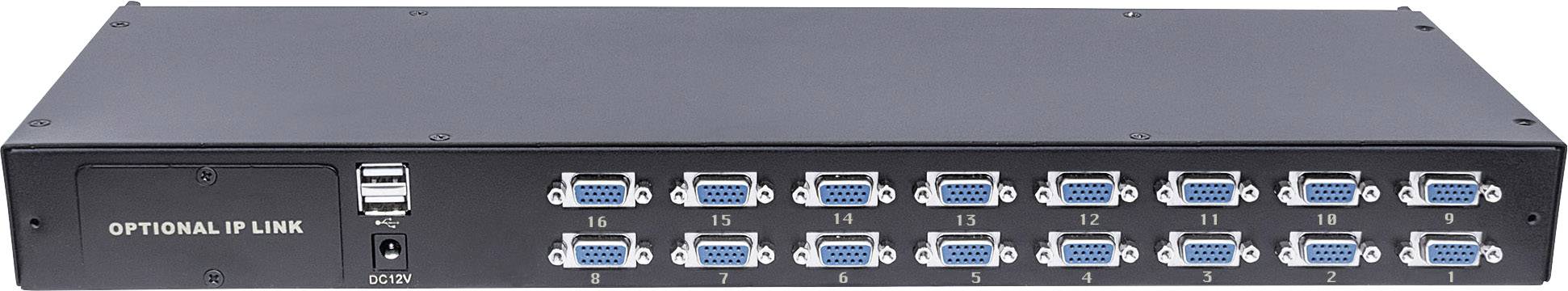

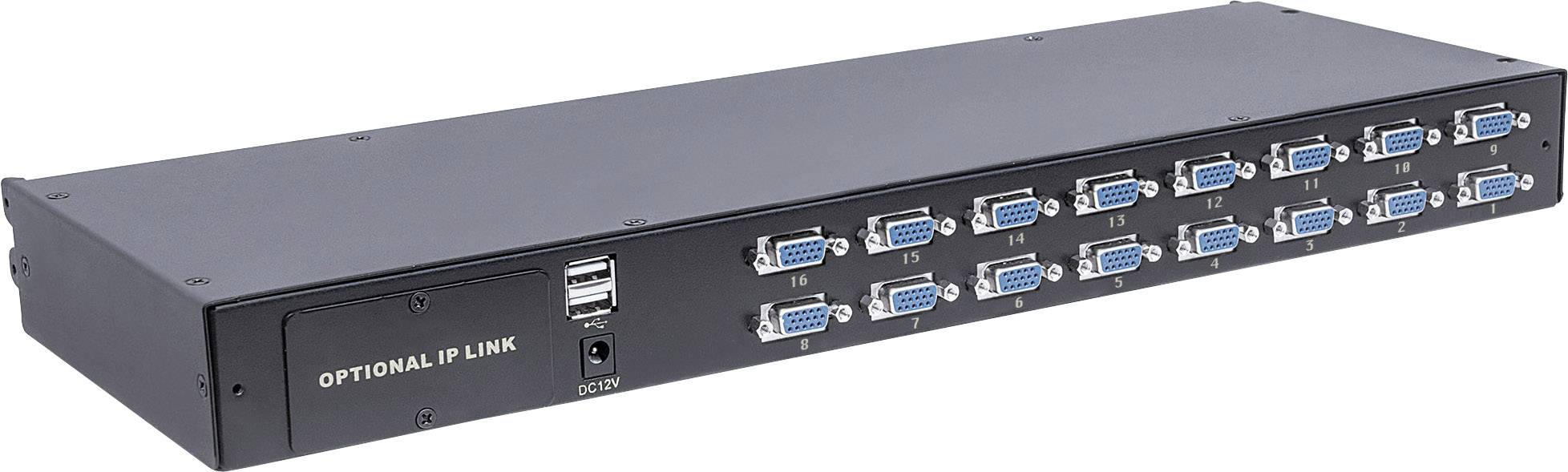

Intellinet 507844 KVM changeover switch
- Modular KVM switch suitable for intellinet Rack Mount LCD consoles
- Supports USB or PS/2 and VGA
- 16 x 4-in-1-Connection cable with USB and PS/2 interfaces are included in the delivery
- Easy to set up
Technical specifications
- Product type
KVM changeover switch
- No. of switchable PCs
16
- Video via
VGA
- Video resolution
600 x 480 Pixel
800 x 600 Pixel
1024 x 720 Pixel
1200 x 800 Pixel
1280 x 720 Pixel
1440 x 720 Pixel
1620 x 1080 Pixel
1920 x 1080 Pixel
- No. of USB 2.0 ports
2 x
- Stackable
Yes
- Rack mount option
No
- Switch function
Hot key
- Distributor/switch features
Steel casing
PC-controlled
- Power supply (LOV)
via base station
- Factory colour
Black
- Weight
2.08 kg
- Length
158 mm
- Width
445 mm
- Height
44 mm
- Dim
(L x W x H) 158 x 445 x 44 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1651105 Intellinet 507844 KVM changeover switch VGA 600 x 480 Pixel, 800 x 600 Pixel, 1024 x 720 Pixel, 1200 x 800 Pixel, 1280 x
Description
Please note: This modular KVM switch is required to use the intellinet Rack Mount LCD console 1692532 (17" screen) or 1692533 (19" screen). For more comfort and control of a central PC, you can also optionally, the intellinet IP adapter card 507936.
This text is machine translated.
This text is machine translated.
Features
- 1692533 or 1692532 enables the use of LCD console as a 16-port KVM switch. Can not be used separately.
- Inputs and outputs
- 2 x USB input
- 1x power input
- 16 x VGA output
- 1x adapter slot for optional Intellinet IP adapter card (507936)

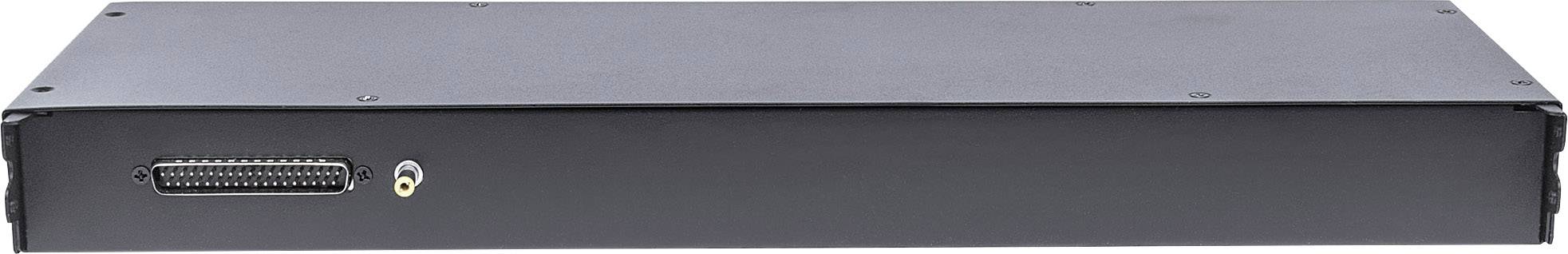

- 1 x 37-pin Current coupling for KVM console
Scope of delivery
- 16 x 4-in-1-Connection cable with USB and PS/2 interfaces
