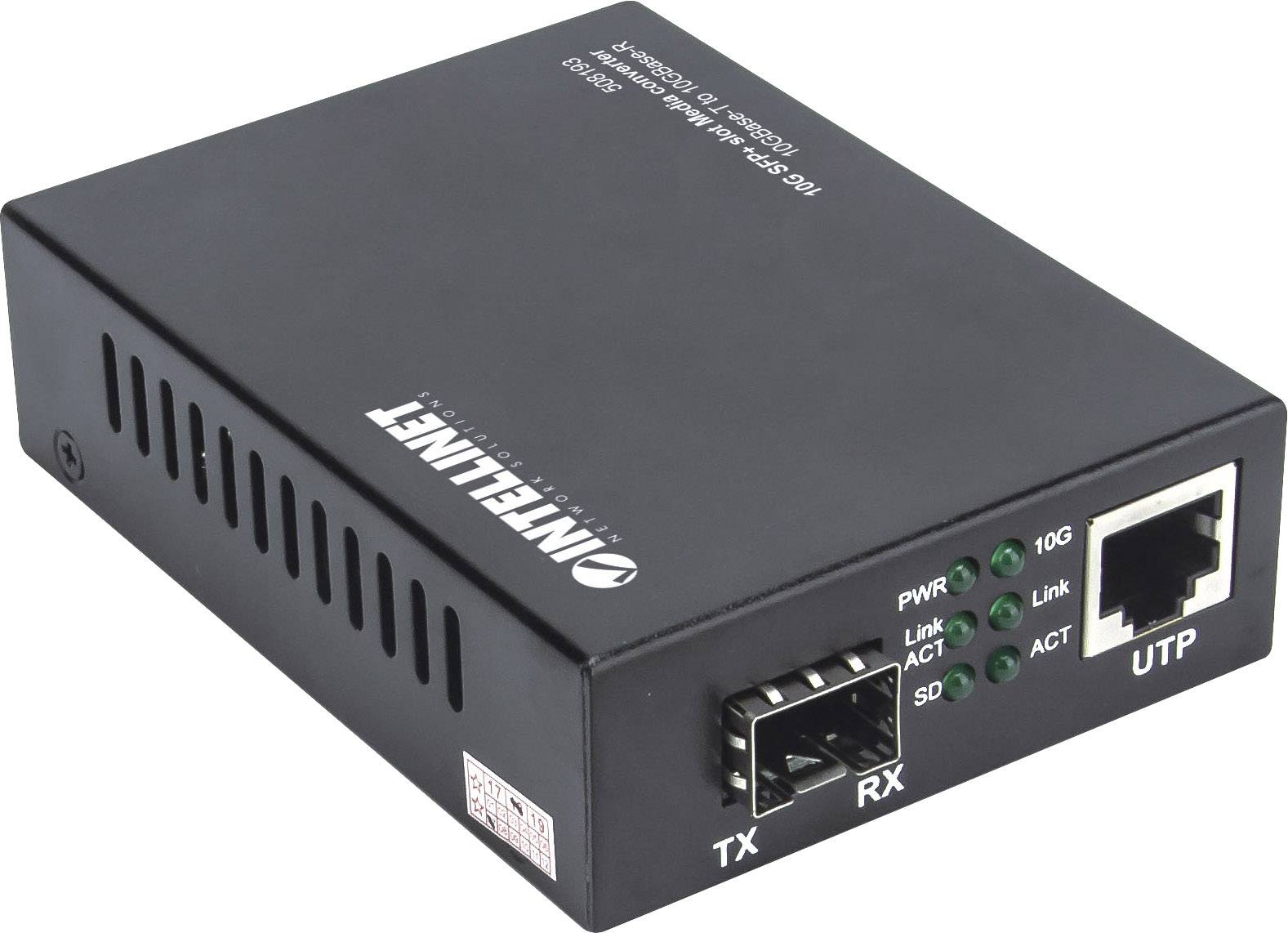

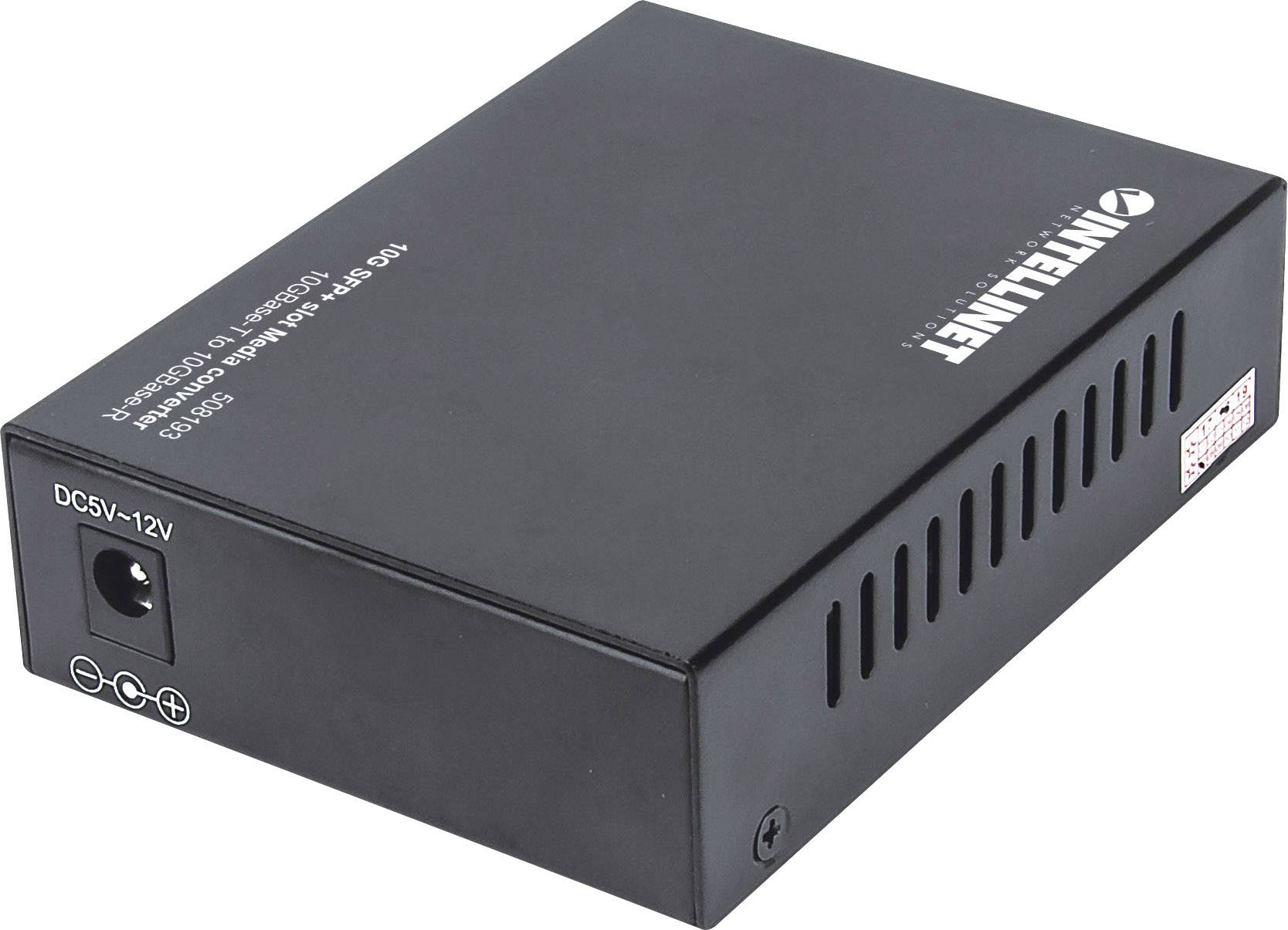

Intellinet 508193 Media converter 10 GBit/s
EAN:
Part number:
Item no:
INTELLINET 10GBase-T on 10GBase-R media converter 1 x 10 GB SFP+ slot, 1 x 10 GB RJ45 port
Highlights & Details
- One 10 GB SFP+ port
- Supports IEEE802.3u, 10GBase-T and 10GBase-FL
- Supports full-duplex or half-duplex mode with autonegotiation
- Status LED for power and connection/TX for both ports
- External 12 volt power supply
Technical specifications
- Product type
Media converter
- Transfer rate
10 GBit/s
- Length
93 mm
- Width
70 mm
- Height
25 mm
- Weight
198 g
- LAN transfer rate
10000 MBit/s
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2160701 Intellinet 508193 Media converter 10 GBit/s
Description
The Intellinet 10GBase-T on 10GBase-R media converter integrates fiber optic cables into an existing copper cable network for low cost and labor LAN upgrades. It works transparently – the performance and functionality remain unchanged, the network is only extended by the support of both media – copper and fiber optic. In addition, the high-performance 10 Gbit/s connection ensures fast and constant data transfers.
Greater range
Fiber-optic support allows remote workgroups to be integrated into your network. Building-to-building connections are thus easily possible without additional access points.
Flexibility in cabling
Due to its compact design, this converter can be used in desktop applications with limited space as well as in wall distributors. Several converters can also be installed in an Intellinet 19" media converter housing.
This text is machine translated.
Greater range
Fiber-optic support allows remote workgroups to be integrated into your network. Building-to-building connections are thus easily possible without additional access points.
Flexibility in cabling
Due to its compact design, this converter can be used in desktop applications with limited space as well as in wall distributors. Several converters can also be installed in an Intellinet 19" media converter housing.
This text is machine translated.
Features
- 1000BASE-T, 2.5GBase-T, 5GBase-T, 10GBase-T, 1000Base-X, 2500Base-X, 5GBase-R, 10GBase-R.
- Supported media: 1000BASE-T: CAT5 UTP/STP, max. 100 m - 2.5GBase-T: CAT5e UTP/STP, max. 50 m - 5GBase-T: CAT5e UTP/STP, max. 50 m - 10GBase-T: CAT6a UTP/STP, max. 50 m

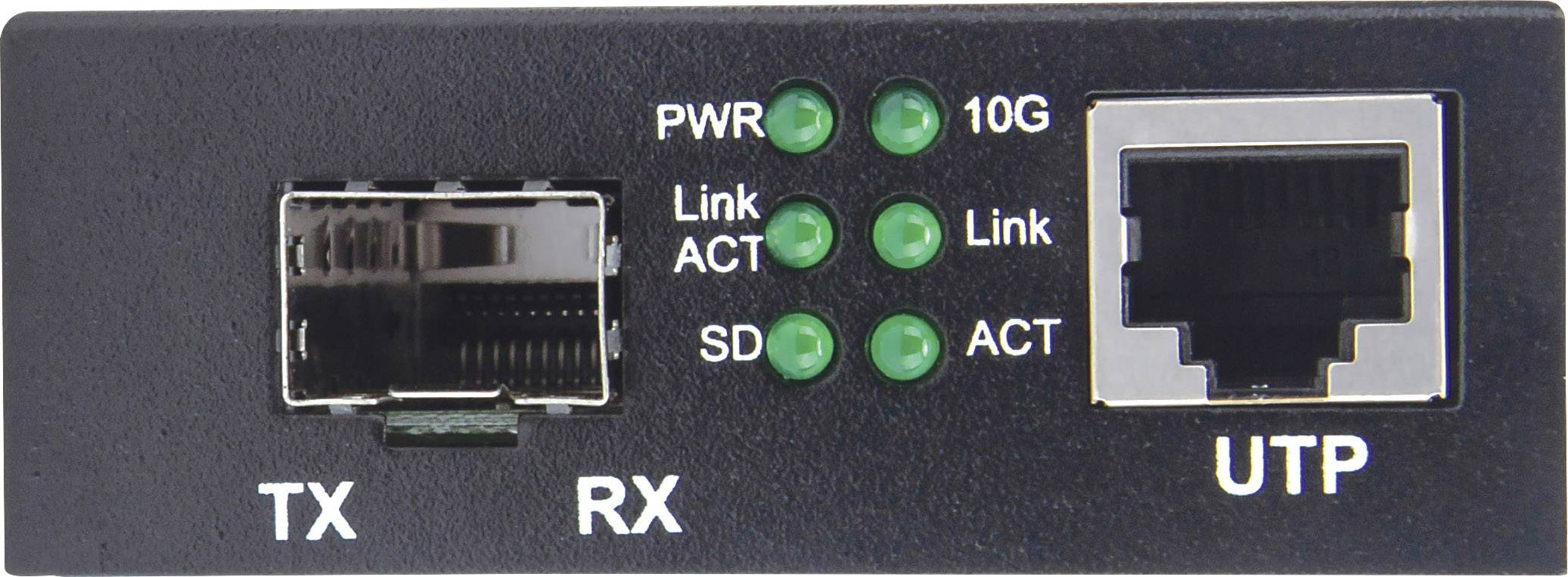

- Ports: 1 x RJ45 port, 10GBase-T - 1 x SFP+ port, 10GBase-FL LEDs
- Power: Link/ACT for RJ45 port; LINK/ACT for SFP+ port
- Power consumption 5 watts (max.)
- Operating temperature: 0 - 55°C
- Humidity: 5 – 80% RH, non-condensing
- Storage temperature -10 to 70°C.
- 10g display
- LED for optical signal input
Scope of delivery
- 10GBASE-T to 10GBase-R media converter
- External mains adapter
- Manual
