Intellinet 508322 1x SC Media converter 10 / 100 MBit/s
EAN:
Part number:
Item no:

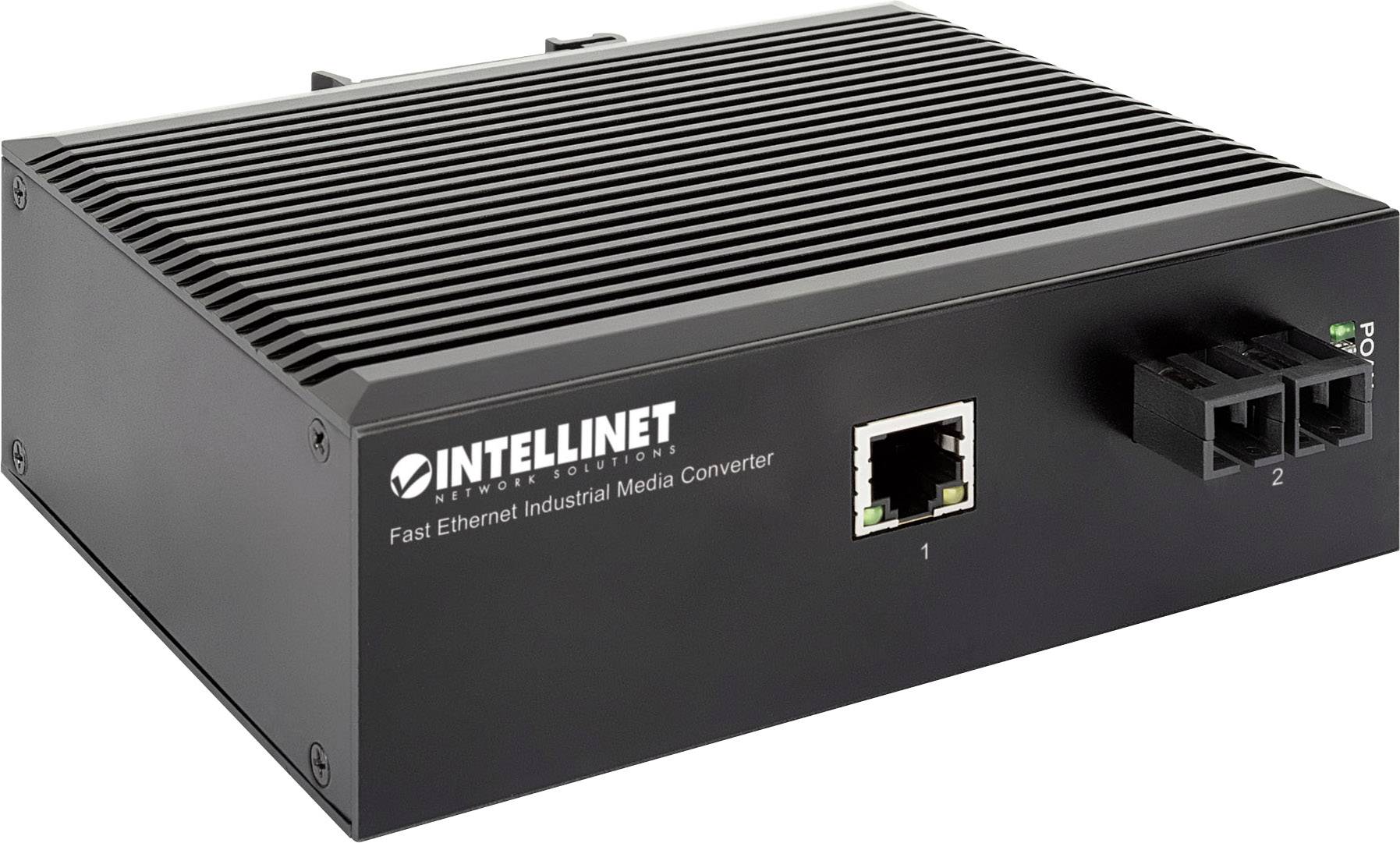

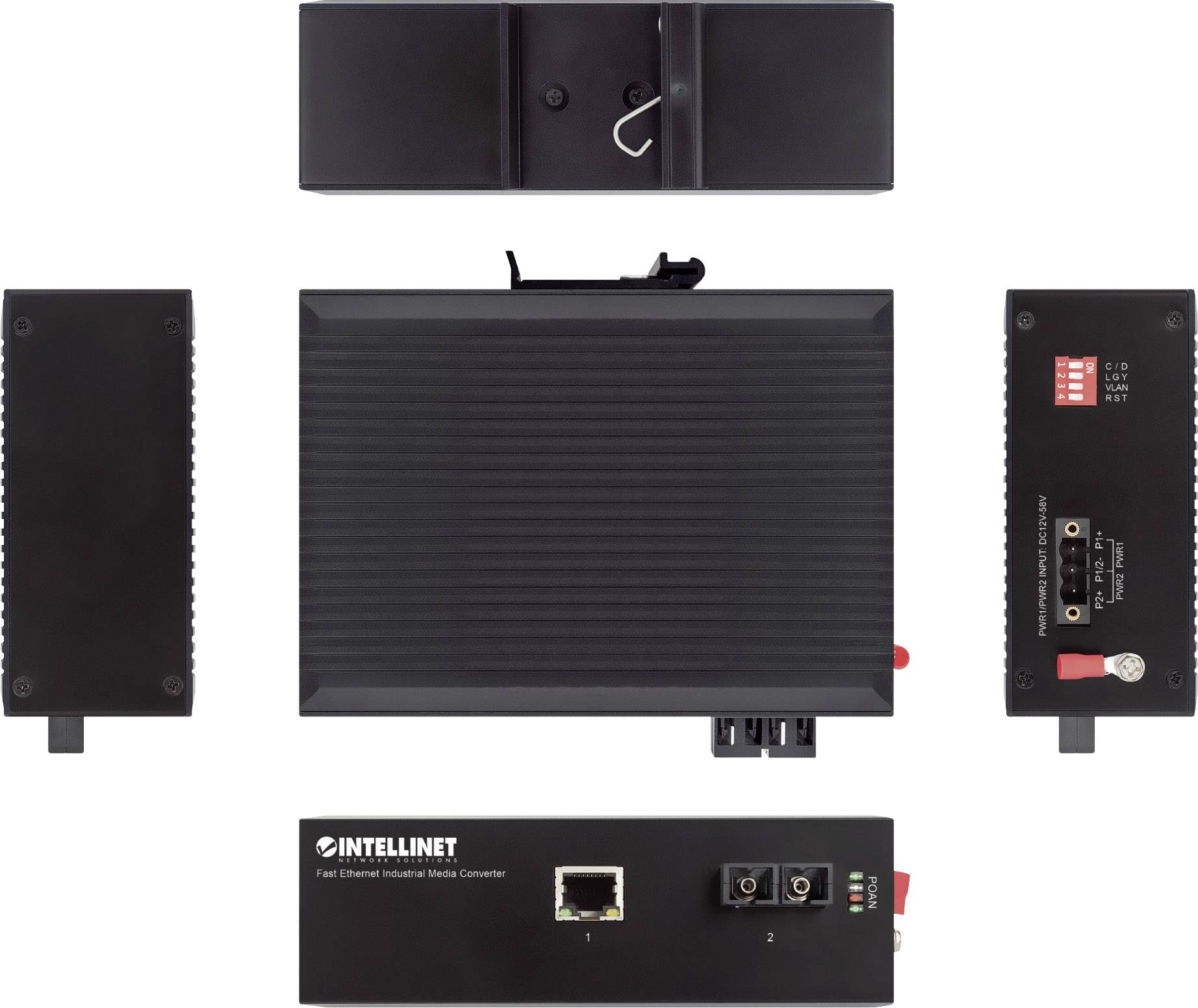

INTELLINET Fast Ethernet Industrial Media Converter 100Base-TX to 100Base-FX (SC) single mode, 20 km, metal housing with protection class IP40, DIN-rail mounting
Highlights & Details
- Slim metal casing with protection class IP40 for demanding industrial environments

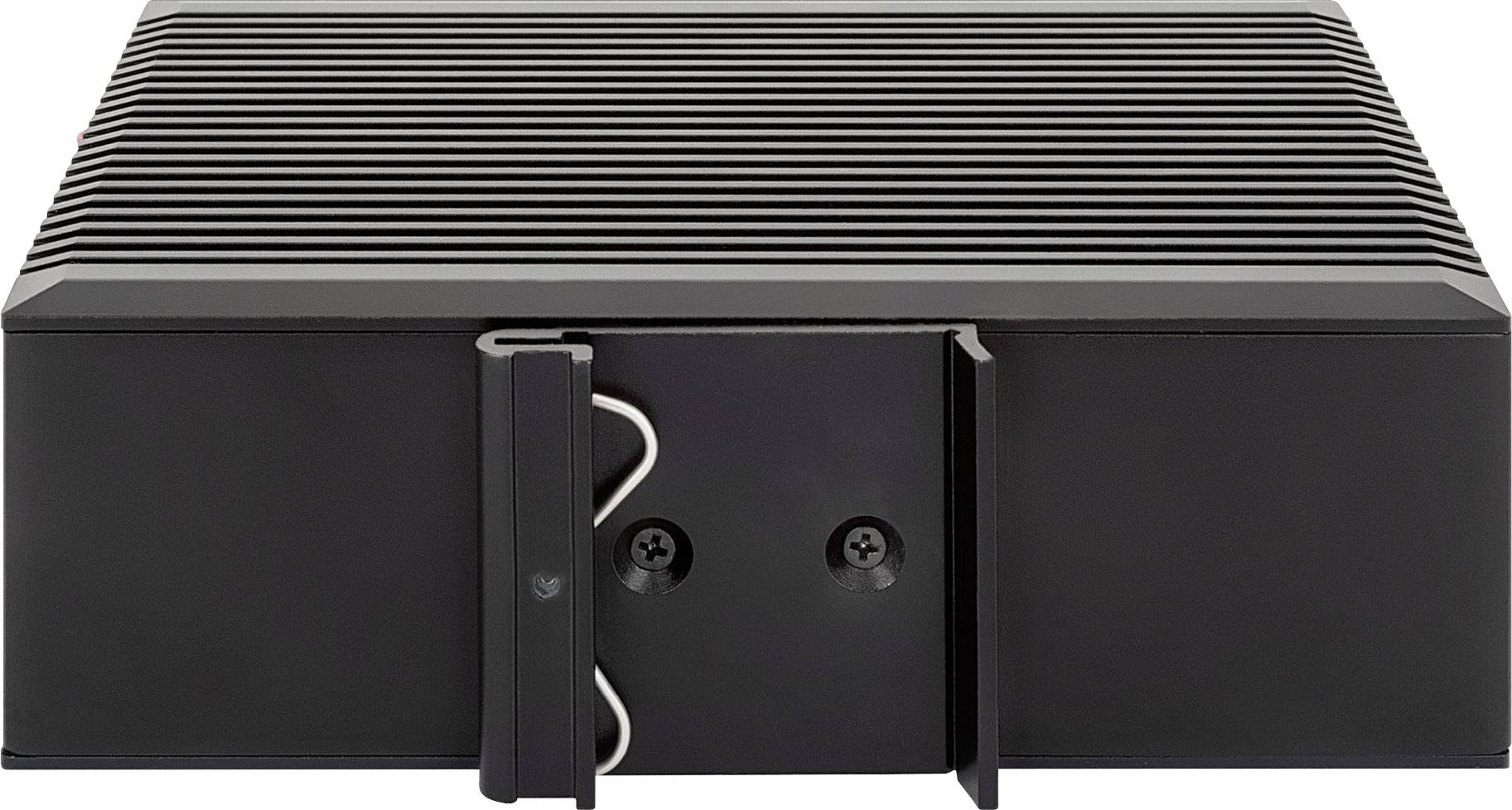

- Can be mounted on DIN rail

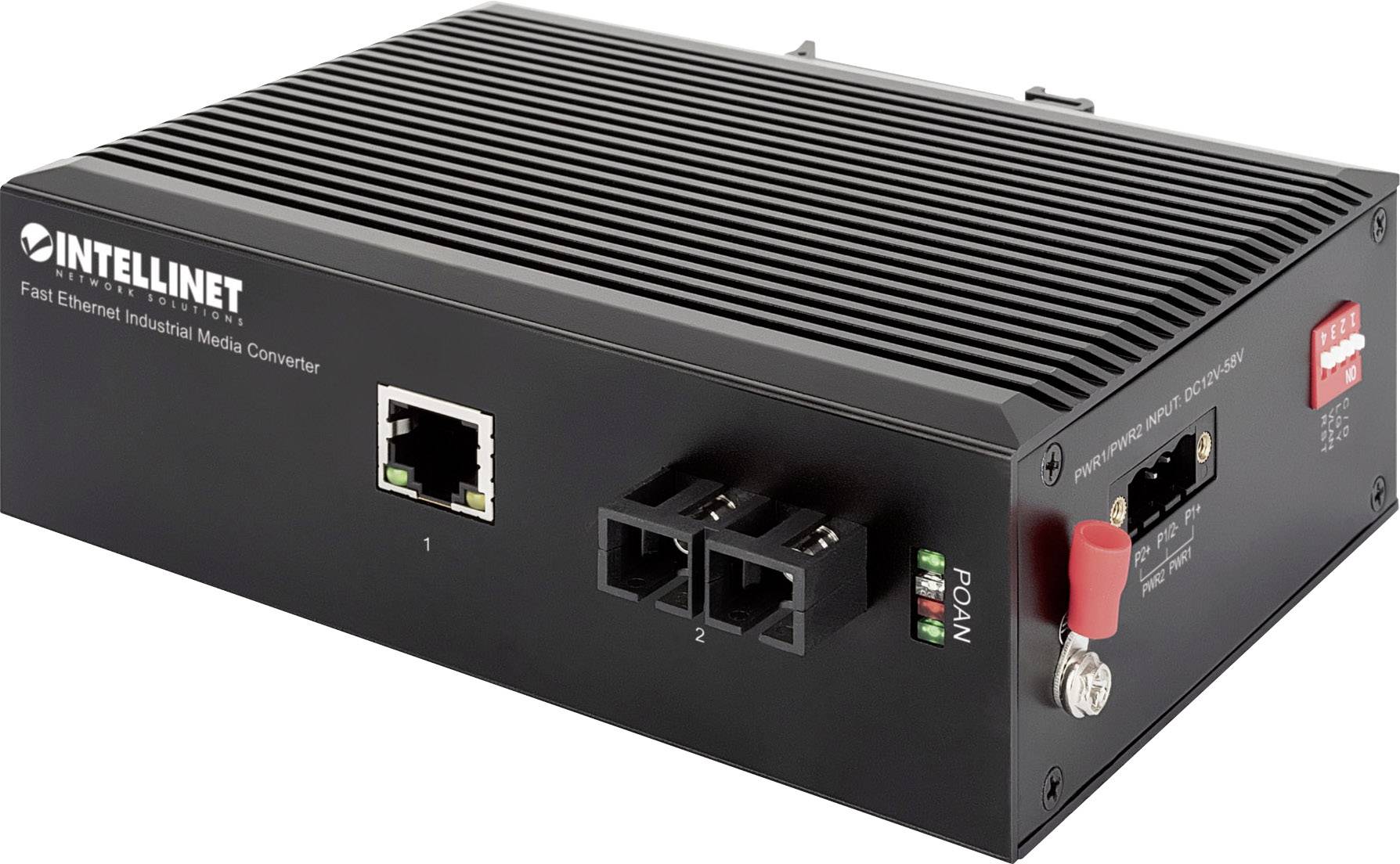

- Redundant power supply with two inputs (12 - 58 V DC) and I/O terminal strip
- Requires industrial power supply (not included)
- Tested for shock resistance (IEC 60068-2-27), free fall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
Technical specifications
- Standards: IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet)
- Supported media: 10/100Base-TX Cat5e or higher UTP/STP RJ45; 1000Base-LX single mode 8.3/125 µm, 8.7/125 µm, 8/125 µm or 10/125 µm
- Range : Fiber optic cable: 20 km; RJ45 cable: 100 m.
- Wavelength : 1310 nm
- Min TX power -9 dBm
- Max. TX Power -3 dBm

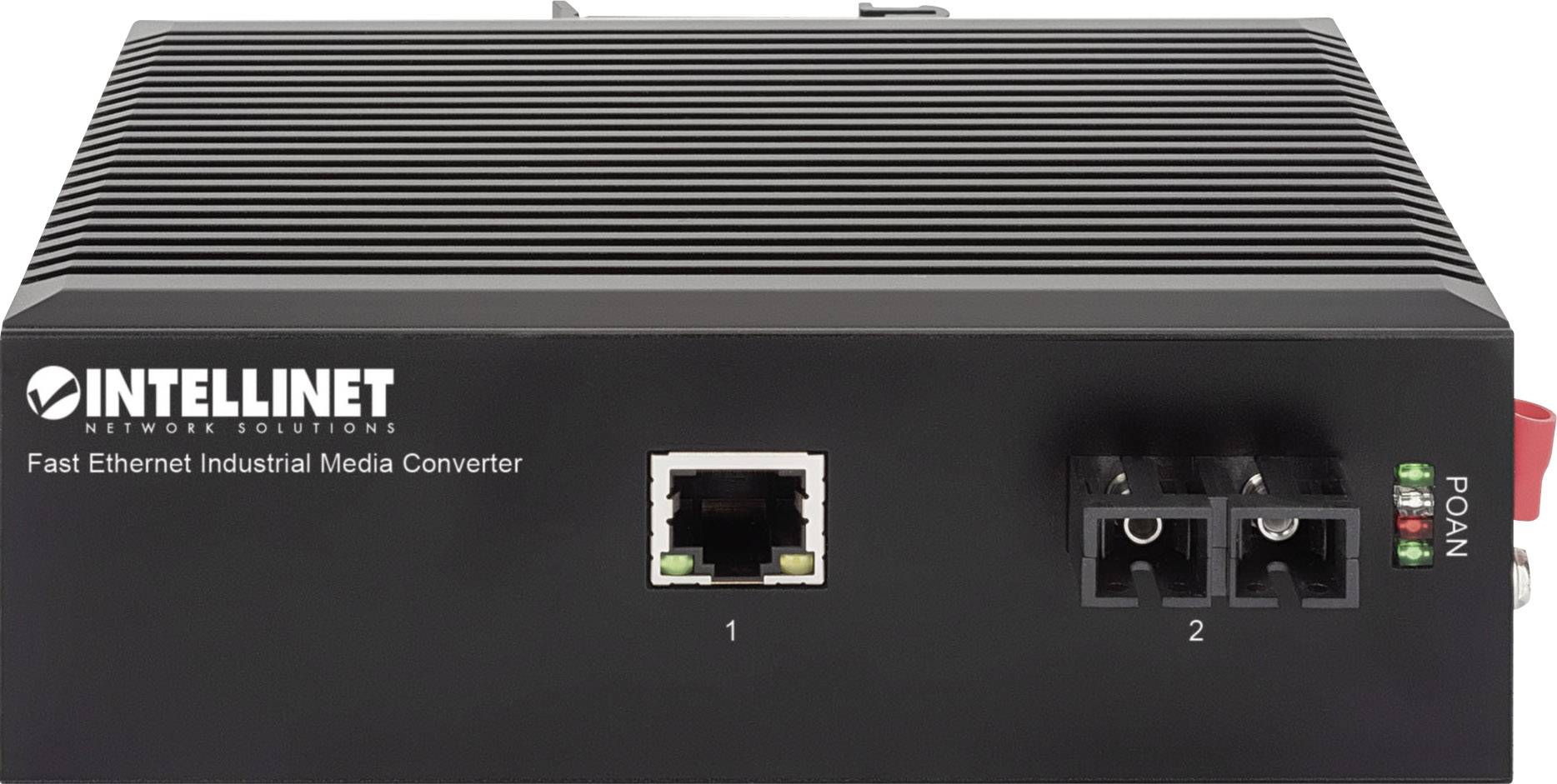

- LEDs: P for power, O for optical fiber port, N for NMC, A for alarm (voltage)
- Power supply : Input 12 - 58 V DC
- Physical details: Metal housing, operating temperature -40 - 75°C, storage temperature -40 - 85°C, humidity 5 - 90% RH, non-condensing
- Product type
Media converter
- Interfaces
1x RJ45 (LAN)
1x SC Duplex
- Link
1x SC
- Transfer rate
10 / 100 MBit/s
- Length
143 mm
- Width
104 mm
- Height
48 mm
- Weight
600 g
- LAN transfer rate
10 MBit/s
100 MBit/s
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2386657 Intellinet 508322 1x SC Media converter 10 / 100 MBit/s
Description
Media converter with industrial housing for demanding ambient conditions and extreme temperatures
This Industrial Fast Ethernet Media Converter from INTELLINET Network Solutions allows installers to integrate fiber into an existing copper cable network for a low cost, low-workload LAN upgrade. It works transparently – the performance and functionality remain unchanged, the network is only extended by the support of both media – copper and fiber optic. Fiber-optic support allows remote workgroups to be integrated into your network. Building-to-building connections are thus easily possible without additional access points.
Fully equipped for challenging industrial environments
Due to its extremely robust housing with protection class IP40, the converter works reliably, even in extreme ambient temperatures from -40 to 75°C. In combination with its DIN-rail mounting option and two redundant DC current inputs as well as numerous other safety features, it is ideal for IoT applications in Industry 4.0 and much more.
This text is machine translated.
This Industrial Fast Ethernet Media Converter from INTELLINET Network Solutions allows installers to integrate fiber into an existing copper cable network for a low cost, low-workload LAN upgrade. It works transparently – the performance and functionality remain unchanged, the network is only extended by the support of both media – copper and fiber optic. Fiber-optic support allows remote workgroups to be integrated into your network. Building-to-building connections are thus easily possible without additional access points.
Fully equipped for challenging industrial environments
Due to its extremely robust housing with protection class IP40, the converter works reliably, even in extreme ambient temperatures from -40 to 75°C. In combination with its DIN-rail mounting option and two redundant DC current inputs as well as numerous other safety features, it is ideal for IoT applications in Industry 4.0 and much more.
This text is machine translated.
Scope of delivery
- Fast Ethernet industrial media converter
- Quick guide
