Intellinet 508544 Media converter 10 / 100 / 1000 MBit/s
EAN:
Part number:
Item no:

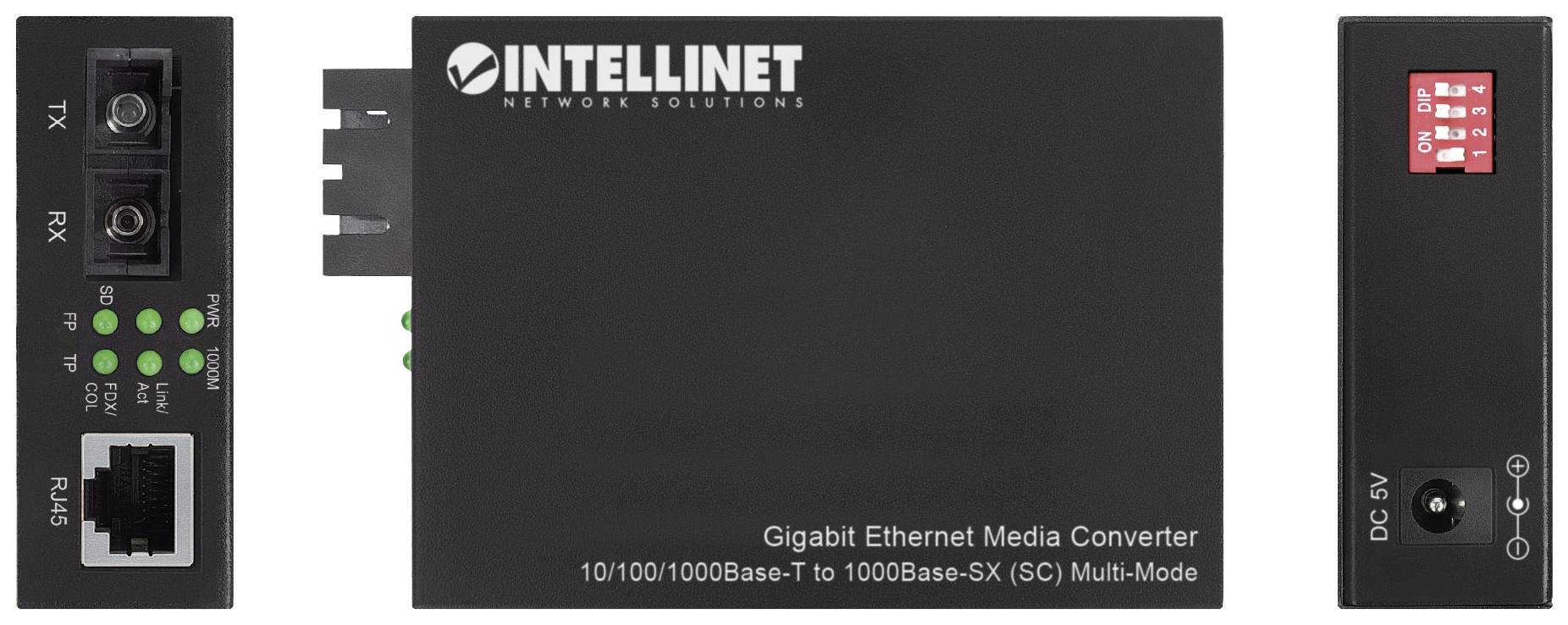

Intellinet Gigabit Ethernet media converter 10/100/1000Base-T to 1000Base-SX (SC) multimode 550 m autonegotiation
Highlights & Details
- A 10/100/1000 RJ45-port supports a maximum range of 100 m
- A 1000Base-SX multimode fiber SC port supports a maximum range of 550 m.
- Supports operation in full-duplex mode or half-duplex mode with auto-negotiation
- Link fault pass-through (LFP) for easier network maintenance
- Supports QoS bandwidth management
Technical specifications
- Product type
Media converter
- Transfer rate
10 / 100 / 1000 MBit/s
- Length
94 mm
- Width
70 mm
- Height
26 mm
- Weight
210 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896531 Intellinet 508544 Media converter 10 / 100 / 1000 MBit/s
Description
The Intellinet gigabit media converter enables the integration of copper cable connections in a fiber optic network. This allows the integration or expansion of the existing network with minimal cost and effort. Since the converter is completely network-transparent, the network continues to operate in the same way - now with the support of both copper and fiber-optic media.
Extends an existing network
Thanks to the fiber optic connection, even remote workgroups can be integrated into the network. Without additional routers, building-to-building connections can be set up, saving WAS costs and effort.
Increases the range between network devices
Connecting to a fiber optic segment can increase the distance between remote network nodes. This can be achieved by directly connecting the converter to a fiber optic connection node or network device.
Flexibility in cabling
Network administrators can install fiber optic cables anywhere within a network without having to change the structure of the copper cable network. Through the compact design of the converter this can be installed both at places with limited space, as well as at a wall mounting. Similarly, several converters can be integrated at the same time in a 19" rack-mount casing.
This text is machine translated.
Extends an existing network
Thanks to the fiber optic connection, even remote workgroups can be integrated into the network. Without additional routers, building-to-building connections can be set up, saving WAS costs and effort.
Increases the range between network devices
Connecting to a fiber optic segment can increase the distance between remote network nodes. This can be achieved by directly connecting the converter to a fiber optic connection node or network device.
Flexibility in cabling
Network administrators can install fiber optic cables anywhere within a network without having to change the structure of the copper cable network. Through the compact design of the converter this can be installed both at places with limited space, as well as at a wall mounting. Similarly, several converters can be integrated at the same time in a 19" rack-mount casing.
This text is machine translated.
Features
- Standards
- IEEE 802.3i 10Base-T Ethernet
- IEEE 802.3u (100Base-TX Fast Ethernet).
- IEEE 802.3z (1000BASE-X Gigabit Ethernet)
- IEEE 802.3ab (twisted-pair gigabit Ethernet)
- IEEE 802.1d spanning tree protocol
- IEEE 802.1q (VLAN tagging)
- IEEE 802.1p (traffic prioritization)
- General:
- Media Support:
- - 10/100/1000Base-TX Cat5e or higher UTP/STP RJ45
- - 1000Base-SX Multimode 50/125 µm & 62,5/125 µm
- Connections:
- - One RJ45 port
- - A fiber optic SC duplex port
- Range:
- - 220 m (for fiber optic cable with 62,5/125 µm)
- - 550 m (for fiber optic cable with 50/125 µm)
- - 100 m (for RJ45 cable)
- Wavelength 850 nm.
- Min TX Power -9 dBm
- Max. TX Power -3 dBm
- FCC Class B, CE, RoHS

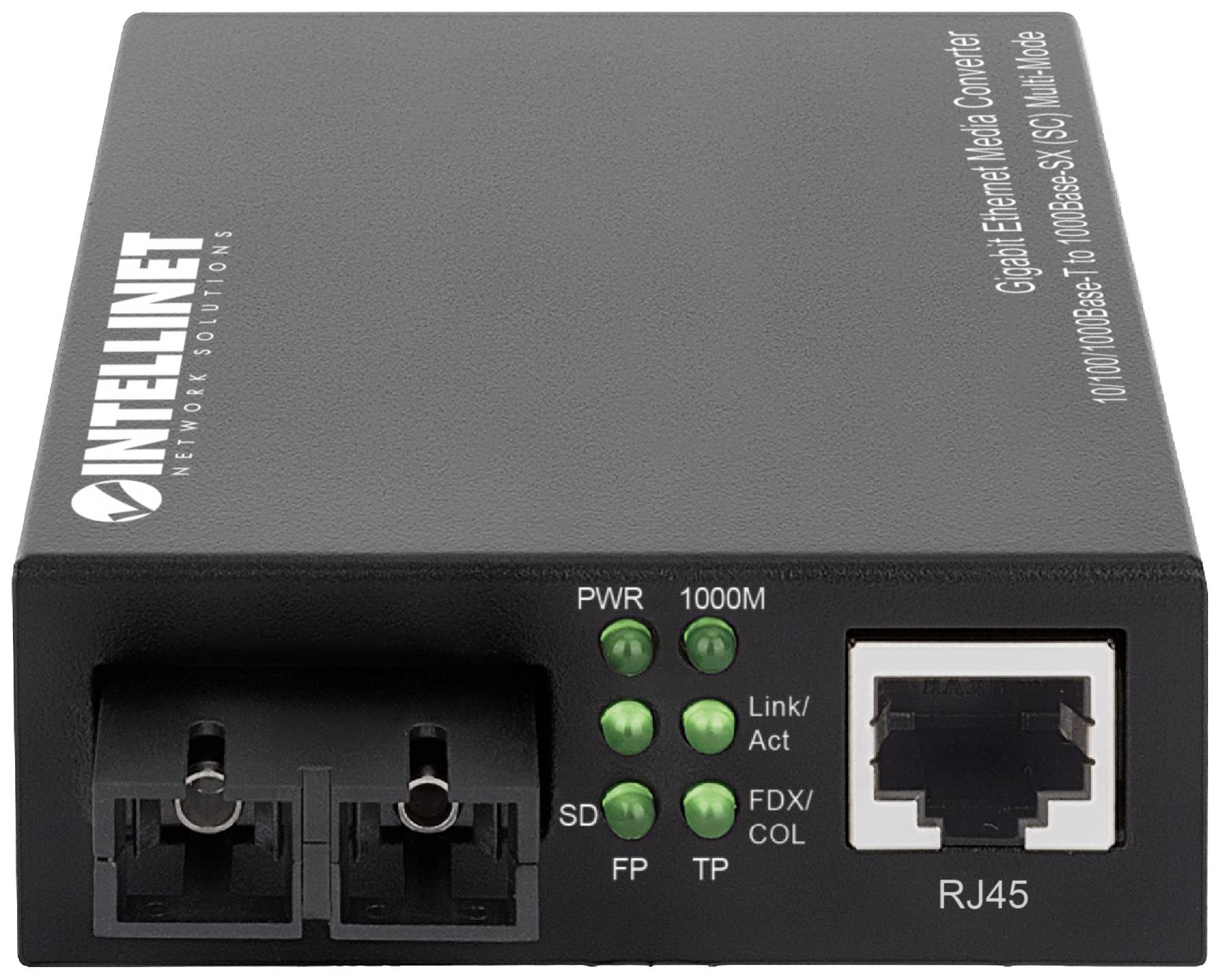

- LEDs
- Current
- Link/ACT for RJ45 port
- LINK/ACT for glass fiber port
- 1000 Mbit/s-display for RJ45-port
- 100 Mbit/s-display for RJ45-port
- LED for optical signal input
- Current

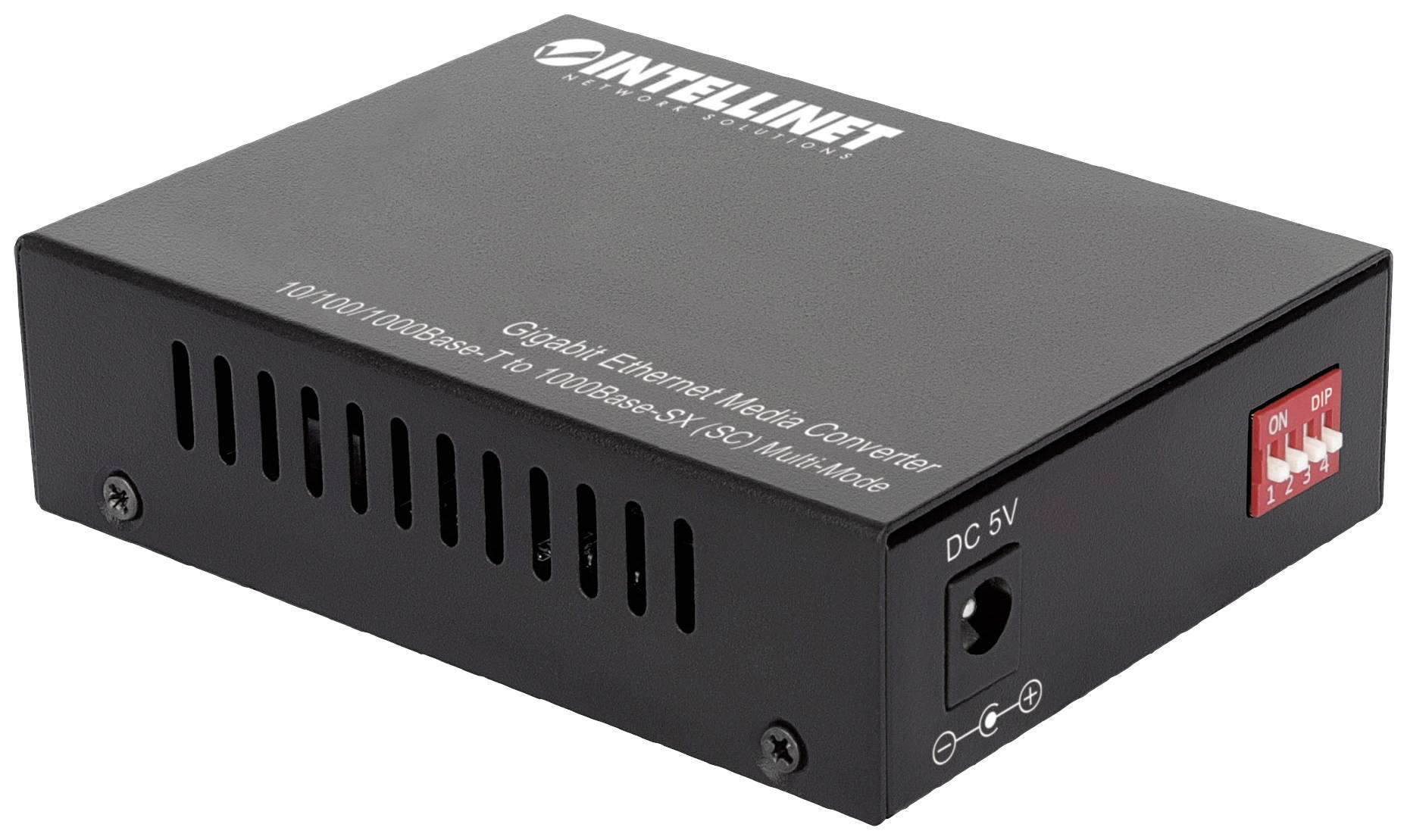

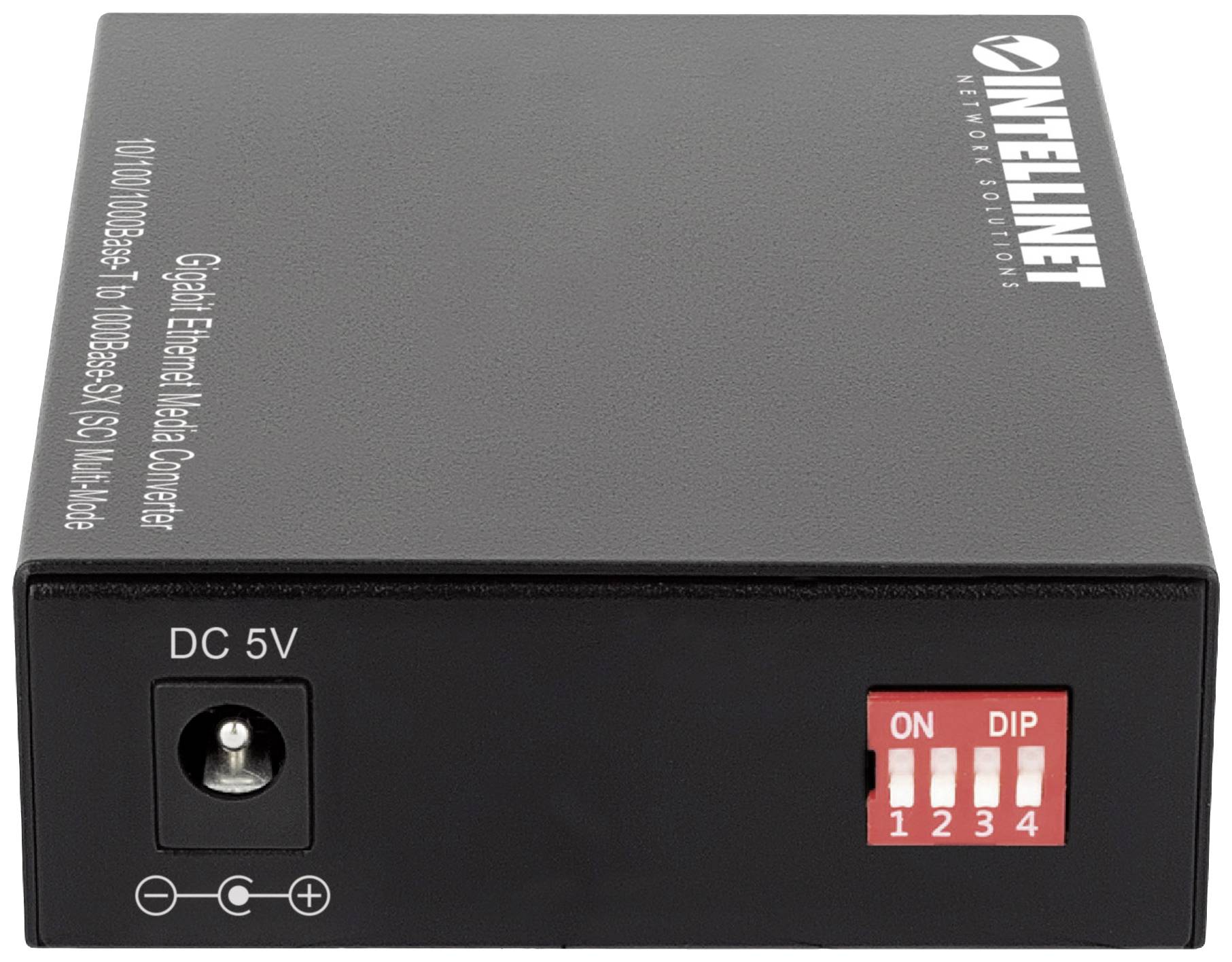

- External power supply, 5 V, 1 A
Scope of delivery
- Gigabit Ethernet Media converter

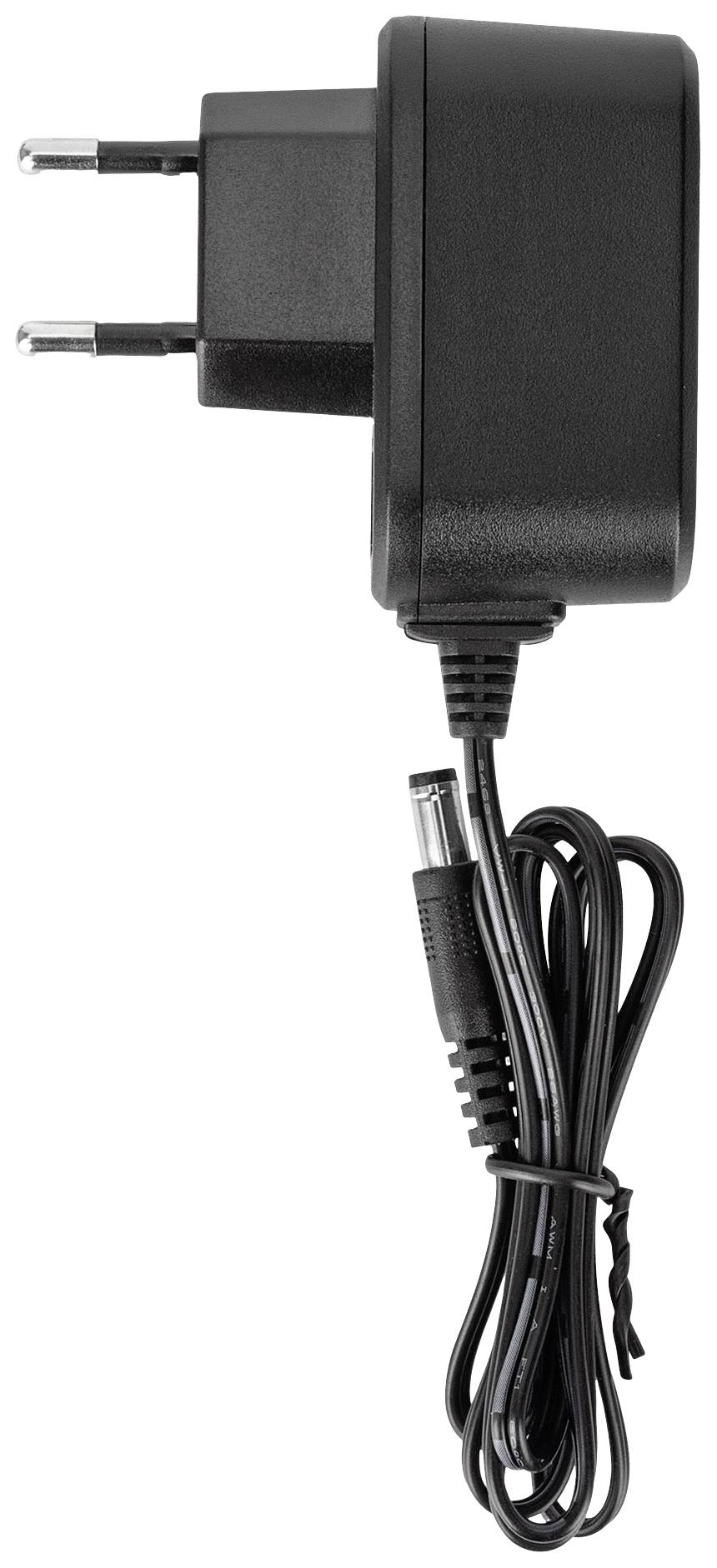

- External mains adapter
- Quick guide
