Intellinet 508735 Mini-GBIC Transceiver für LWL-Kabel (LC) Singlemode-Port 10 km HPE-kompatibel Transceiver board 1000 M
EAN:
Part number:
Item no:

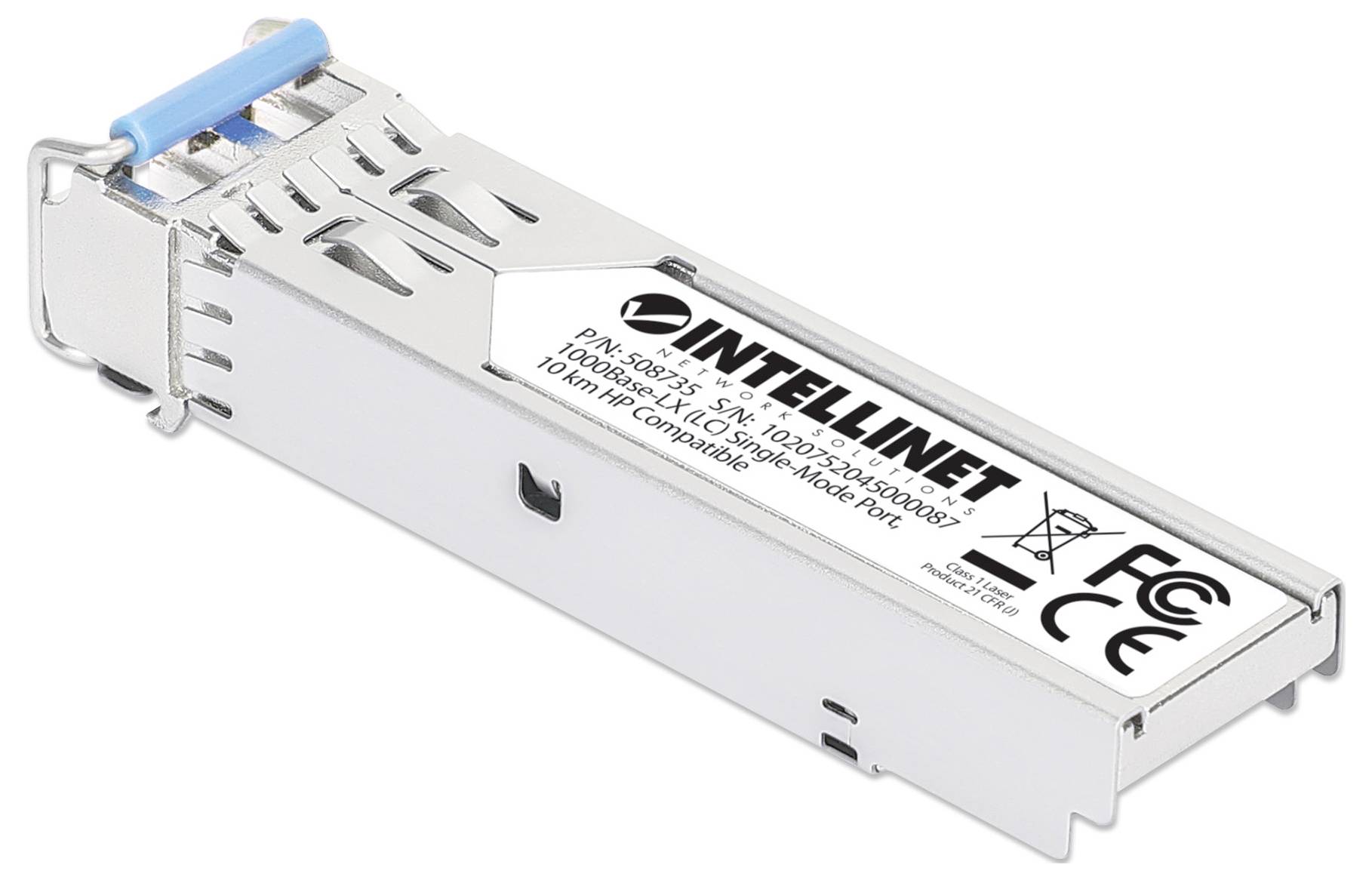

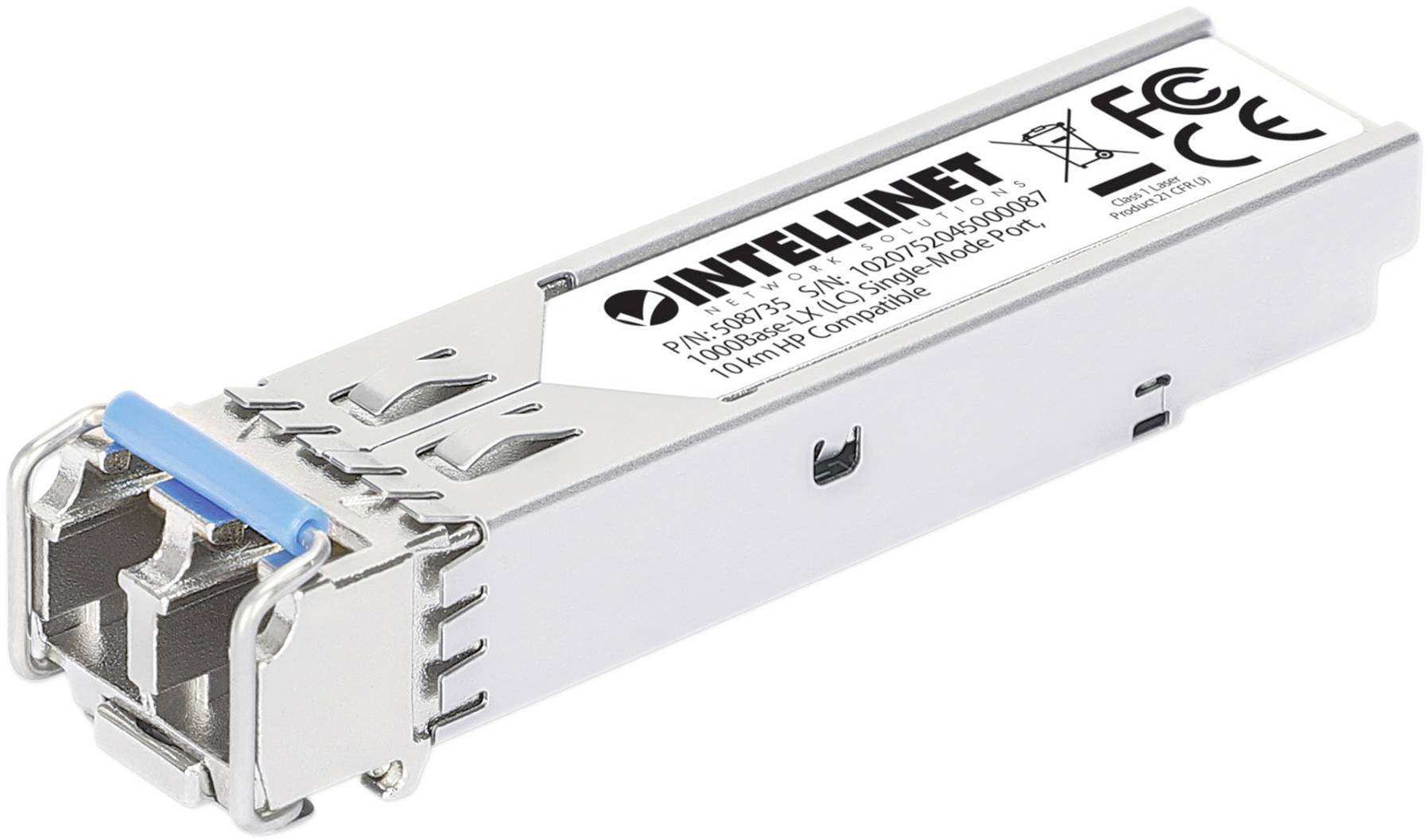

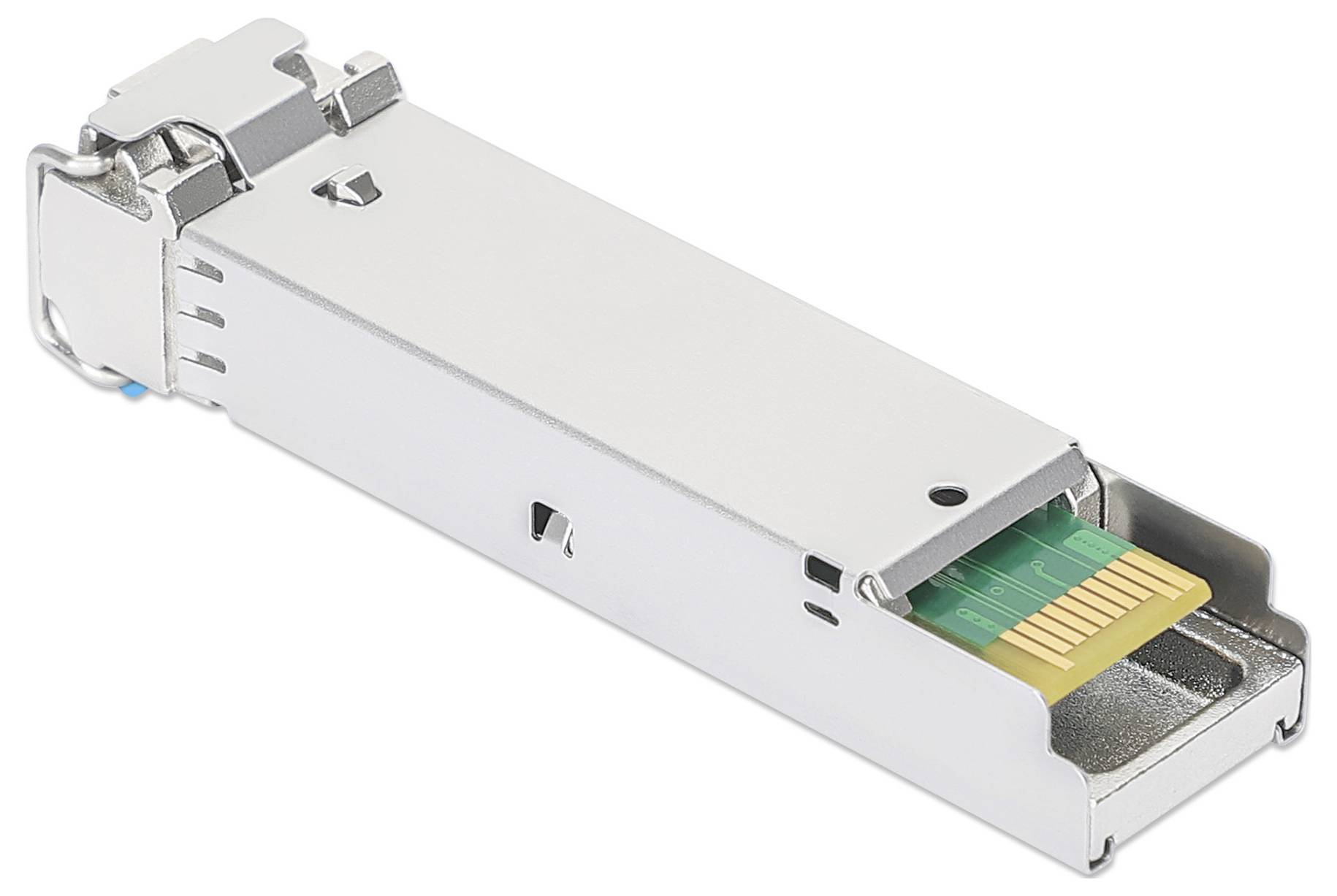

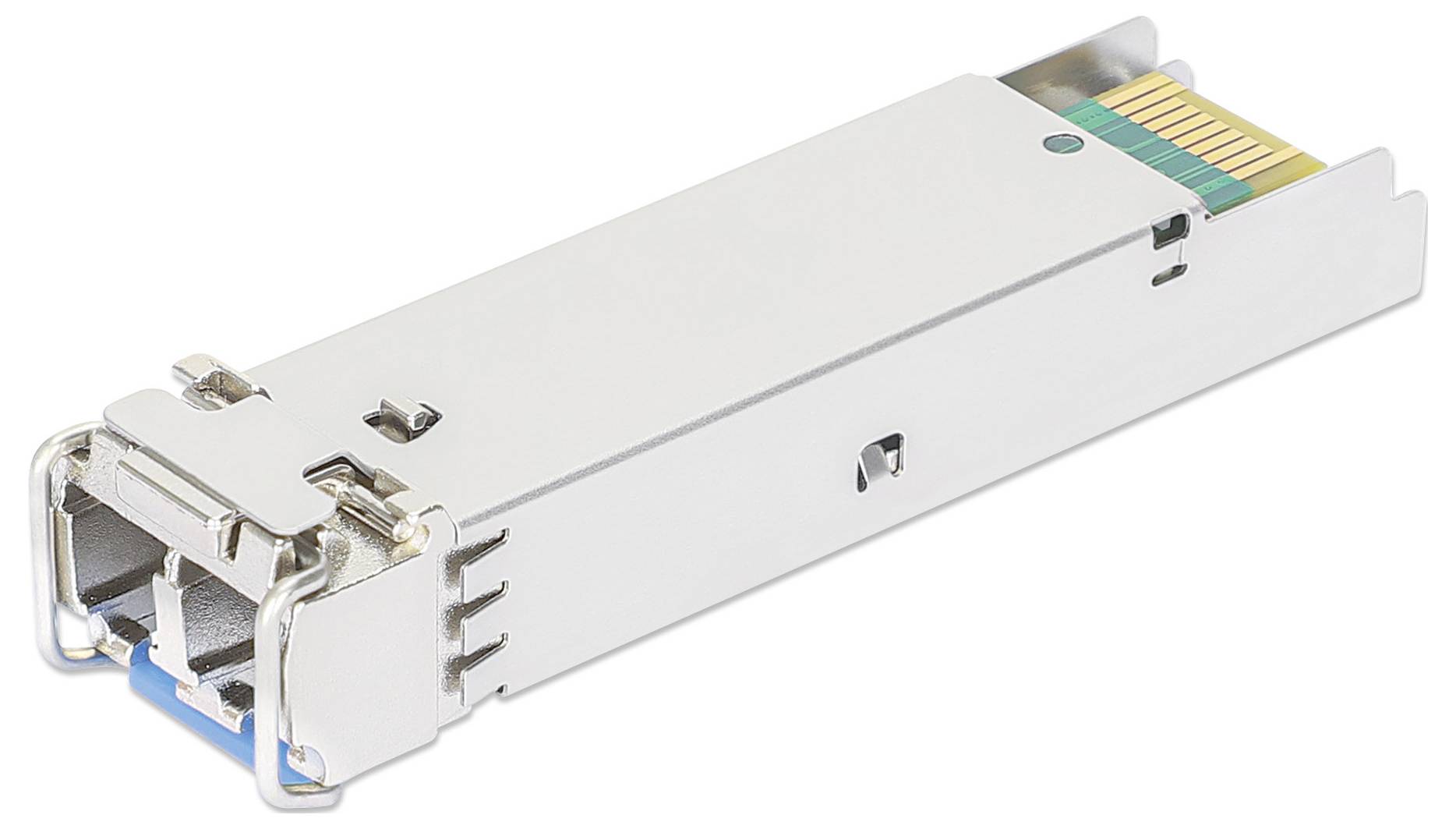

INTELLINET Gigabit SFP module / mini-GBIC transceiver for fiber optic cable 1000Base-LX (LC) single mode port 10 km HPE-compatible silver
Highlights & Details
- Compatible with HPE (Hewlett Packard Enterprise) switches and routers
- Data transfer rate 1000 Mbit/s.
- A 1000Base-LX single-mode LC duplex port for fiber optic cable
- Supported fiber optic range: Up to 10 km
- Wavelength 1310 nm
Technical specifications
- Product type
Transceiver board
- Transfer rate
1000 MBit/s
- Module type
LX
- Distances up to
10 km
- LAN transfer rate
1000 MBit/s
- Weight
0.03
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3338808 Intellinet 508735 Mini-GBIC Transceiver für LWL-Kabel (LC) Singlemode-Port 10 km HPE-kompatibel Transceiver board 1000 M
Description
SFP module, HP/HPE compatible, 1000Base-LX (LC) single mode with favorable premium performance
The small form factor pluggable (SFP) transceiver from Intellinet network solutions offers an excellent price-performance ratio. The metal housing reduces electromagnetic interference and guarantees a long life.
Compact format for tightly plugged glass fiber connections
The mini GBIC (Gigabit Interface Converter) form factor provides a minimum of space requirement. This makes it Ideal for environments with many fiber optic connections at the same time.
Compatible with HP / HPE
Compatibility is critical to your network - due to proper compliance, you can use this transceiver with Hewlett Packard Enterprise switches and routers. It will send the appropriate manufacturer's article numbers J4859A / J4859B / J4859C / J4859D to your HPE devices.
Hot-pluggable
You do not need to turn off your LAN switch to install or disconnect the transceiver. It makes adjustments to your network comfortable and simple.

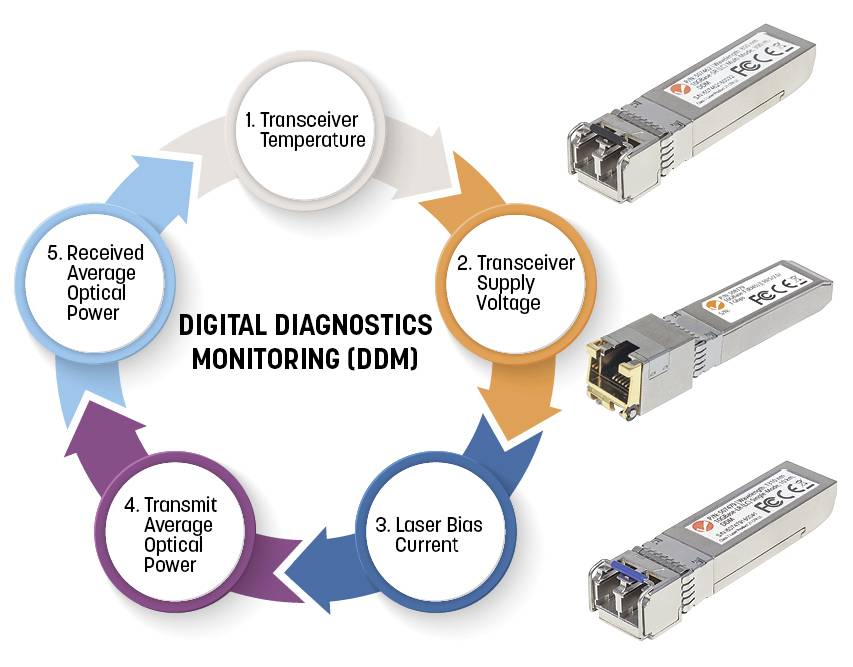

Digital Diagnostics Monitoring (DDM)
This SFP module supports digital diagnostic monitoring (DDM) functions, also known as Digital Optical Monitoring (DOM). Allows you to monitor parameters of the SFP in real time, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
This text is machine translated.
The small form factor pluggable (SFP) transceiver from Intellinet network solutions offers an excellent price-performance ratio. The metal housing reduces electromagnetic interference and guarantees a long life.
Compact format for tightly plugged glass fiber connections
The mini GBIC (Gigabit Interface Converter) form factor provides a minimum of space requirement. This makes it Ideal for environments with many fiber optic connections at the same time.
Compatible with HP / HPE
Compatibility is critical to your network - due to proper compliance, you can use this transceiver with Hewlett Packard Enterprise switches and routers. It will send the appropriate manufacturer's article numbers J4859A / J4859B / J4859C / J4859D to your HPE devices.
Hot-pluggable
You do not need to turn off your LAN switch to install or disconnect the transceiver. It makes adjustments to your network comfortable and simple.
Digital Diagnostics Monitoring (DDM)
This SFP module supports digital diagnostic monitoring (DDM) functions, also known as Digital Optical Monitoring (DOM). Allows you to monitor parameters of the SFP in real time, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
This text is machine translated.
Features
- Standards
- IEEE 802.3z (Fibre Optic Gigabit Ethernet)
- General
- Media supported: 1000Base-LX singlemode 9/125 µm fiber
- Connection: LC duplex port, 1000Base-LX
- Range: 10 km
- Wavelength 1310 nm
- Fiber Power budget:
- - Maximum TX Power: -3 dB
- - Minimum TX Power: -9 dB
- - Sensitivity: -20 dB
- - Power budget: 11 dB
- SFP type (Small Form Factor Pluggable)
- FCC Class B, CE, RoHS
- Current
- Voltage: 3.3 V
- Power consumption: 1.0 W (max.)
- Physical details
- Dimensions (L x W x H) 57 x 14 x 12 mm
- Net weight: 20 g
- Gross weight 45 g
- Ambient conditions
- Operating ambient temperature 0 - 70°C.
- Operating humidity: 10 - 85% RH, non-condensing
- Ambient temperature during storage -40 - 85°C.
