Intellinet 508742 Mini-GBIC Transceiver für LWL-Kabel (LC) Multimode-Port 550 m HPE-kompatibel Transceiver board 1000 MB
EAN:
Part number:
Item no:

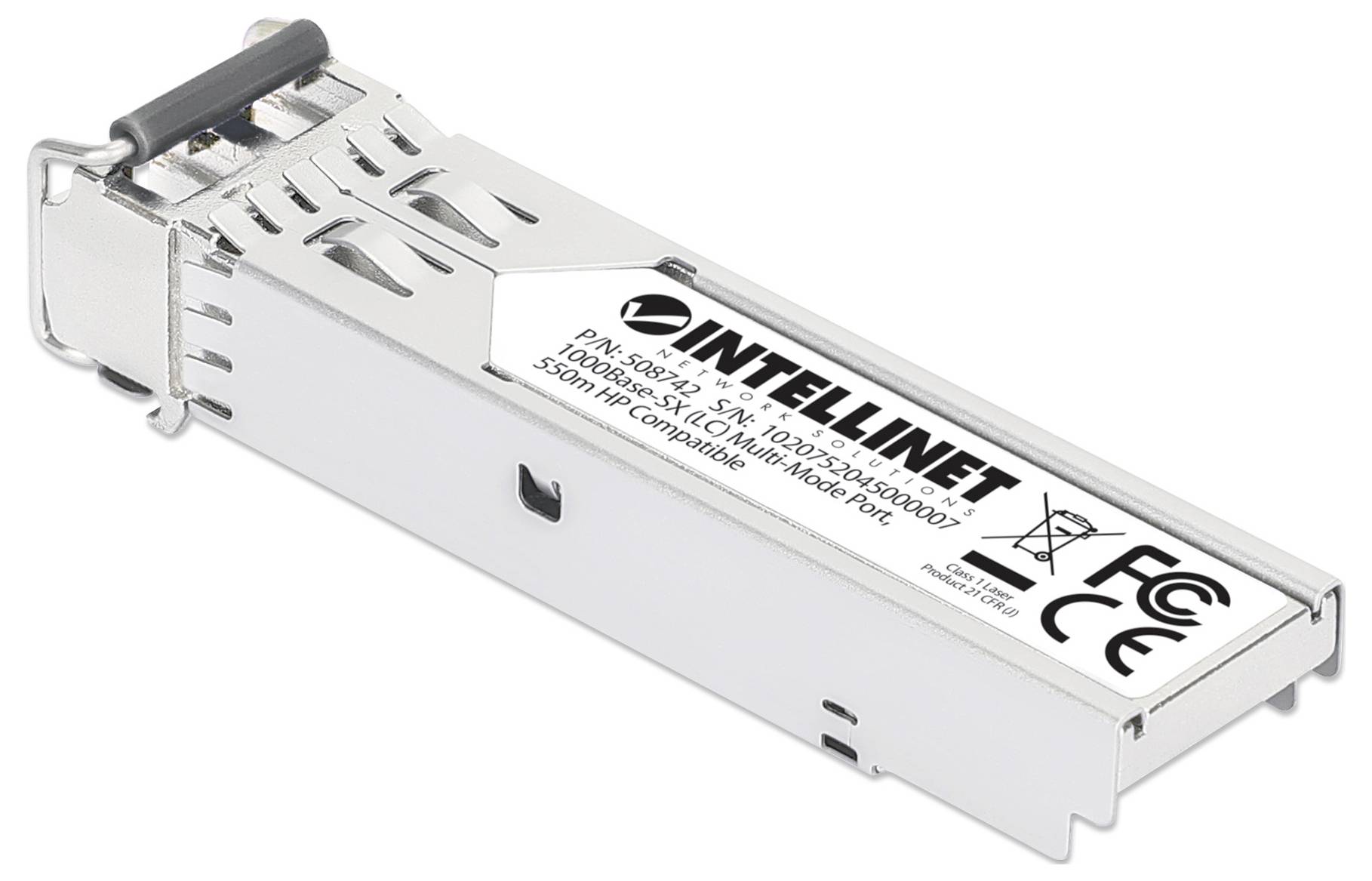

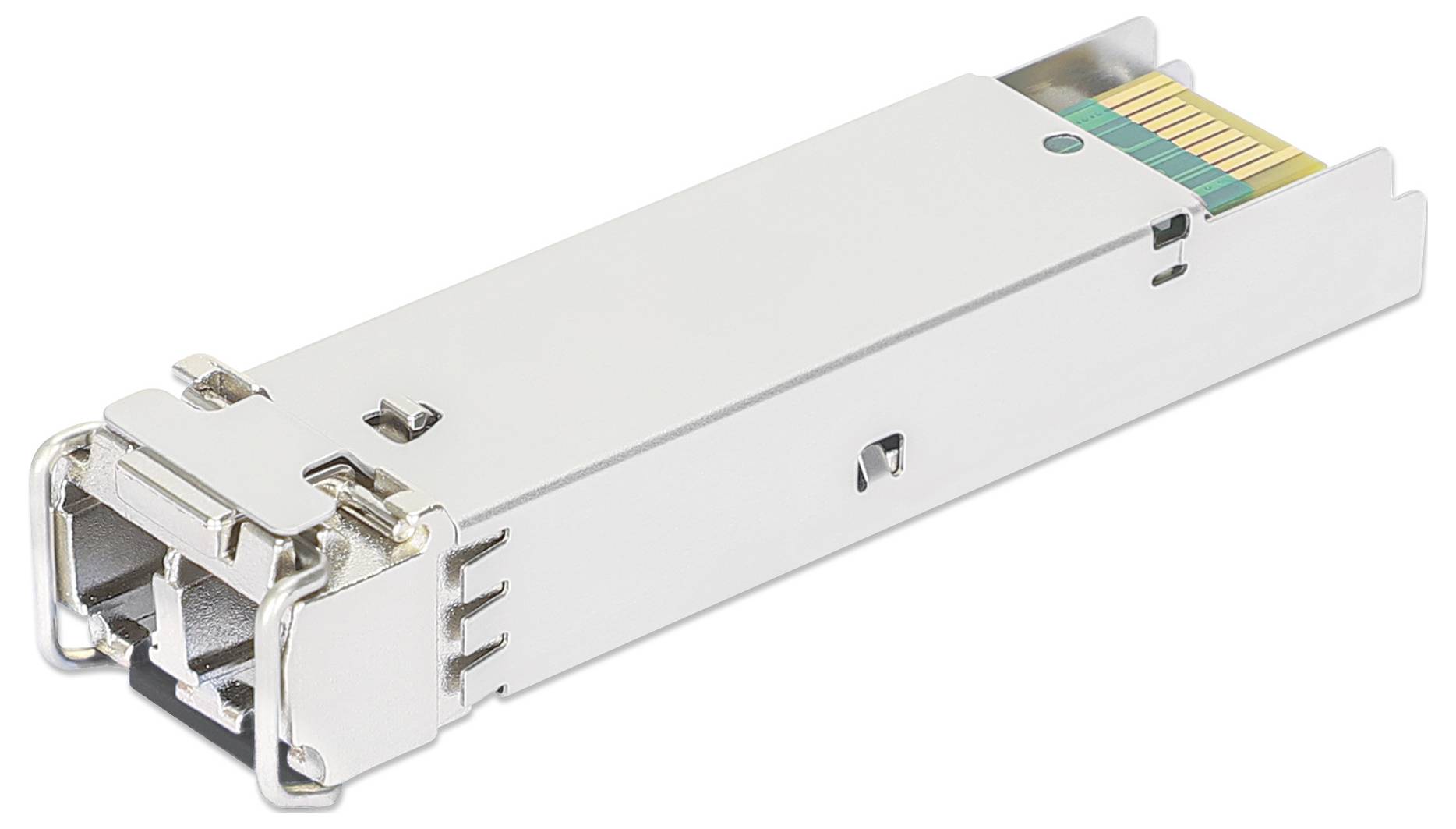

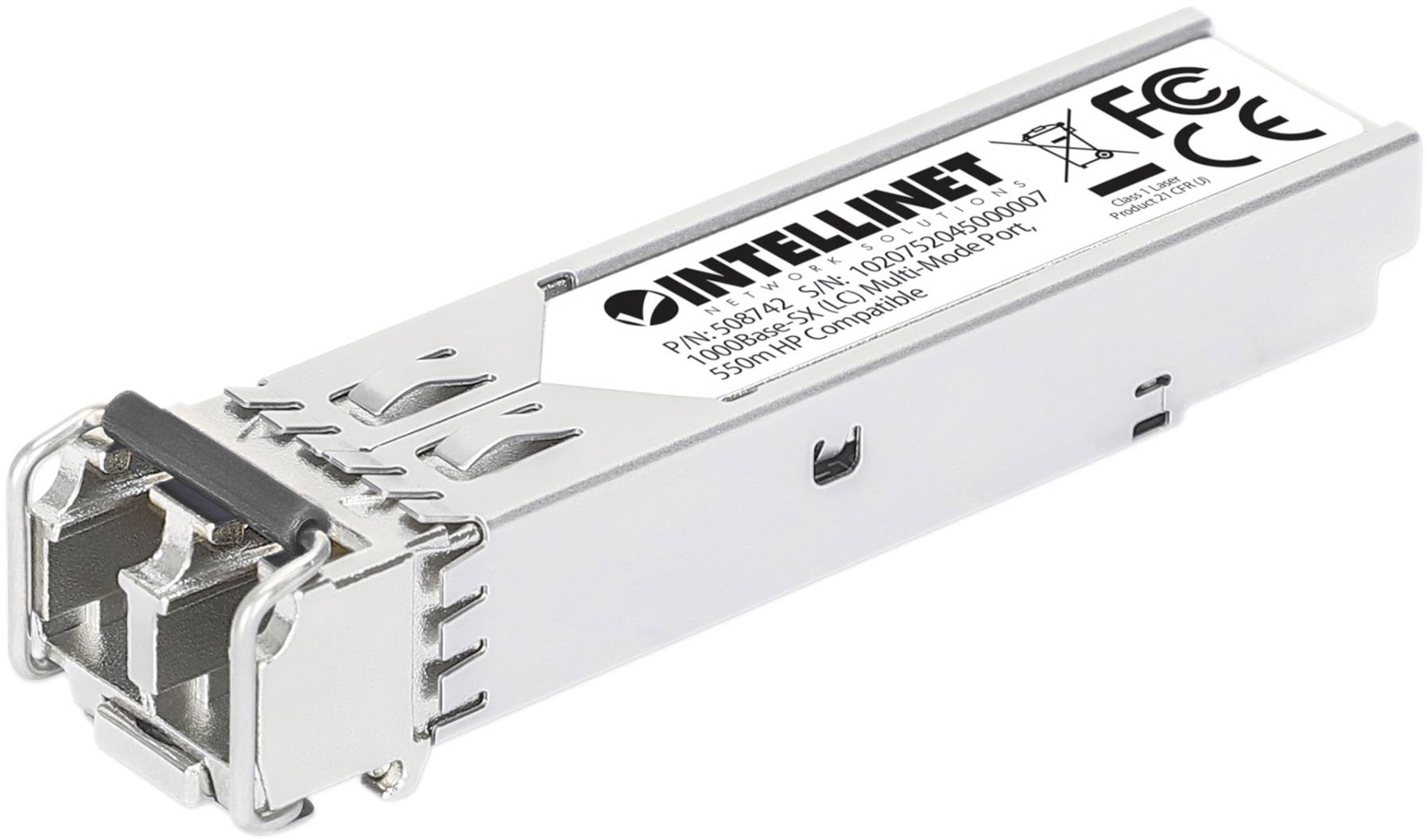

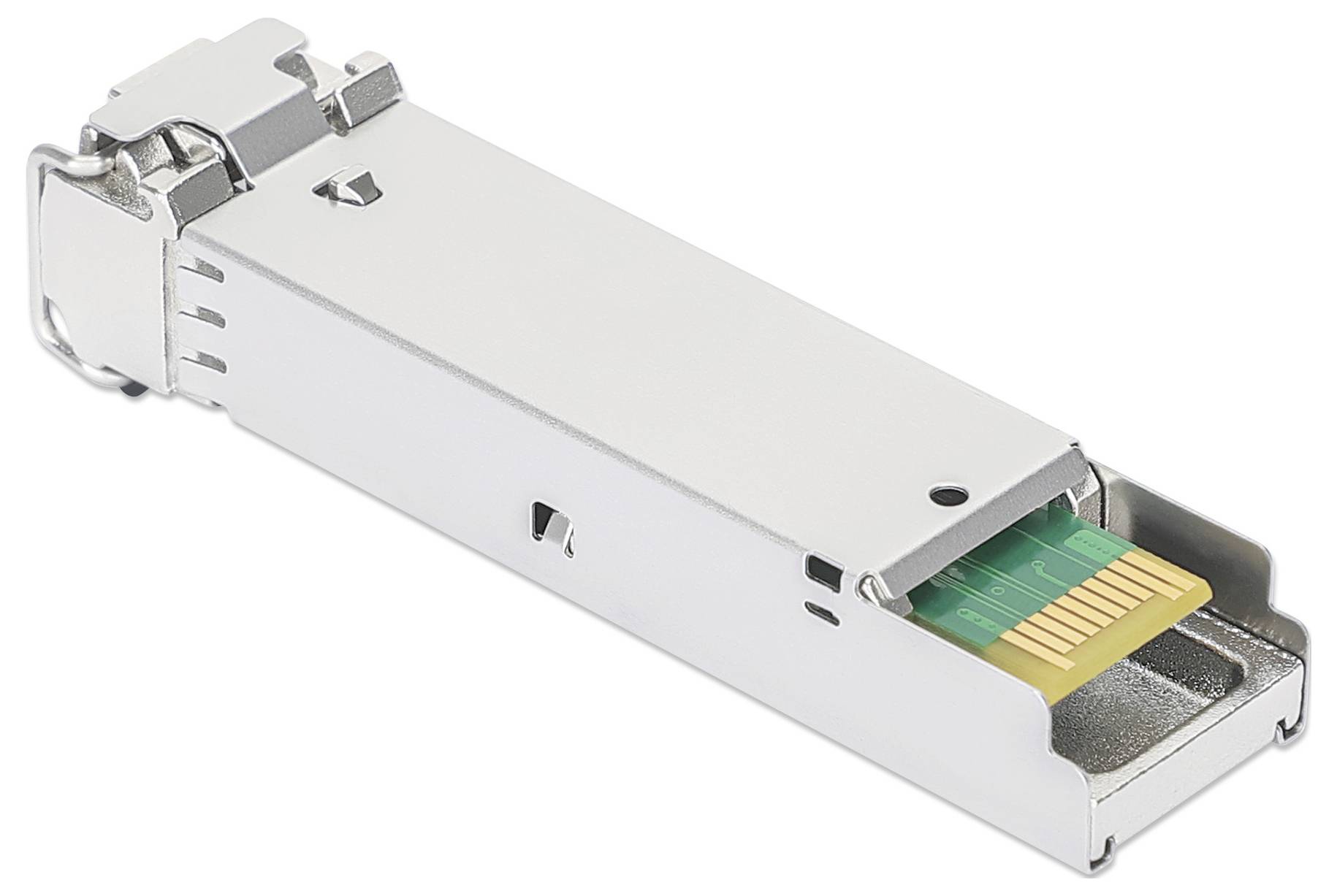

Intellinet gigabit SFP module / mini GBIC transceiver for fiber optic cable 1000Base-SX (LC) multimode port 550 m HPE compatible silver
Highlights & Details
- Compatible with HPE (Hewlett Packard Enterprise) switches and routers
- Data transfer rate 1000 Mbit/s.
- One 1000Base-SX multimode LC duplex port for fiber optic cable
- Range: Up to 550 m (50/125 µm cable) or 220 m (62,5/125 µm cable)
- Wavelength 850 nm.
Technical specifications
- Product type
Transceiver board
- Transfer rate
1000 MBit/s
- Module type
SX
- Distances up to
550 m
- LAN transfer rate
1000 MBit/s
- Weight
0.03
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3338809 Intellinet 508742 Mini-GBIC Transceiver für LWL-Kabel (LC) Multimode-Port 550 m HPE-kompatibel Transceiver board 1000 MB
Description
SFP module for HP® / HPE® with low-cost premium performance
The small form factor pluggable (SFP) transceiver from Intellinet network solutions offers an excellent price-performance ratio. Its robust metal housing reduces electromagnetic interferences and provides for highest longevity
Compact format for fiber-optic connections in the tightest of spaces
The Mini-GBIC form factor of the transceiver reduces the space required in its connectors. It is Ideal for applications with fiber optic modules inserted close to one another.
Compatible with HP / HPE
Compatibility in your network is essential and this SFP transceiver provides it. Designed, programmed, and tested for use with HP/HPE-compatible switches and routers. Its configuration transmits the manufacturer's article number J4858A / J4858B / J4858C / J4858D for optimum compatibility with your HPE devices.
Hot-plug-enabled
This module is fully hot-pluggable, so you can install it without rebooting your network switch. Your traffic remains uninterrupted.
This text is machine translated.
The small form factor pluggable (SFP) transceiver from Intellinet network solutions offers an excellent price-performance ratio. Its robust metal housing reduces electromagnetic interferences and provides for highest longevity
Compact format for fiber-optic connections in the tightest of spaces
The Mini-GBIC form factor of the transceiver reduces the space required in its connectors. It is Ideal for applications with fiber optic modules inserted close to one another.
Compatible with HP / HPE
Compatibility in your network is essential and this SFP transceiver provides it. Designed, programmed, and tested for use with HP/HPE-compatible switches and routers. Its configuration transmits the manufacturer's article number J4858A / J4858B / J4858C / J4858D for optimum compatibility with your HPE devices.
Hot-plug-enabled
This module is fully hot-pluggable, so you can install it without rebooting your network switch. Your traffic remains uninterrupted.
This text is machine translated.
Features
- Standards
- IEEE 802.3z (Fibre Optic Gigabit Ethernet)
- General
- Media Support:
- - 1000Base-SX Multimode 50/125 µm fiber optic
- - 1000Base-SX Multimode 62,5/125 µm fiber optic
- LC duplex port, 1000Base-SX connection
- Range:
- - 550 m (50/125 µm cable)
- - 220 m (62,5/125 µm cable)
- Wavelength 850 nm.
- Fibre Power budget
- - Maximum TX Power: -3 dBm
- - Minimum TX Power: -8 dBm
- - Sensitivity: -20 dB
- - Power budget: 8 dB
- SFP type (Small Form Factor Pluggable)
- FCC Class B, CE Mark, RoHS, IEC-60825
- Current
- Voltage: 3.3 V
- Consumption: 1.0 watts (max.)
- Physical details
- Dimensions (L x W x H) 57 x 14 x 12 mm
- Weight: 20g
- Ambient conditions
- Operating ambient temperature 0 - 70°C.
- Typical operating temperature: 34.8°C.
- Operating humidity: 5 - 95% RH, non-condensing
- Ambient temperature during storage -40 - 85°C.
