Intellinet 508759 Mini-GBIC Transceiver für LWL-Kabel 10GBase-LR (LC) Singlemode 10km HPE-komp. Transceiver board 10 GBi
EAN:
Part number:
Item no:

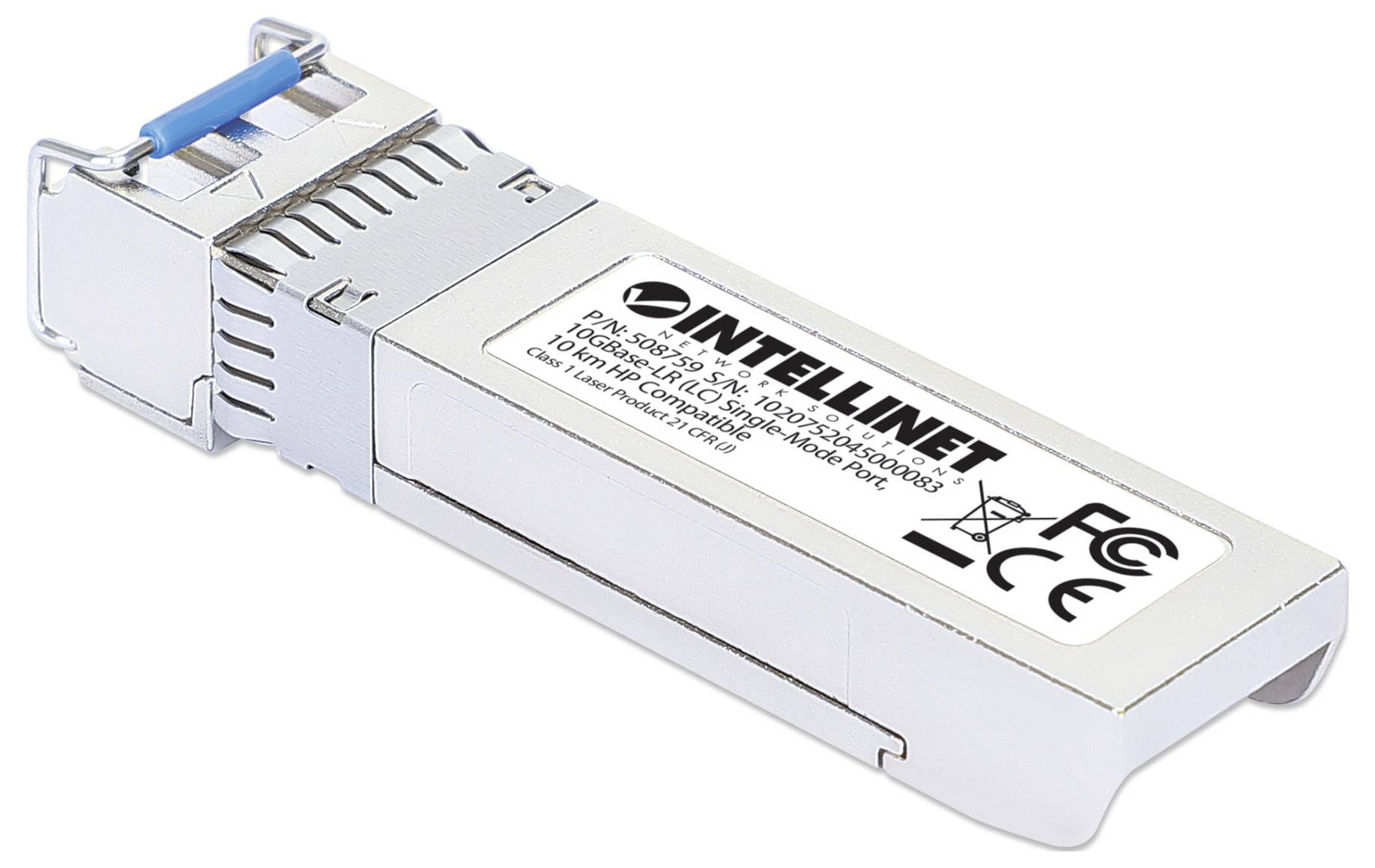

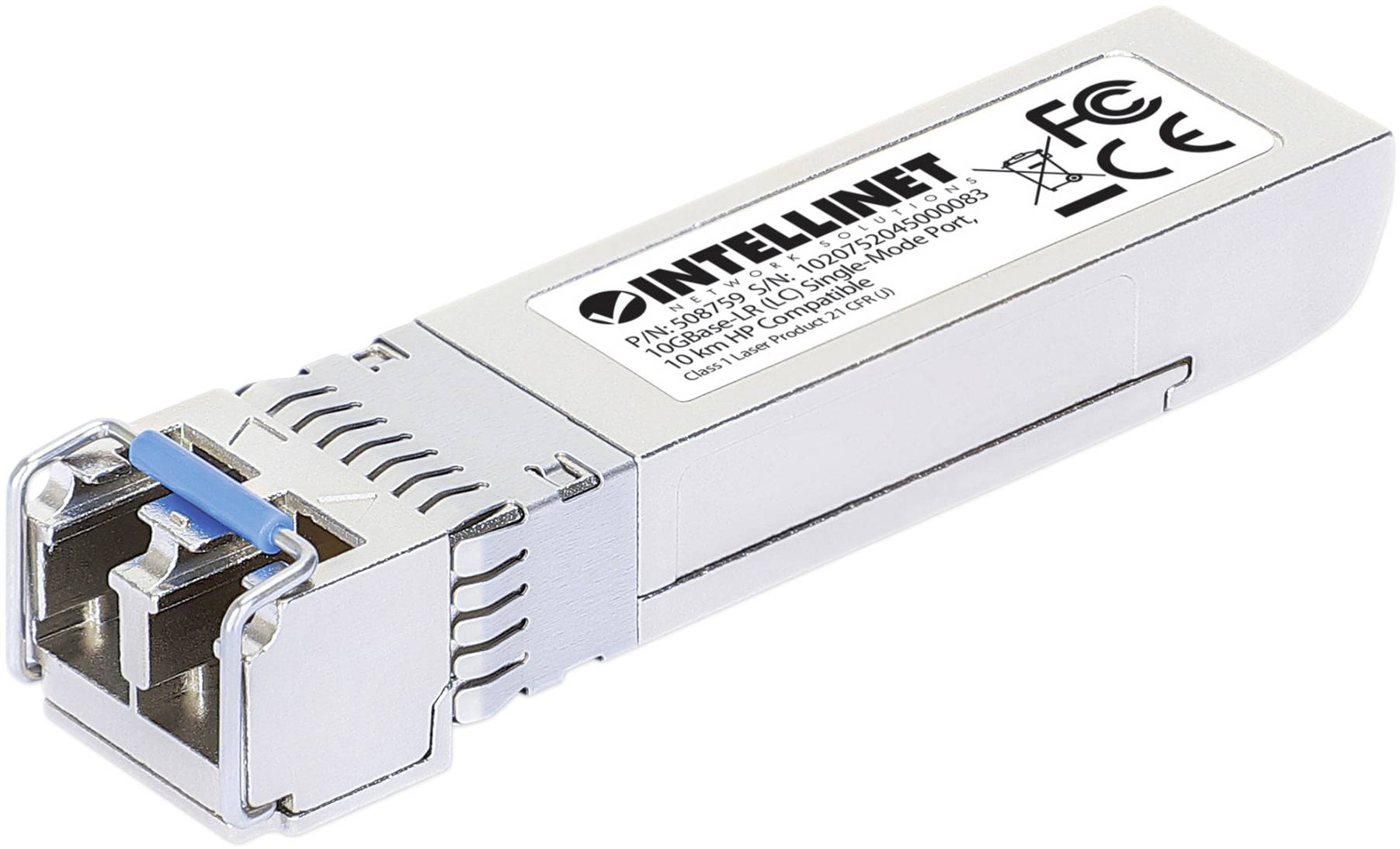

Intellinet 10 Gigabit SFP+ module / mini-GBIC transceiver for fiber optic cable 10GBase-LR (LC) single mode port 10 km HPE-compatible silver
Highlights & Details
- Compatible with HPE (Hewlett Packard Enterprise) switches and routers
- Data transfer rate 10 Gbps
- A 10GBASE-LR single mode LC duplex port for fiber optic cable
- Supported fiber optic range: Up to 10 km
- Wavelength 1310 nm
Technical specifications
- Product type
Transceiver board
- Transfer rate
10 GBit/s
- Module type
LR
- Distances up to
10 km
- LAN transfer rate
10000 MBit/s
- Weight
0.04
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3338810 Intellinet 508759 Mini-GBIC Transceiver für LWL-Kabel 10GBase-LR (LC) Singlemode 10km HPE-komp. Transceiver board 10 GBi
Description
SFP+ module, HP / HPE-compatible, 10GBASE-LR (LC) single mode with favorable premium performance

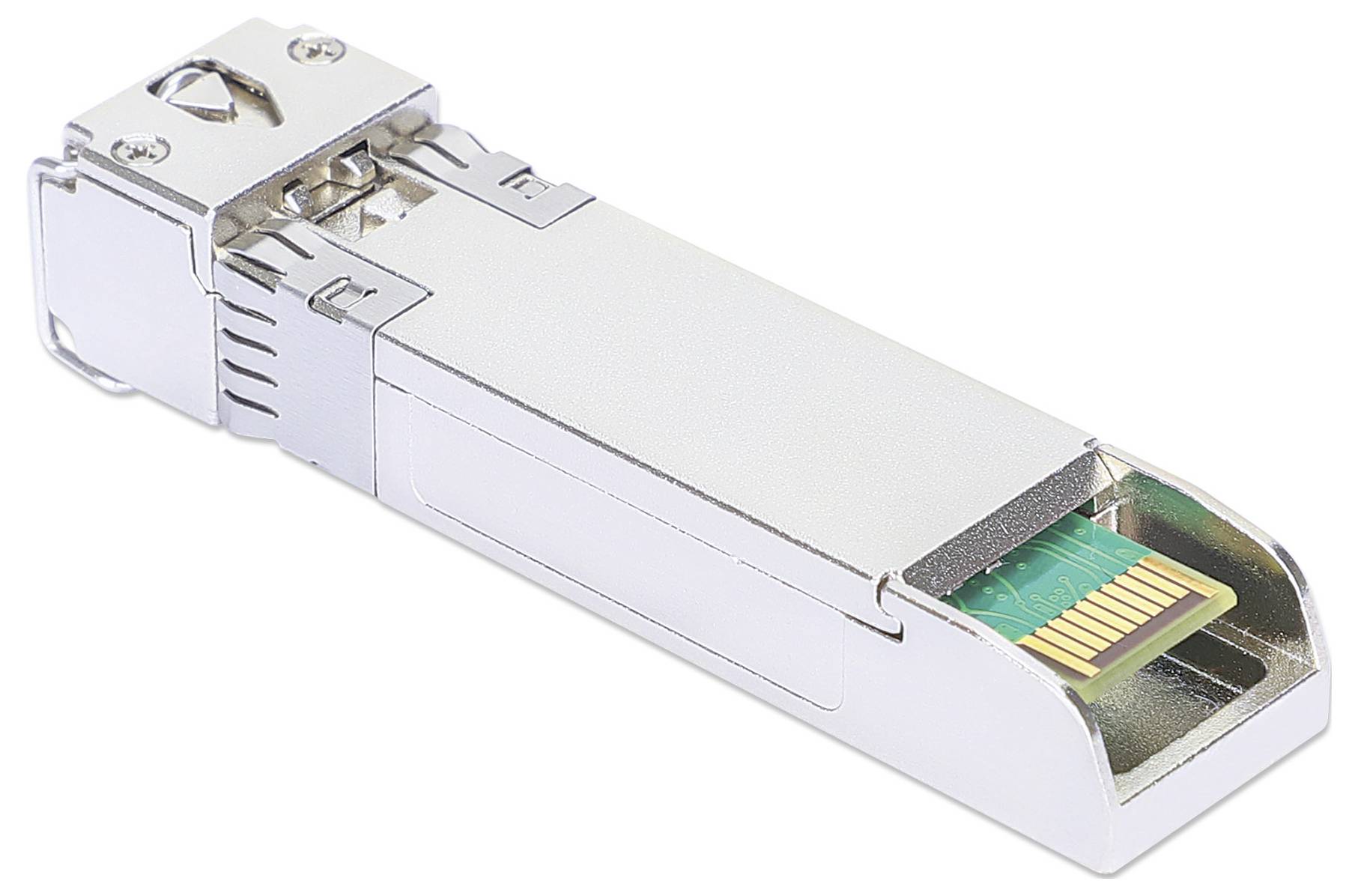

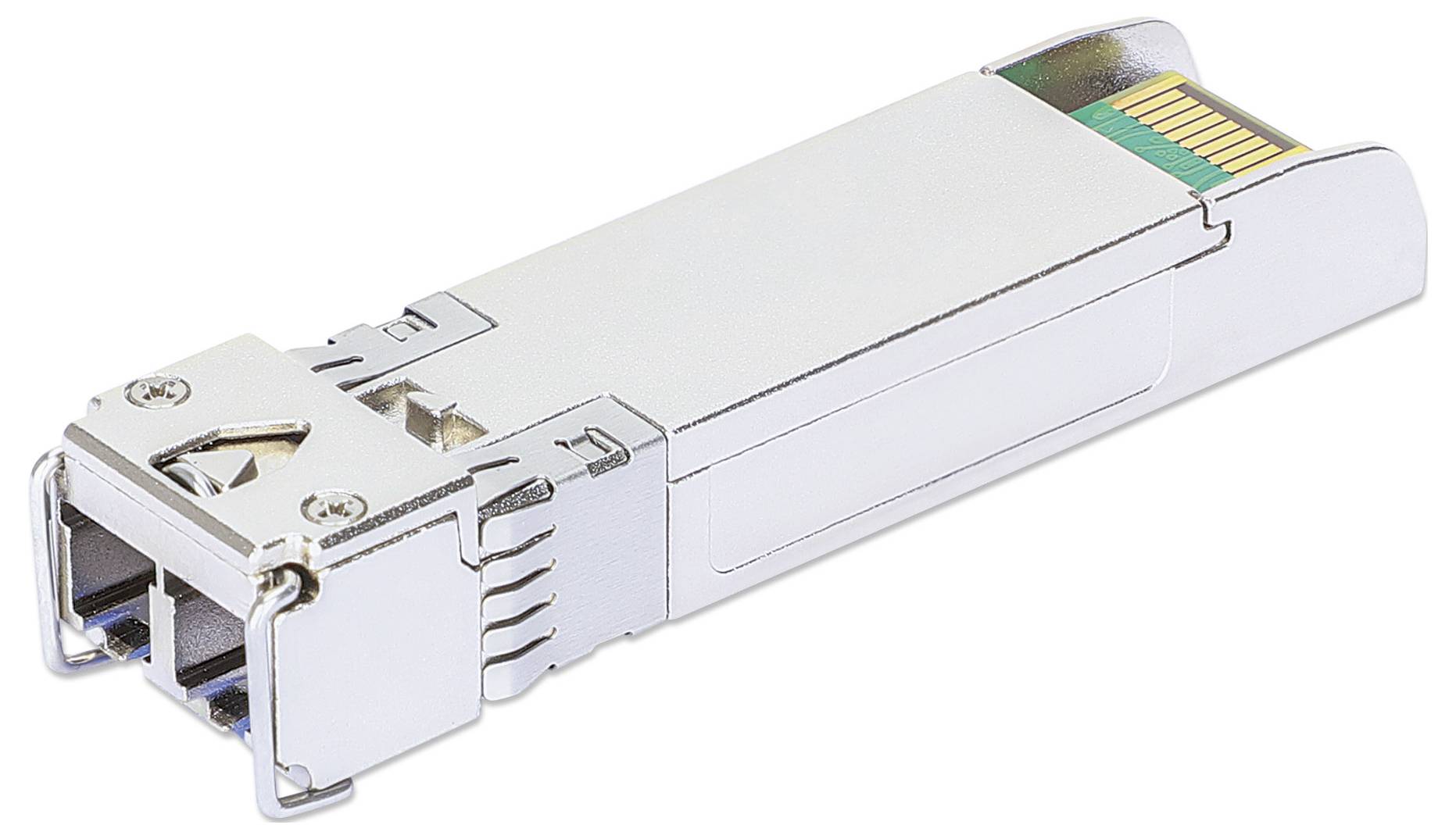

The small form factor pluggable (SFP) transceiver from Intellinet network solutions offers an excellent price-performance ratio. The metal housing reduces electromagnetic interference and guarantees a long life.
10G connectivity
This module is the right choice when connecting two buildings at 10 GbE speed via single-mode fiber. The 10 Gbps connection has a range of up to 10 km.
Compact format for tightly plugged glass fiber connections
The mini GBIC (Gigabit Interface Converter) form factor provides a minimum of space requirement. This makes it Ideal for environments with many fiber optic connections at the same time.
Compatible with HP / HPE
Compatibility is critical to your network - due to proper compliance, you can use this transceiver with Hewlett Packard Enterprise switches and routers. It will send the appropriate manufacturer part numbers J9151A / J9151D / JD94A / JD94B to your HPE devices.
Hot-pluggable
You do not need to turn off your LAN switch to install or disconnect the transceiver. It makes adjustments to your network comfortable and simple.

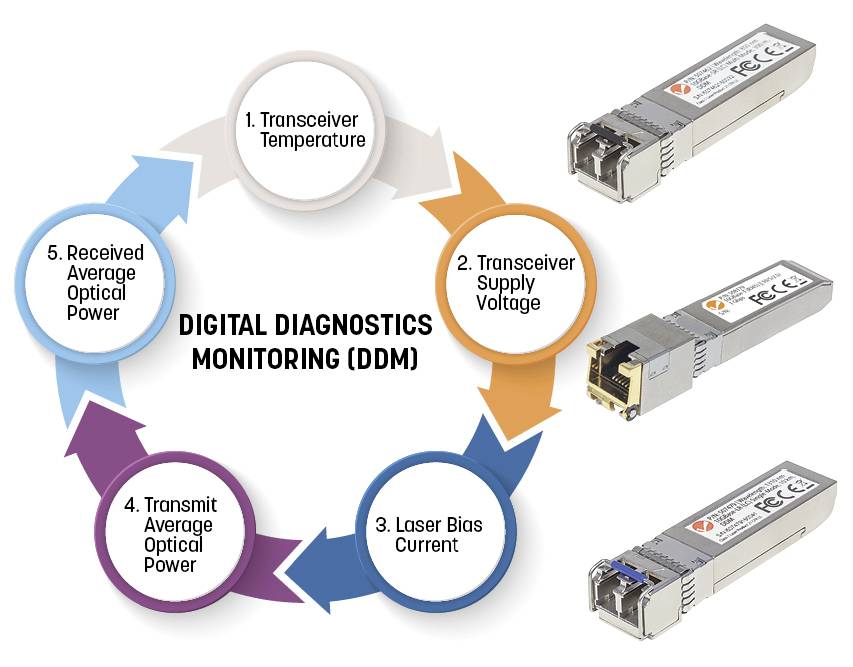

Digital Diagnostics Monitoring (DDM)
This SFP module supports digital diagnostic monitoring (DDM) functions, also known as Digital Optical Monitoring (DOM). Allows you to monitor parameters of the SFP in real time, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
This text is machine translated.
The small form factor pluggable (SFP) transceiver from Intellinet network solutions offers an excellent price-performance ratio. The metal housing reduces electromagnetic interference and guarantees a long life.
10G connectivity
This module is the right choice when connecting two buildings at 10 GbE speed via single-mode fiber. The 10 Gbps connection has a range of up to 10 km.
Compact format for tightly plugged glass fiber connections
The mini GBIC (Gigabit Interface Converter) form factor provides a minimum of space requirement. This makes it Ideal for environments with many fiber optic connections at the same time.
Compatible with HP / HPE
Compatibility is critical to your network - due to proper compliance, you can use this transceiver with Hewlett Packard Enterprise switches and routers. It will send the appropriate manufacturer part numbers J9151A / J9151D / JD94A / JD94B to your HPE devices.
Hot-pluggable
You do not need to turn off your LAN switch to install or disconnect the transceiver. It makes adjustments to your network comfortable and simple.
Digital Diagnostics Monitoring (DDM)
This SFP module supports digital diagnostic monitoring (DDM) functions, also known as Digital Optical Monitoring (DOM). Allows you to monitor parameters of the SFP in real time, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
This text is machine translated.
Features
- Standards
- IEEE 802.3z (Fibre Optic Gigabit Ethernet)
- IEEE 802.3ae (Fiber Optic 10 Gigabit Ethernet)
- General
- Media supported: 10GBASE-LR singlemode fiber
- LC duplex port connection
- Range: 10 km with 9/125 µm cable
- Wavelength 1310 nm
- Fiber Power budget:
- - Maximum TX Power: -0.5 dB
- - Minimum TX Power: -6 dB
- - Sensitivity: -15 dB
- - Power budget: 9 dB
- SFP+ (Enhanced Small Form-Factor Pluggable)
- SFF-8472 Diagnostic Monitoring Interface for optical transceivers
- FCC Class B, CE, IEC-60825, RoHS
- Power Supply
- Voltage: 3.3 V
- Power consumption: 1.0 W (max.)
- Physical details
- Dimensions (L x W x H) 57 x 14 x 12 mm
- Weight: 20g
- Physical details
- Operating ambient temperature 0 - 70°C.
- Operating humidity: 10 - 85% RH, non-condensing
- Ambient temperature during storage -40 - 85°C.
