Intellinet 510493 LAN, SFP Network media converter 1 GBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)

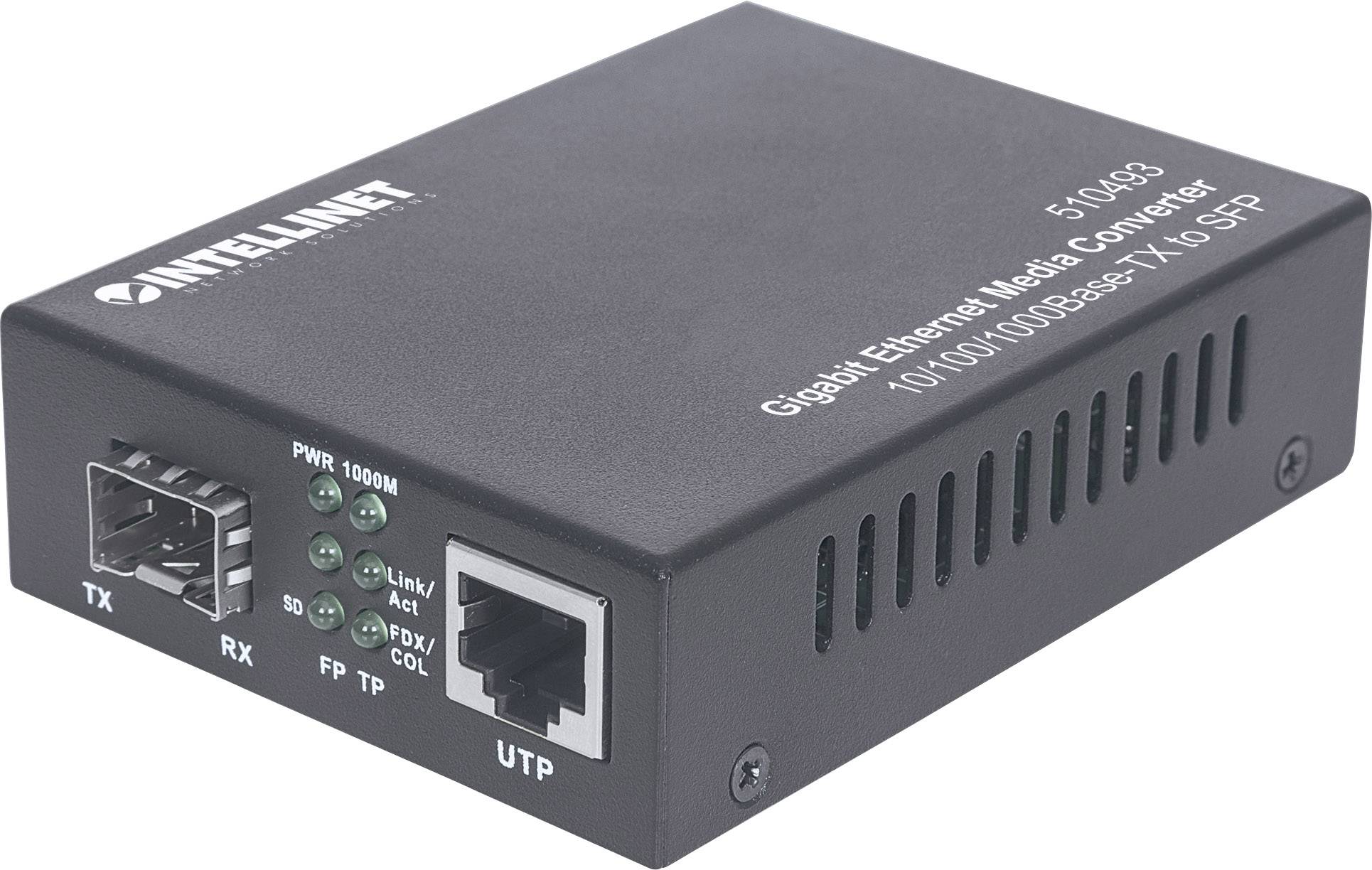

Intel Lint Gigabit Ethernet SFP media converter on
Highlights & Details
- Data transfer rate: 1000 Mbit/s
- 10/100/1000Base-T auto-sensing RJ45 port, maximum range 100 m (Cat5e or higher)
- RJ45 port with Auto MDI/MDI-X support
- SFP port for optical transceiver modules (SFP module is not included in the delivery)
- Port for mini GBIC 1.25 G SFP modules Gigabit multimode or single-mode

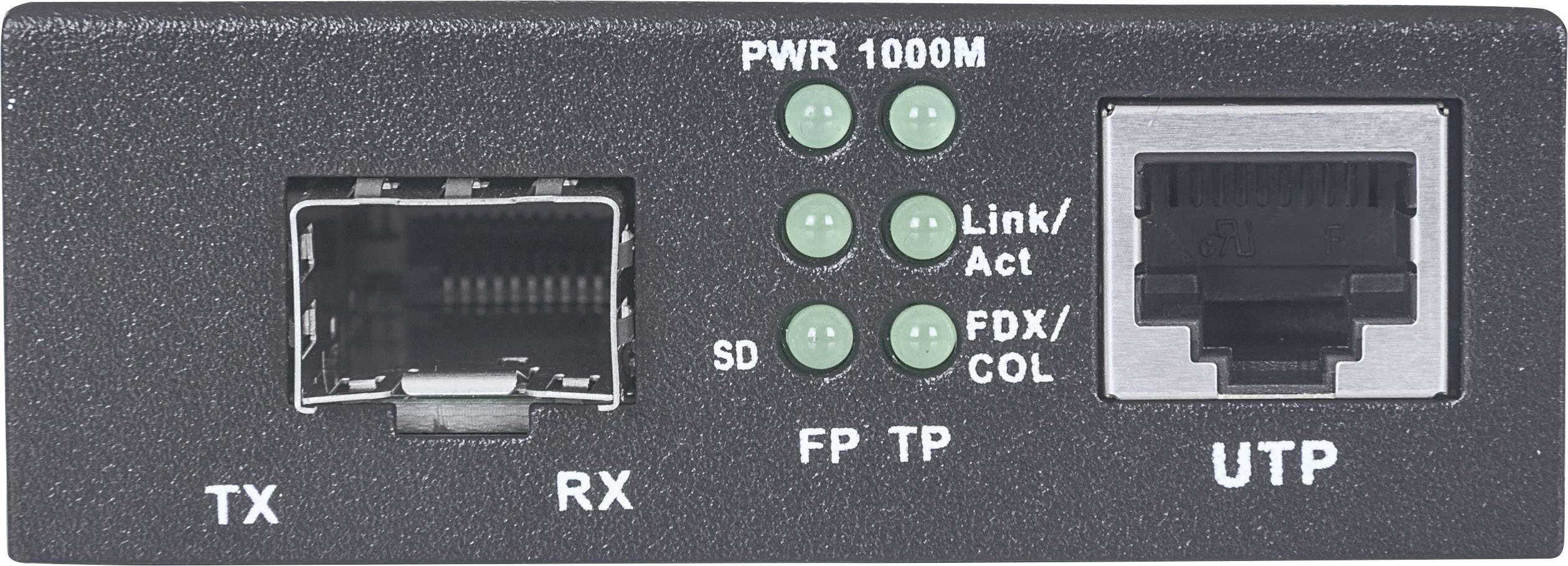

- Status LEDs for power and Link/TX for both ports
- Can be used as an independent converter or with the 14-slot media converter housing, model 507356
Technical specifications
- Product type
Network media converter
- Interfaces
1x LAN (10/100/1000 Mbps)
1x SFP
- Link
LAN
SFP
- Transfer rate
1 GBit/s
- Length
70 mm
- Width
96 mm
- Height
26 mm
- Weight
327 g
- LAN transfer rate
1000 MBit/s
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1437185 Intellinet 510493 LAN, SFP Network media converter 1 GBit/s
User & Safety Instructions
User & Safety Instructions 1437185 Intellinet 510493 LAN, SFP Network media converter 1 GBit/s
Description
The Intellinet media converter integrated optical fiber cable into an existing copper cable network for a LAN upgrade with low cost and effort. He works transparent - the power and functionality remain unchanged, the network is merely the support of two media-copper and fiber-optic expanded.
Higher range
Due to the fiber-optic support, even the remotest workgroups in your network. Without the need for additional access points are easily building-to-building connections are possible.
Flexibility in the cabling
Due to its compact design, this converter in both desktop applications with limited space as well as in wall distributors can be used. Several converter can also be in a intellinet 19" Media Converter Housing.
This text is machine translated.
Higher range
Due to the fiber-optic support, even the remotest workgroups in your network. Without the need for additional access points are easily building-to-building connections are possible.
Flexibility in the cabling
Due to its compact design, this converter in both desktop applications with limited space as well as in wall distributors can be used. Several converter can also be in a intellinet 19" Media Converter Housing.
This text is machine translated.
Scope of delivery
- Gigabit Ethernet media converter
- Power supply unit
- Manual
