Intellinet 510530 SC Duplex Network media converter 100 MBit/s
EAN:
Part number:
Item no:

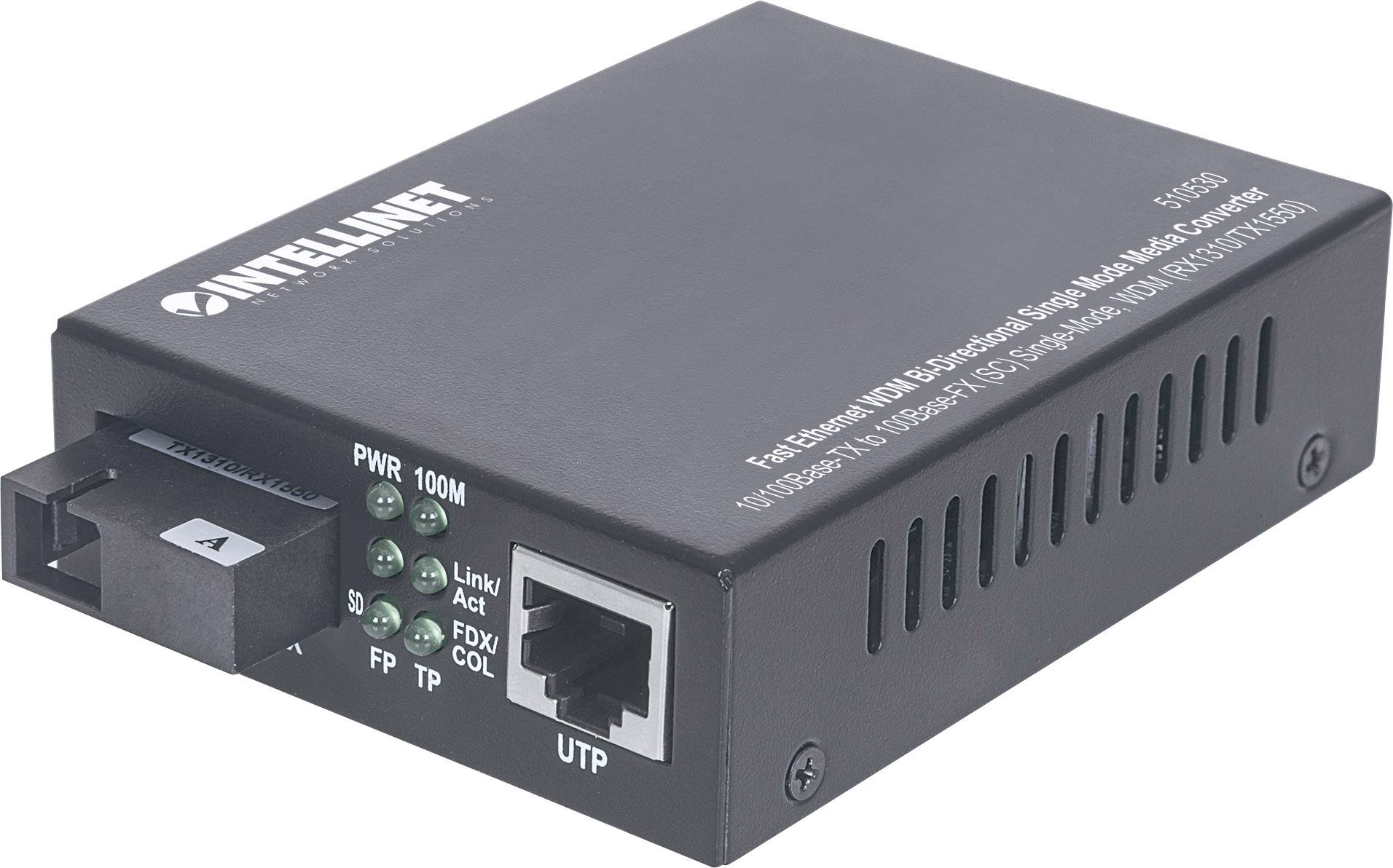

Intellinet Fast Ethernet WDM bi-directional single-mode media converter
Highlights & Details
- SC port (single mode) with bi-directional transmission allows a range of up to 20 km
- Requires the use with Fast Ethernet media converter, model 510547 WDM bi-directional Single Mode
- Data transfer rate: 100 Mbit/s
- WDM technology (wave length division multiplexing) uses only a fiber for data transmission and reception on separate WAVELENGTHS
- Shaft lengths: Receive (RX), transmit (TX), 1550 nm 1310 nm;

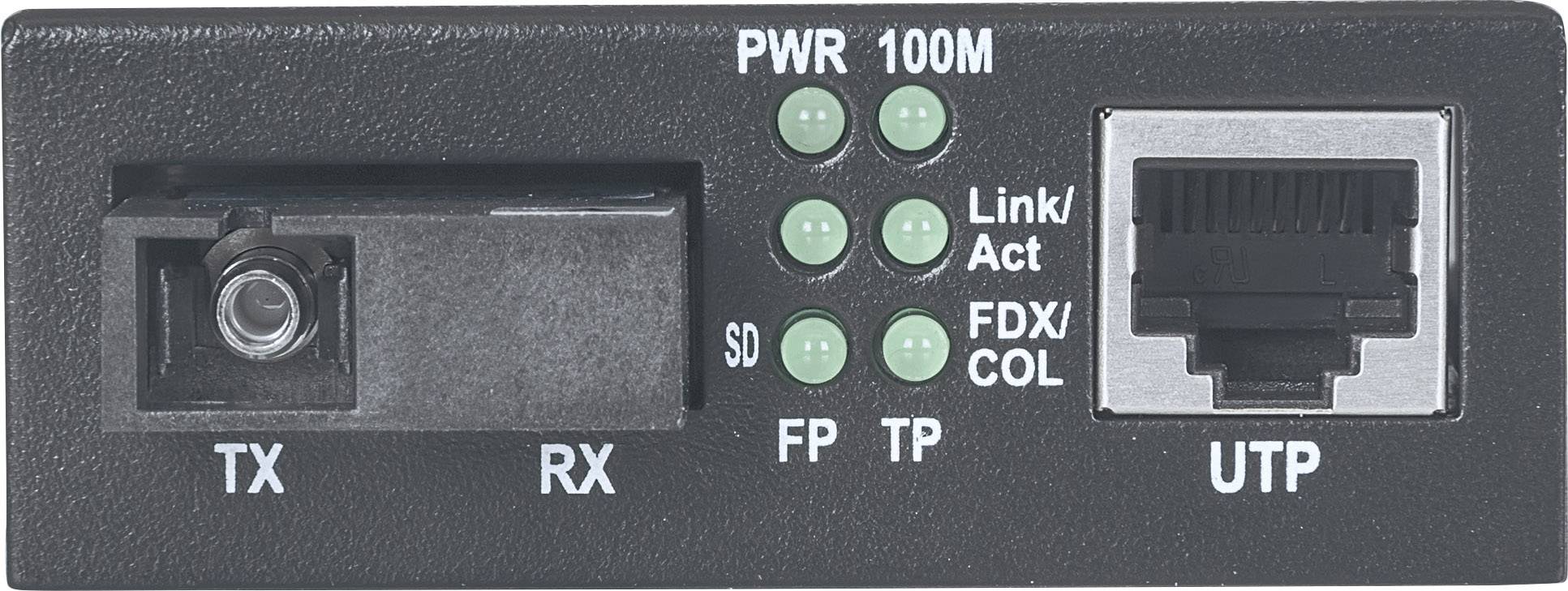

- 10/100Base-TX RJ-45 port: Maximum Range 100 m (Cat5e or higher)
- RJ-45 port with Auto MDI/MDI-X support
- 100Base-FX Single Mode SC-Port
- LEDs for device status
- Can be used as an independent converter or with the 14-slot media converter housing, model 507356

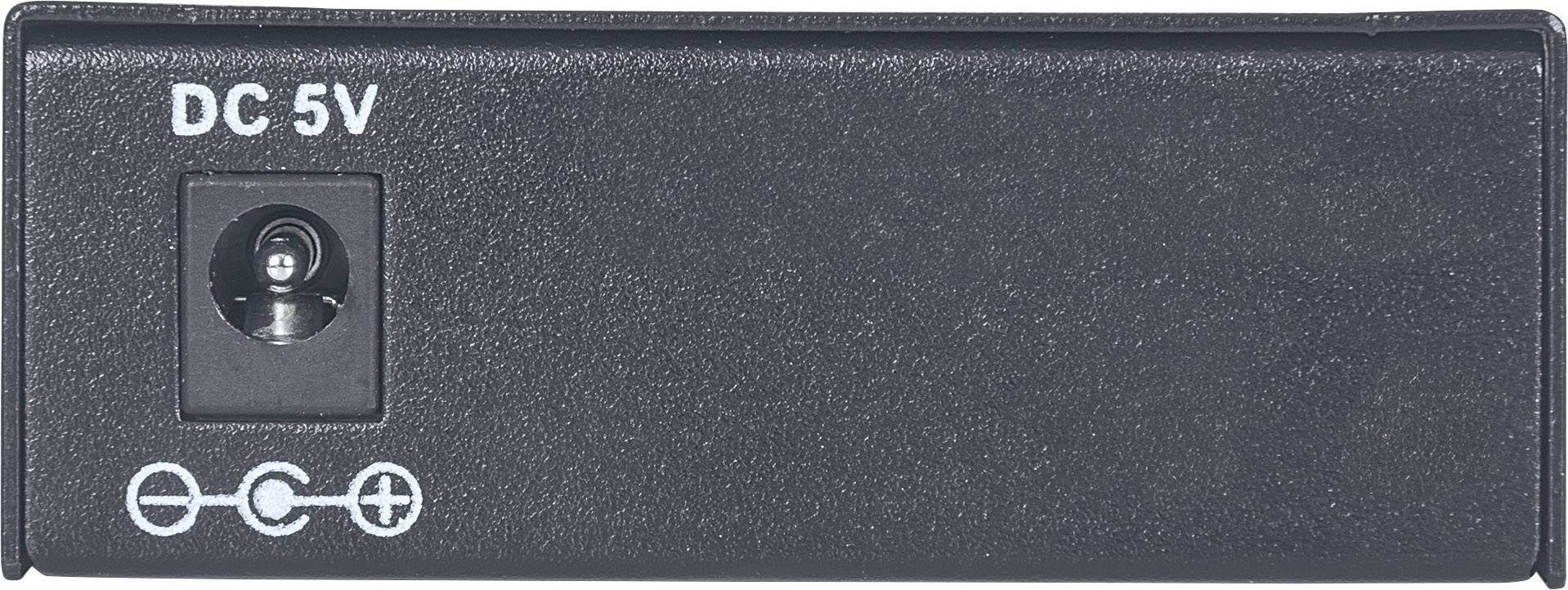

- External power supply, 5 V
Technical specifications
- Product type
Network media converter
- Interfaces
1x LAN (10/100 Mbps)
1x SC Duplex
- Link
SC Duplex
- Transfer rate
100 MBit/s
- Length
69 mm
- Width
105 mm
- Height
25 mm
- Weight
0.21
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1437187 Intellinet 510530 SC Duplex Network media converter 100 MBit/s
Description
The Intellinet media converter integrated optical fiber cable into an existing copper cable network for a LAN upgrade with low cost and effort. He works transparent - the power and functionality remain unchanged, the network is merely the support of two media-copper and fiber-optic expanded.
Higher range
Due to the fiber-optic support, even the remotest workgroups in your network. Without the need for additional access points are easily building-to-building connections are possible.
Many advantages with WDM technology
The WDM technology (wave length division multiplexing) in this converter model uses only one fiber for data transmission and reception on separate wavelengths. You can use it to more favorable simplex instead Duplex cables so that installation costs.
Flexibility in the cabling
Due to its compact design, this converter in both desktop applications with limited space as well as in wall distributors can be used. Several converter can also be in a intellinet 19" Media Converter Housing.
This text is machine translated.
Higher range
Due to the fiber-optic support, even the remotest workgroups in your network. Without the need for additional access points are easily building-to-building connections are possible.
Many advantages with WDM technology
The WDM technology (wave length division multiplexing) in this converter model uses only one fiber for data transmission and reception on separate wavelengths. You can use it to more favorable simplex instead Duplex cables so that installation costs.
Flexibility in the cabling
Due to its compact design, this converter in both desktop applications with limited space as well as in wall distributors can be used. Several converter can also be in a intellinet 19" Media Converter Housing.
This text is machine translated.
Scope of delivery
- Fast Ethernet WDM bi-directional single-mode media converter
- Power supply unit
- User manual.
