Intellinet 561044 561044 Network switch 24 + 2 ports 1 GBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

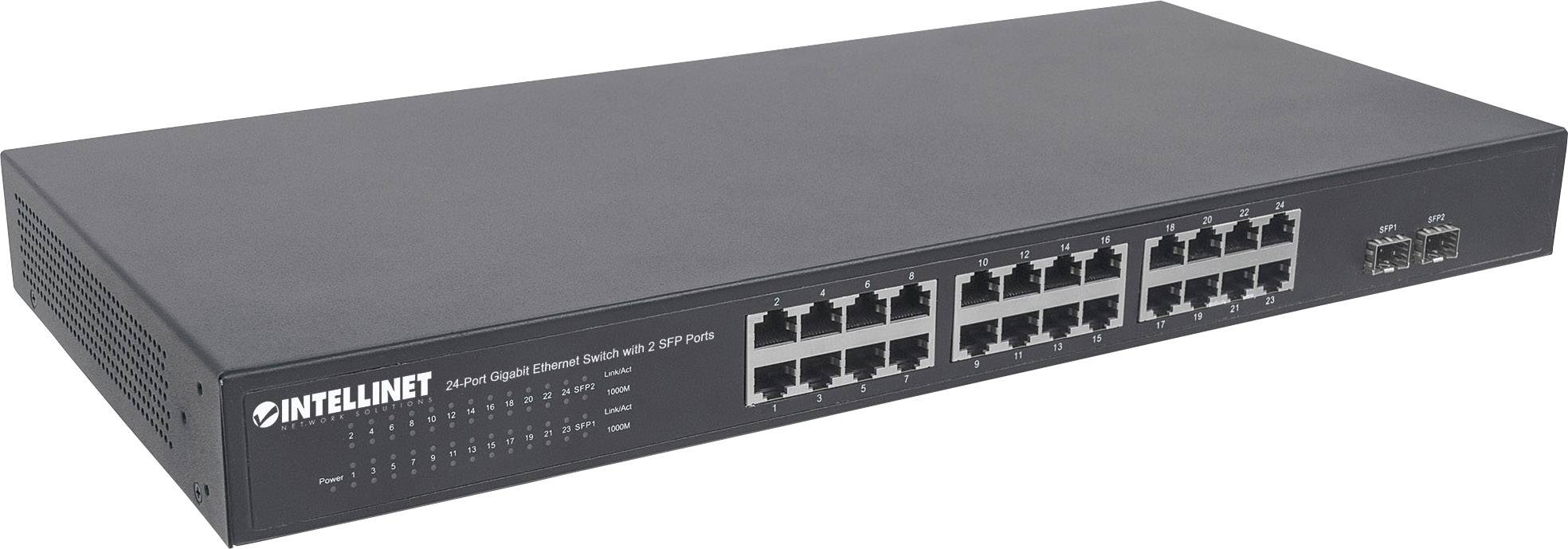

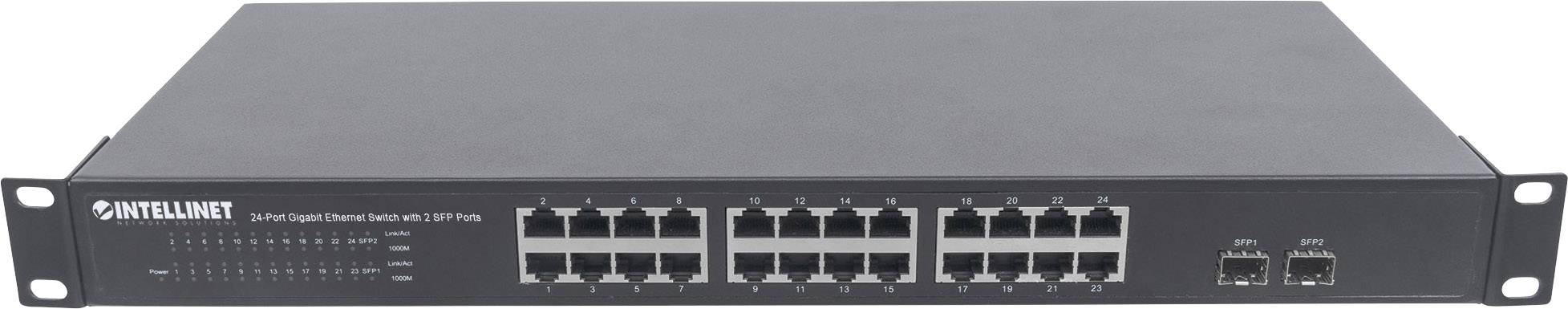

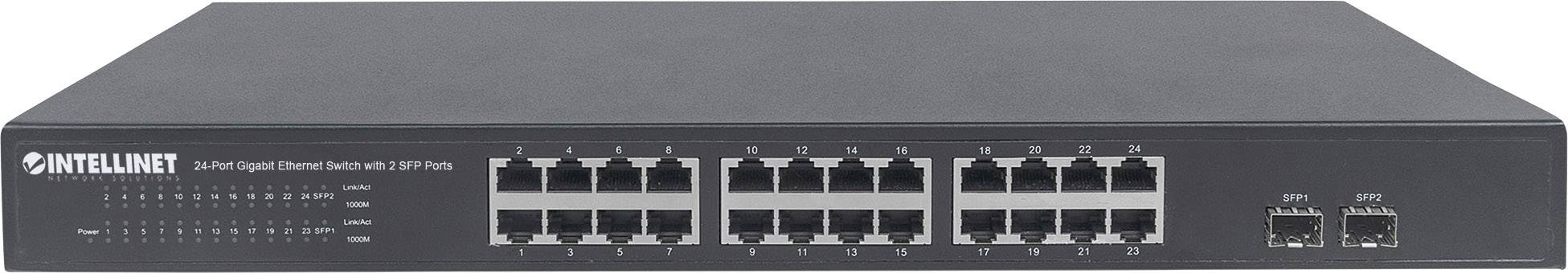

Intellinet 24-Port Gigabit Ethernet Switch with 2 SFP ports
- 24 x 10/100/1000 Mbit/s RJ45-Ports + 2X SFP
- IEEE 802.3az (energy-efficient Ethernet)
- 19" rack mount
- This text is machine translated.
Technical specifications
- Product type
Network switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
1 GBit/s
- SFP ports
2 x
- 10/100/1000 Mbps ports
24 x
- Weight
3 kg
- Width
440 mm
- Height
44 mm
- Depth
208 mm
- Type
561044
- Interfaces
RJ45
SFP
- Factory colour
Black
- Port
24 + 2 ports
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1483425 Intellinet 561044 561044 Network switch 24 + 2 ports 1 GBit/s
User & Safety Instructions
User & Safety Instructions 1483425 Intellinet 561044 561044 Network switch 24 + 2 ports 1 GBit/s
Description
Features
- 10/100/1000 auto-sensing ports automatically detect the optimal network speed.
- Two GBIC module slots (SFP)
- All RJ45-Ports Support Auto-MDIX (Auto Uplink)
- It supports NWAY Auto-Negotiation
- Store-and-forward architecture
- Full/half duplex mode
- Corresponds to the specification IEEE 802.3az (energy-efficient Ethernet EEE).
- The power-saving, Green Ethernet technology disabled unused ports and adjusts the energy level corresponding to the cable length to
- Supports 802.3x flow control for full duplex and back pressure for half duplex
- Supports Jumbo frames up to 9 KB
- 512 KB buffer storage
- Supports up to 8,000 MAC address entries
- 19" mounting angle included
- Supports MAC Address Auto-learning and auto-aging
Scope of delivery
- Gigabit Ethernet Rack Mount Switch
- Power Cables
- 19" mounting bracket
- User manual.
