Intellinet 561198 561198 Network switch 16 ports PoE
EAN:
Part number:
Item no:
Datasheet (PDF)

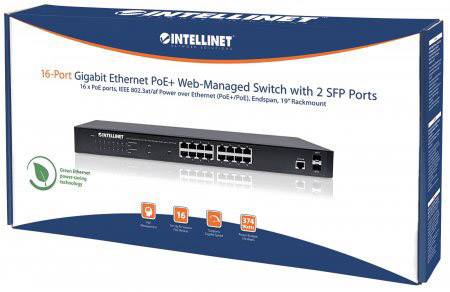

IC Intracom INT 561198 Switch 16-Port Gigabit Ethernet PoE+ Web-Managed
Highlights & Details
- Power and data connection for up to 16 PoE network devices.
- Saves installation costs through the transmission of data and power via the existing network cable
- 10/100/1000 auto-sensing ports automatically detect the optimal network speed.
- Two GBIC module slots (SFP)
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ Outputs
- Output power up to 30 watts per port
- This text is machine translated.
Technical specifications
- Product type
Network switch
- IEEE 802.3af PoE
16
- PoE ports
16
- SFP ports
2 x
- 10/100/1000 Mbps ports
16 x
- Router features
PoE
- Power supply (LOV)
mains-powered
- MAC addresses
8000
- Weight
2500 g
- Width
440 mm
- Height
44 mm
- Depth
208 mm
- Type
561198
- Interfaces
RJ45
SFP
- Factory colour
Multicolour
- Port
16 ports
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1668750 Intellinet 561198 561198 Network switch 16 ports PoE
User & Safety Instructions
User & Safety Instructions 1668750 Intellinet 561198 561198 Network switch 16 ports PoE
Description
Features
- PoE power budget 374 Watt
- 36 Gbit/s switch fabric
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (Wireless Access Points, with VoIP telephones and IP cameras)
- It supports IEEE 802.3at/af-detection as well as protection against short circuit, overload and voltage
- All RJ45-Ports Support Auto-MDIX and NWay Auto-Negotiation
- Corresponds to the specification IEEE 802.3az (energy-efficient Ethernet EEE).
- PoE management includes PoE-port settings, priority, switch-on delay, switch-on schedule for the PoE device restart and PoE devices monitoring
- SNMP management and remote monitoring (RMON)
- SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
- IPv4/v6 Dual Protocol
- Supports VLAN (day and port-based)
- Offers IEEE 802.1x port-based security
- Supports Link Aggregation (trunking)
- Supports Port based bandwidth control
- Supports Port Mirroring
- Supports two types of port-based and DSCP QoS:
- Broadcast Storm Control with multicast packet rate settings
- 512 KB buffer storage
- Supports 8,000 MAC address entries
- Supports Jumbo frames up to 9 KB
- Supports Rapid Spanning Tree/Spanning Tree Protocol
- Store-and-forward architecture
- Full/half duplex mode
- IEEE 802.3x flow control at full duplex
- Configuration via Web Browser, Telnet or SSH
- LEDs for power, Link/Activity and PoE
- Two high-performance fans provide for perfect cooling and air circulation
Scope of delivery
- 16-Port Gigabit Ethernet Switch with PoE+ Web-Managed 2 SFP ports
- Manual
- Power Cables
- Manual
- 19" mounting bracket
